Rancho RS5000X Shock Absorber for Ford F-150/F-250/Bronco/E-250/E-350
InfoVehicle Info Needed
RANCHOPART NUMBER: 801-RS55115

Rancho RS5000X Shock Absorber for Ford F-150/F-250/Bronco/E-250/E-350

$7515
More than 10 available
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Ford
RS5000X Shock Absorber
  • 1970-1991 Ford F-100, F-150, F-250, Bronco, E-250, E-350
  • 20.66 in. Extended, 12.87 in. Compressed
  • Gas Charged Twin-Tube
  • Steel
  • White
  • Sold Individually

    The RS5000X shock is built for 1970-1991 Ford F-100, F-150, F-250, Bronco, E-250, E-350. A 2.25 in. steel body, 0.62 in. nitro-carburized rod and 150 PSI nitrogen charge help control fade, with 7.79 in. of travel between 12.87 in. and 20.66 in.

    Rancho RS55115 Shock Absorber Features:

    • Fits 1978-1979 Ford Bronco, 1975-1991 Ford E-250 Econoline, 1975-1991 Ford E-250 Econoline Club Wagon, 1975-1991 Ford E-350 Econoline
    • Also fits 1977-1991 Ford E-350 Econoline Club Wagon, 1970-1979 Ford F-100 4WD/2WD, 1975-1979 Ford F-150 4WD/2WD, 1970-1979 Ford F-250 2WD
    • Measures 20.66 in. extended and 12.87 in. compressed for 7.79 in. of travel
    • Stem upper mount and loop bushing lower mount
    • 2.25 in. steel twin-tube body with 0.62 in. nitro-carburized piston rod
    • Cross Tuned rebound valving and progressive engagement valving tuned for each application
    • Nitrogen gas charge at 150 PSI limits aeration and damping fade
    • 35 mm sintered iron piston with fluon band and double-welded loops at stress points

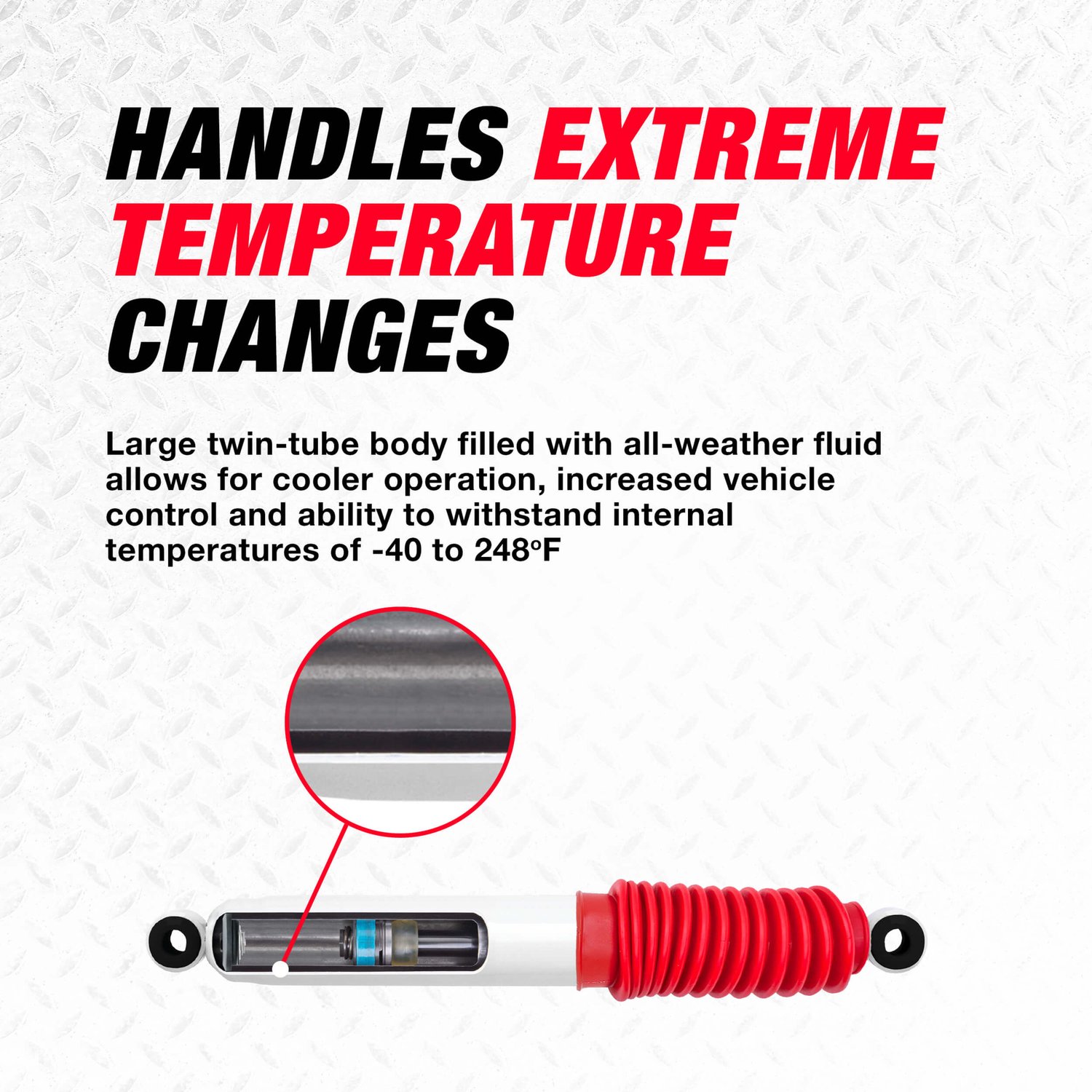

    • All-weather fluid handles internal temperatures from -40 to 248 degrees F
    • Mounting hardware included

    Rancho RS55115 Installation Notes:

    • RS8125 axle shim kit may be required on the rear axle for shock-to-axle clearance, sold separately
    • Improve Your Suspension Performance

      Rancho RS5000X Series Shock Absorbers feature an innovative valving system that improves the shock compression characteristics. Each shock is pressurized to 60 psi and is progressively valved. The double-welded ends and nitro-carburized rod gives you superior durability on and off the road.



    Part TypeShock Absorber
    Product LineRancho RS5000X Shocks
    BrandRANCHO
    Package Height3.1
    Package Width3.2
    Package Length24.1
    Weight5.07 PG
    Cylinder Outside Diameter2.25 in
    Body ColorWhite
    Bladder(S) IncludedNo
    Includes Bump StopNo
    Maximum Ride Height Lowering Distance0 in
    Hydraulic LockoutNo
    Adjustable Ride HeightNo
    Spring IncludedNo
    New Or RemanufacturedNew
    Active Or Passive SuspensionPassive
    Body Diameter2.25 in
    Extended Length524.8 mm
    Self-LevelingNo
    Shock Absorber Body End Measuring PointBase of Stem
    Boot IncludedNo
    Lower Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
    Bearing Plate IncludedNo
    ColorWhite
    Air Ride SuspensionNo
    Strut Mount Insulator(S) IncludedNo
    Internal Construction TypeTwin Tube
    Upper Mount TypeStem Mount - 2.3/8 in. Stem Length X 3/8 in.-16 Thread Pitch
    Lower Mount CodeL1
    Adjustable ReboundNo
    Adjustable DampingNo
    Adjustable CompressionNo
    Valving TypeProgressive
    Part CategoryPerformance Parts
    Internal Rebound SpringNo
    Gas ChargedYes
    Rod Diameter15.8 mm
    Bladder Heavy Duty Crimping Rings IncludedNo
    Cylinder ColorWhite
    Cylinder FinishPainted
    Spring Isolators IncludedNo
    Shock Absorber Rod End Measuring PointCenter of Loop
    Shock Absorber Bore Size35 mm
    Shock Stroke197.9 mm
    Shaft MaterialNitrocarburized
    Spring Seat IncludedNo
    Dust Shield IncludedNo
    Air AdjustableNo
    Internal Rebound BumperNo
    FinishPainted
    Bladder Sleeve(S) IncludedNo
    Remote ReservoirNo
    Compressed Length326.9 mm
    Parts Pack(S)P01134,P00910
    QuantitySold Individually
    Mounting Hardware IncludedYes
    Coil Over Springs IncludedNo
    TypeTelescopic
    Body MaterialSteel
    Coil Spring Insulator(S) IncludedNo
    Travel Length197.9 mm
    Upper Mount CodeS4
    Cylinder MaterialSteel
    Part FitmentDirect Fit
    Maximum Ride Height Raising Distance0 in
    Grade TypePerformance
    Vendor Part NumberRS55115
    Package Qty1
    Package TypeEA
