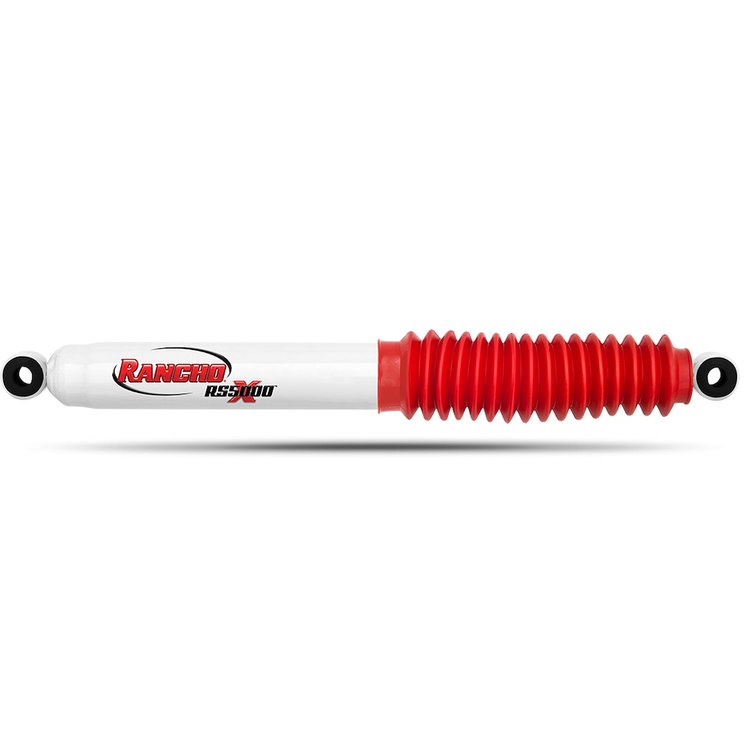

RS5000X Rear Shock Absorber Fits multiple GM, Dodge, Ford, Jeep for Nissan and Toyota
InfoVehicle Info Needed
RANCHOPART NUMBER: 801-RS55116

RS5000X Rear Shock Absorber Fits multiple GM, Dodge, Ford, Jeep for Nissan and Toyota

$7193
ShippingShips on Nov 24, 2026
Lowest PriceLowest Price Guarantee

Semi-Universal
RS5000X Rear Shock Absorber
  • 1974-2016 Ford F-150, F-250, F-350, Nissan Frontier, Xterra
  • For 0-2.5 in. Lift
  • 24.05 in. Extended, 14.86 in. Compressed
  • Gas Charged Twin-Tube
  • Steel
  • White
  • Sold Individually

    This white RS5000X rear shock absorber suits 1974-2016 Ford F-150, F-250, F-350, Nissan Frontier, Xterra with 0-2.5 in. of lift. It travels 9.19 in. from 14.86 in. compressed to 24.05 in. extended and uses Cross Tuned valving that adjusts damping to road conditions.

    Rancho RS55116 Shock Absorber Features:

    • Fits 1975-1980 Plymouth PB300, 1981-1983 Plymouth PB350, 1974 Plymouth PB300 Van, 1992-1995 Chevy G30, 1992-1995 GMC G3500, 1997 Ford F-250 HD 2WD
    • Also fits 1980-1996 Ford F-150 4WD, 1980-1996 Ford F-250 4WD/2WD, 1987-1997 Ford F-350 4WD, 2005-2016 Ford F-450 Super Duty, 2005-2016 Ford F-550 Super Duty
    • Also fits 1998-2004 Nissan Frontier 4WD/2WD, 2000-2004 Nissan Xterra
    • Sized for 0-2.5 in. of rear lift
    • Application notes: for models with Dual Rear Wheels (DRW), Single Rear Wheels (SRW); not for models with 4,000 lbs. front axle, 9,000 lbs. GVW, Attitude Ride Height Improvement Package
    • Measures 24.05 in. extended and 14.86 in. compressed for 9.19 in. of travel
    • Loop bushing mounts at both ends
    • 2.25 in. steel twin-tube body with 0.62 in. nitro-carburized piston rod
    • Cross Tuned rebound valving and progressive engagement valving tuned for each application
    • Nitrogen gas charge at 150 PSI limits aeration and damping fade
    • Includes red protective boot and internal polyurethane rebound bumper
    • Mounting hardware included

    Rancho RS55116 Installation Notes:

    • On some applications the shock bushing inside diameter is smaller than the mounting pin; lubricate the bushing and allow extra effort for installation
    • RS8125 axle shim kit may be required on the rear axle for shock-to-axle clearance, sold separately
    • Improve Your Suspension Performance

      Rancho RS5000X Series Shock Absorbers feature an innovative valving system that improves the shock compression characteristics. Each shock is pressurized to 60 psi and is progressively valved. The double-welded ends and nitro-carburized rod gives you superior durability on and off the road.



    Part TypeShock Absorber
    Product LineRancho RS5000X Shocks
    BrandRANCHO
    Package Height3.1
    Package Width3.3
    Package Length24.1
    Weight5.36 PG
    Cylinder Outside Diameter2.25 in
    Body ColorWhite
    Bladder(S) IncludedNo
    Includes Bump StopNo
    Maximum Ride Height Lowering Distance0 in
    Hydraulic LockoutNo
    Adjustable Ride HeightNo
    Spring IncludedNo
    New Or RemanufacturedNew
    Active Or Passive SuspensionPassive
    Body Diameter2.25 in
    Extended Length610.9 mm
    Self-LevelingNo
    Shock Absorber Body End Measuring PointCenter of Loop
    Dust Shield MaterialRubber
    Boot IncludedYes
    Lower Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
    Bearing Plate IncludedNo
    ColorWhite
    Air Ride SuspensionNo
    Strut Mount Insulator(S) IncludedNo
    Internal Construction TypeTwin Tube
    Upper Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
    Lower Mount CodeL1
    Dust Shield ColorRed
    Adjustable ReboundNo
    Adjustable DampingNo
    Adjustable CompressionNo
    Valving TypeProgressive
    Part CategoryPerformance Parts
    Internal Rebound SpringNo
    Dust Shield Diameter2.99 in
    Gas ChargedYes
    Rod Diameter15.8 mm
    Bladder Heavy Duty Crimping Rings IncludedNo
    Cylinder ColorWhite
    Cylinder FinishPainted
    Spring Isolators IncludedNo
    Shock Absorber Rod End Measuring PointCenter of Loop
    Shock Absorber Bore Size1.3779527559055118 in
    Shock Stroke233.4 mm
    Shaft MaterialNitrocarburized
    Spring Seat IncludedNo
    Dust Shield IncludedYes
    Air AdjustableNo
    Internal Rebound BumperYes
    FinishPainted
    Bladder Sleeve(S) IncludedNo
    Remote ReservoirNo
    Compressed Length14.86 in
    Parts Pack(S)P00916
    QuantitySold Individually
    Mounting Hardware IncludedYes
    Coil Over Springs IncludedNo
    TypeTelescopic
    Body MaterialSteel
    Coil Spring Insulator(S) IncludedNo
    Travel Length9.19 in
    Upper Mount CodeL1
    Cylinder MaterialSteel
    Part FitmentDirect Fit
    Maximum Ride Height Raising Distance0 in
    Grade TypePerformance
    Vendor Part NumberRS55116
    Package Qty1
    Package TypeEA
