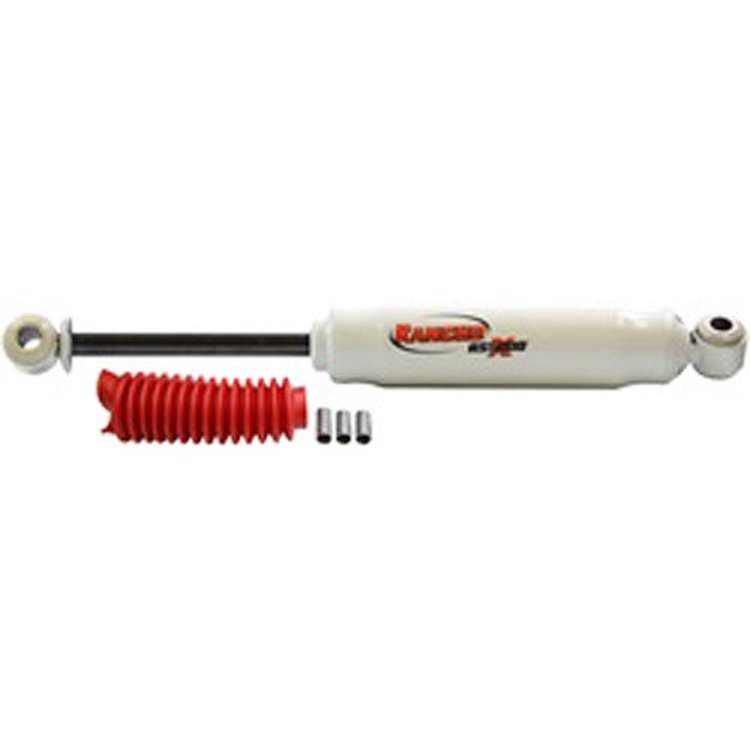

RS5000X Front Shock Absorber Fits Jeep CJ and Suzuki Samurai
InfoVehicle Info Needed
RANCHOPART NUMBER: 801-RS55119

RS5000X Front Shock Absorber Fits Jeep CJ and Suzuki Samurai

$7193
ShippingShips on Nov 24, 2026
Lowest PriceLowest Price Guarantee

Jeep/Suzuki
RS5000X Front Shock Absorber
  • 1943-1995 Jeep CJ5, Willys, Suzuki Samurai, Toyota Land Cruiser
  • Stock Ride Height
  • 18.04 in. Extended, 11.64 in. Compressed
  • Gas Charged Twin-Tube
  • Steel
  • White
  • Sold Individually

    The RS5000X front shock absorber is a gas-charged twin-tube unit for 1943-1995 Jeep CJ5, Willys, Suzuki Samurai, Toyota Land Cruiser at stock ride height. Progressive engagement valving softens low-speed impacts, while the 2.25 in. white steel body gives 6.4 in. of travel.

    Rancho RS55119 Shock Absorber Features:

    • Fits 1985-1995 Suzuki Samurai 4WD, 1961-1967 Dodge D300 Series, 1961-1967 Dodge W300 Series, 1968-1971 Dodge D300 Pickup, 1968-1969 Dodge W300 Pickup
    • Also fits 1943-1958 Jeep Willys, 1959-1966 Jeep CJ3, 1969-1973 Jeep Commando, 1959-1965 Jeep DJ3, 1965-1974 Jeep DJ5, 1969-1971 Jeep Jeepster, 1959-1975 Jeep CJ5
    • Also fits 1959-1975 Jeep CJ6, 1974 Jeep Wagoneer, 1966-1968 Jeep CJ5A, 1966-1968 Jeep CJ6A, 1973-1974 AM General FJ8, 1964-1983 Toyota Land Cruiser 4WD
    • Valved for stock front ride height
    • Measures 18.04 in. extended and 11.64 in. compressed for 6.4 in. of travel
    • Loop bushing mounts at both ends
    • 2.25 in. steel twin-tube body with 0.62 in. nitro-carburized piston rod
    • Cross Tuned rebound valving and progressive engagement valving tuned for each application
    • Nitrogen gas charge at 150 PSI limits aeration and damping fade
    • 35 mm sintered iron piston with fluon band and double-welded loops at stress points
    • Includes red protective boot and internal polyurethane rebound bumper
    • Mounting hardware included

    Rancho RS55119 Installation Notes:

    • On some applications the shock bushing inside diameter is smaller than the mounting pin; lubricate the bushing and allow extra effort for installation
    • Improve Your Suspension Performance

      Rancho RS5000X Series Shock Absorbers feature an innovative valving system that improves the shock compression characteristics. Each shock is pressurized to 60 psi and is progressively valved. The double-welded ends and nitro-carburized rod gives you superior durability on and off the road.



    Part TypeShock Absorber
    Product LineRancho RS5000X Shocks
    BrandRANCHO
    Package Height2.9
    Package Width4.9
    Package Length24.3
    Weight4.49 PG
    Extended Bumper StopNo
    Cylinder Outside Diameter2.25 in
    Body ColorWhite
    Bladder(S) IncludedNo
    Includes Bump StopNo
    Maximum Ride Height Lowering Distance0 in
    Hydraulic LockoutNo
    Compressed Bumper StopNo
    Adjustable Ride HeightNo
    Spring IncludedNo
    New Or RemanufacturedNew
    Active Or Passive SuspensionPassive
    Body Diameter57.2 mm
    Extended Length458.2 mm
    Self-LevelingNo
    Shock Absorber Body End Measuring PointCenter of Loop
    Dust Shield MaterialRubber
    Boot IncludedYes
    Lower Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
    Bearing Plate IncludedNo
    ColorWhite
    Air Ride SuspensionNo
    Strut Mount Insulator(S) IncludedNo
    Internal Construction TypeTwin Tube
    AdjustableNo
    Upper Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
    Lower Mount CodeL1
    Dust Shield ColorRed
    Adjustable ReboundNo
    Adjustable DampingNo
    Adjustable CompressionNo
    Collapsed Length11.77 in (298.958 mm)
    Valving TypeProgressive
    Part CategoryPerformance Parts
    Internal Rebound SpringNo
    Dust Shield Diameter2.99 in
    Gas ChargedYes
    Rod Diameter15.8 mm
    Bladder Heavy Duty Crimping Rings IncludedNo
    Cylinder ColorWhite
    Cylinder FinishPainted
    Spring Isolators IncludedNo
    Shock Absorber Rod End Measuring PointCenter of Loop
    Extended Hydraulic LockoutNo
    Shock Absorber Bore Size35 mm
    Shock Stroke6.26 in (159 mm)
    Shaft MaterialNitrocarburized
    Spring Seat IncludedNo
    Dust Shield IncludedYes
    Air AdjustableNo
    Internal Rebound BumperNo
    FinishPainted
    Bladder Sleeve(S) IncludedNo
    Remote ReservoirNo
    Compressed Length11.64 in
    Parts Pack(S)P00916,P00925
    Product GradeEconomy
    QuantitySold Individually
    Mounting Hardware IncludedYes
    Coil Over Springs IncludedNo
    TypeTelescopic
    Body MaterialSteel
    Coil Spring Insulator(S) IncludedNo
    Travel Length162.6 mm
    Upper Mount CodeL1
    Cylinder MaterialSteel
    Part FitmentDirect Fit
    Dust ShieldYes
    Maximum Ride Height Raising Distance0 in
    Grade TypePerformance
    Vendor Part NumberRS55119
    Package Qty1
    Package TypeEA
