Vehicle Info NeededRANCHOPART NUMBER: 801-RS55120

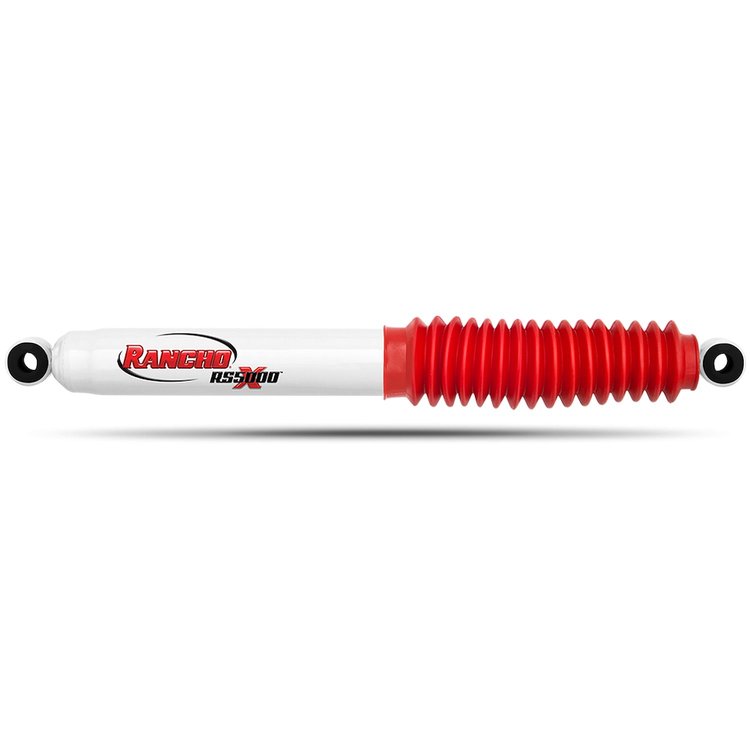

RS5000X Front Shock Absorber Fits 1967-1991 GM Fullsize Pickups and SUVs
$6799
2 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM
RS5000X Front Shock Absorber1963-1995 Chevy C10, C20, G10, GMC C1500, C2500, G1500 Van For 0-1.5 in. Lift 14.14 in. Extended, 9.86 in. Compressed Gas Charged Twin-Tube Steel White Sold Individually
This RS5000X front shock fits 1963-1995 Chevy C10, C20, G10, GMC C1500, C2500, G1500 Van with 0-1.5 in. of lift and pairs a white painted steel body with a 0.62 in. nitro-carburized rod. Extended length is 14.14 in. and compressed length is 9.86 in.
Rancho RS55120 Shock Absorber Features:
- Fits 1975 Jeep Wagoneer, 1963-1966, 1973-1974 Chevy C10 Pickup, 1963-1966, 1973-1974 Chevy C20 Pickup, 1963-1974 Chevy C30 Pickup, 1970-1972 Chevy G10 Van
- Also fits 1970-1974 Chevy G30 Van, 1970-1972 Chevy G20 Van, 1975-1986 Chevy C10, 1967-1986 Chevy C10 Suburban, 1975-1986 Chevy C20, 1967-1986 Chevy C20 Suburban
- Also fits 1975-1986 Chevy C30, 1991-1995 Chevy G10, 1991-1995 Chevy G20, 1975-1995 Chevy G30, 1987 Chevy R10, 1987-1988 Chevy R10 Suburban and other select applications
- Sized for 0-1.5 in. of front lift
- Measures 14.14 in. extended and 9.86 in. compressed for 4.28 in. of travel
- Loop bushing upper mount and loop bushing and sleeve lower mount
- 2.25 in. steel twin-tube body with 0.62 in. nitro-carburized piston rod
- Cross Tuned rebound valving and progressive engagement valving tuned for each application
- Nitrogen gas charge at 150 PSI limits aeration and damping fade
- 35 mm sintered iron piston with fluon band and double-welded loops at stress points
- Includes red protective boot and internal polyurethane rebound bumper
- Mounting hardware included
Improve Your Suspension Performance
Rancho RS5000X Series Shock Absorbers feature an innovative valving system that improves the shock compression characteristics. Each shock is pressurized to 60 psi and is progressively valved. The double-welded ends and nitro-carburized rod gives you superior durability on and off the road.
Part TypeShock Absorber
Product LineRancho RS5000X Shocks
BrandRANCHO
Package Height3.0
Package Width3.3
Package Length24.1
Weight5.4 PG
Cylinder Outside Diameter57.2 mm
Body ColorWhite
Bladder(S) IncludedNo
Includes Bump StopNo
Maximum Ride Height Lowering Distance0 in
Hydraulic LockoutNo
Adjustable Ride HeightNo
Spring IncludedNo
New Or RemanufacturedNew
Active Or Passive SuspensionPassive
Body Diameter57.2 mm
Extended Length359.2 mm
Self-LevelingNo
Shock Absorber Body End Measuring PointCenter of Loop
Dust Shield MaterialRubber
Boot IncludedYes
Lower Mount TypeLoop Bushing and Sleeve Mount - 1/2 in. Sleeve ID X 1.5/16 in. Sleeve OAL
Bearing Plate IncludedNo
ColorWhite
Air Ride SuspensionNo
Strut Mount Insulator(S) IncludedNo
Internal Construction TypeTwin Tube
Upper Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
Lower Mount CodeLS36
Dust Shield ColorRed
Adjustable ReboundNo
Adjustable DampingNo
Adjustable CompressionNo
Valving TypeProgressive
Part CategoryPerformance Parts
Internal Rebound SpringNo
Dust Shield Diameter2.99 in
Gas ChargedYes
Rod Diameter15.8 mm
Bladder Heavy Duty Crimping Rings IncludedNo
Cylinder ColorWhite
Cylinder FinishPainted
Spring Isolators IncludedNo
Shock Absorber Rod End Measuring PointCenter of Loop
Shock Absorber Bore Size35 mm
Shock Stroke4.28 in
Shaft MaterialNitrocarburized
Spring Seat IncludedNo
Dust Shield IncludedYes
Air AdjustableNo
Internal Rebound BumperYes
FinishPainted
Bladder Sleeve(S) IncludedNo
Remote ReservoirNo
Compressed Length250.4 mm
Parts Pack(S)P00915, P00916
QuantitySold Individually
Mounting Hardware IncludedYes
Coil Over Springs IncludedNo
TypeTelescopic
Body MaterialSteel
Coil Spring Insulator(S) IncludedNo
Travel Length4.28 in
Upper Mount CodeL1
Cylinder MaterialSteel
Part FitmentDirect Fit
Maximum Ride Height Raising Distance0 in
Grade TypePerformance
Vendor Part NumberRS55120
Package Qty1
Package TypeEA
