RS5000X Rear Shock Absorber Fits Ford F150
InfoVehicle Info Needed
RANCHOPART NUMBER: 801-RS55149

RS5000X Rear Shock Absorber Fits Ford F150

$7087
More than 10 available
ShippingShips on Nov 23, 2026
Lowest PriceLowest Price Guarantee

Ford
RS5000X Rear Shock Absorber
  • 2014-2025 Ford F-150
  • Stock Ride Height
  • 27.84 in. Extended, 16.81 in. Compressed
  • Gas Charged Twin-Tube
  • Steel
  • White
  • Sold Individually

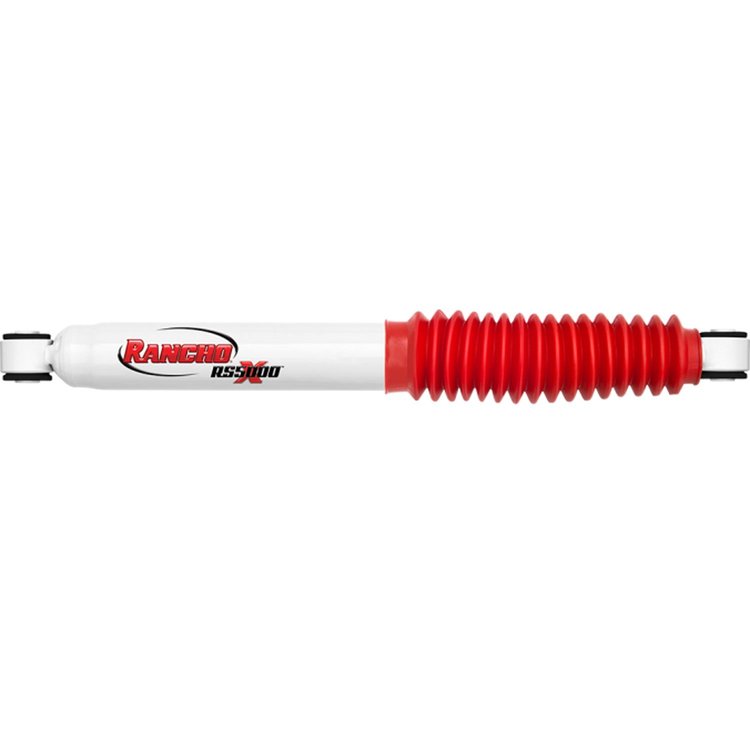

    This RS5000X rear shock absorber is valved for 2014-2025 Ford F-150 at stock ride height. Its gas-charged twin-tube steel body measures 27.84 in. extended and 16.81 in. compressed, finished in white with a red protective boot.

    Rancho RS55149 Shock Absorber Features:

    • Fits 2014-2025 Ford F-150 4WD/2WD
    • Valved for stock rear ride height
    • Application notes: for models with Base Payload Package, FX4 Package, Heavy Duty Payload Package, Off Road Package; not for models with Continuous Controlled Damping Suspension
    • Measures 27.84 in. extended and 16.81 in. compressed for 11.03 in. of travel
    • Loop bushing and sleeve mounts at both ends
    • 2.25 in. steel twin-tube body with 0.62 in. nitro-carburized piston rod
    • Cross Tuned rebound valving and progressive engagement valving tuned for each application
    • Nitrogen gas charge at 150 PSI limits aeration and damping fade
    • 35 mm sintered iron piston with fluon band and double-welded loops at stress points
    • All-weather fluid handles internal temperatures from -40 to 248 degrees F
    • Includes red protective boot and internal polyurethane rebound bumper
    • Improve Your Suspension Performance

      Rancho RS5000X Series Shock Absorbers feature an innovative valving system that improves the shock compression characteristics. Each shock is pressurized to 60 psi and is progressively valved. The double-welded ends and nitro-carburized rod gives you superior durability on and off the road.



    Part TypeShock Absorber
    Product LineRancho RS5000X Shocks
    BrandRANCHO
    Package Height3.0
    Package Width3.5
    Package Length24.0
    Weight6.325 PG
    Extended Bumper StopYes
    Cylinder Outside Diameter2.25 in
    Body ColorWhite
    Bladder(S) IncludedNo
    Includes Bump StopNo
    Maximum Ride Height Lowering Distance0 in
    Hydraulic LockoutNo
    Compressed Bumper StopNo
    Adjustable Ride HeightNo
    Spring IncludedNo
    New Or RemanufacturedNew
    Active Or Passive SuspensionPassive
    Body Diameter57.2 mm
    Extended Length27.84 in
    Self-LevelingNo
    Shock Absorber Body End Measuring PointCenter of Loop
    Dust Shield MaterialRubber
    Boot IncludedYes
    Lower Mount TypeLoop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.9/16 in. Sleeve OAL
    Bearing Plate IncludedNo
    ColorWhite
    Air Ride SuspensionNo
    Strut Mount Insulator(S) IncludedNo
    Internal Construction TypeTwin Tube
    AdjustableNo
    Upper Mount TypeLoop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.9/16 in. Sleeve OAL
    Lower Mount CodeLS27
    Dust Shield ColorRed
    Adjustable ReboundNo
    Adjustable DampingNo
    Adjustable CompressionNo
    Collapsed Length16.81 in (426.974 mm)
    Valving TypeProgressive
    Part CategoryPerformance Parts
    Internal Rebound SpringNo
    Dust Shield Diameter2.99 in
    Gas ChargedYes
    Rod Diameter15.8 mm
    Bladder Heavy Duty Crimping Rings IncludedNo
    Cylinder ColorWhite
    Cylinder FinishPainted
    Spring Isolators IncludedNo
    Shock Absorber Rod End Measuring PointCenter of Loop
    Extended Hydraulic LockoutNo
    Shock Absorber Bore Size1.3779527559055118 in
    Shock Stroke11.03 in (280.2 mm)
    Shaft MaterialNitrocarburized
    Spring Seat IncludedNo
    Dust Shield IncludedYes
    Air AdjustableNo
    Internal Rebound BumperYes
    FinishPainted
    Bladder Sleeve(S) IncludedNo
    Remote ReservoirNo
    Compressed Length16.81 in
    Product GradeEconomy
    QuantitySold Individually
    Mounting Hardware IncludedNo
    Coil Over Springs IncludedNo
    TypeTelescopic
    Body MaterialSteel
    Coil Spring Insulator(S) IncludedNo
    Travel Length280.2 mm
    Upper Mount CodeLS27
    Cylinder MaterialSteel
    Part FitmentDirect Fit
    Dust ShieldYes
    Maximum Ride Height Raising Distance0 in
    Grade TypePerformance
    Vendor Part NumberRS55149
    Package Qty1
    Package TypeEA
