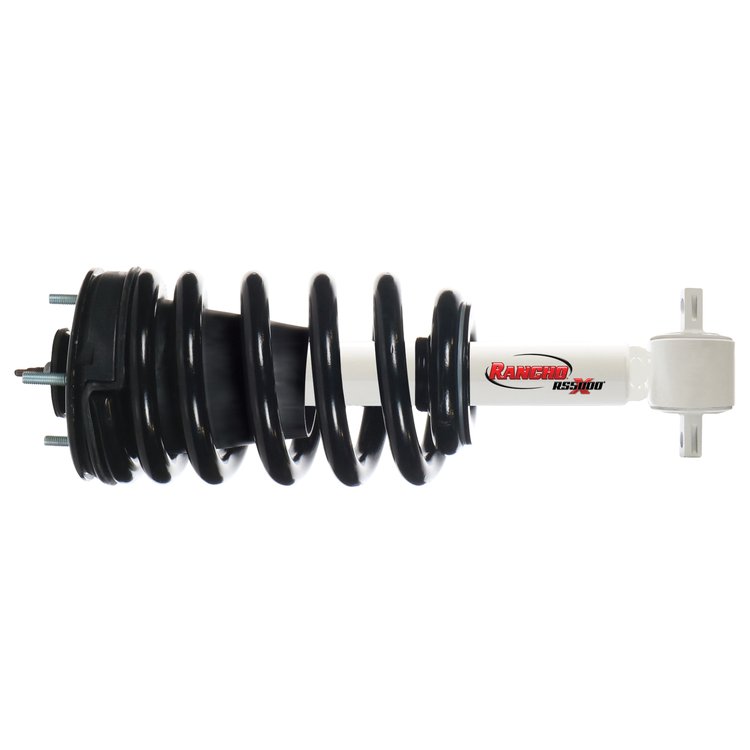

The RS5000X Loaded right/passenger side front assembly combines a Cross Tuned strut, coil spring and upper mount for 2015-2020 Ford F-150 2WD. Its gas-charged strut extends to 20.91 in. and compresses to 16.44 in., returning the truck to stock height.

Rancho RS551834R Strut Assembly Features:

• Fits 2015-2020 Ford F-150 2WD models
• Designed for stock front ride height
• Precisely calibrated coil spring restores factory ride height
• Installs as a complete unit with upper mounting plate, no spring compressor needed
• 20.91 in. extended length, 16.44 in. compressed length and 4.46 in. of travel
• 2.13 in. body diameter with stud plate upper mount and cross pin lower mount
• Mounting hardware included
• Progressive Engagement Valving is tuned to the vehicle to soften low-speed initial impacts
• Nitro-carburized piston rod, double-welded loops at stress points and sintered iron piston
• Nitrogen gas charged to 60 PSI to limit aeration, fade and foaming
• Cross Tuned rebound valving with an advanced compression phase for on- and off-road handling
