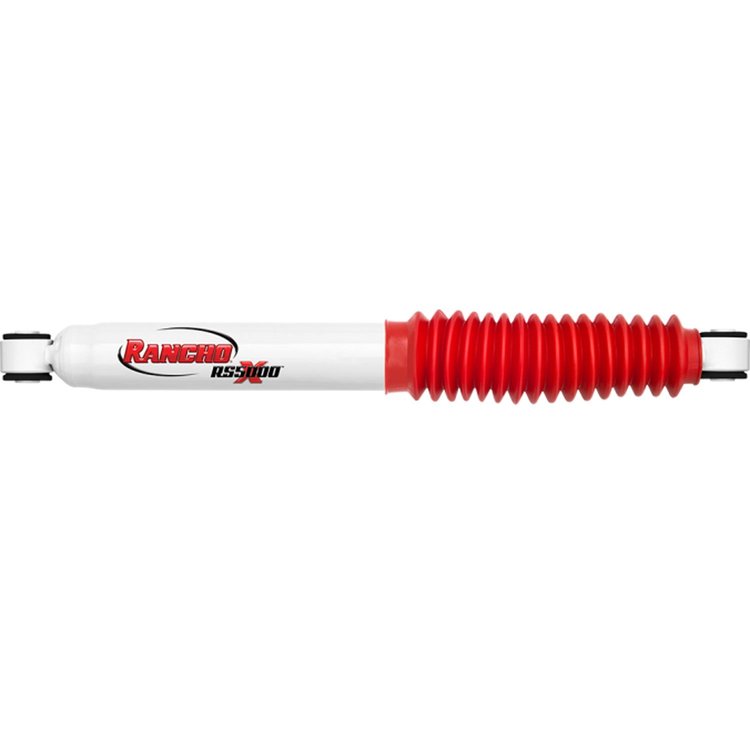

RS5000X Rear Shock Absorber GM Fullsize 1500 Pickups and SUVs
InfoVehicle Info Needed
RANCHOPART NUMBER: 801-RS55198

RS5000X Rear Shock Absorber GM Fullsize 1500 Pickups and SUVs

$6699
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM/Dodge
RS5000X Rear Shock Absorber
  • 1994-2019 Chevy Silverado, GMC Sierra, Dodge Ram
  • 0-2 in. Lift
  • 15.69 in. Compressed, 25.59 in. Extended
  • Gas Charged Twin-Tube
  • Steel
  • White
  • Sold Individually

    These RS5000X shocks mount at the rear of 1994-2019 Chevy Silverado, GMC Sierra, Dodge Ram with a 0-2 in. lift. Each one extends to 25.59 in. and compresses to 15.69 in., with progressive valving tuned to the vehicle and a white painted steel body.

    Rancho RS55198 Shock Absorber Features:

    • Fits 2007 Chevy Silverado 1500 Classic, 2019 Silverado 1500 LD, 1999-2018 Silverado 1500, 2007 GMC Sierra 1500 Classic, 2019 Sierra 1500 Limited, 1999-2018 Sierra 1500, 2000-2001 Dodge Ram 1500 4WD
    • Also fits 1994-1996 Dodge Ram 2500 4WD
    • Select applications specify old body style, 7,700 GVW, off road package, a Rancho suspension system installed
    • Not for vehicles with 4-wheel steering, heavy duty, electronic adjustable suspension, electronic ride control package (ZX3)
    • Measures 15.69 in. compressed and 25.59 in. extended with 9.9 in. of travel
    • 2.25 in. steel body with a 0.622 in. nitrocarburized piston rod
    • 35mm sintered iron piston with nitrogen gas pressurized to 150 PSI to reduce fade and foaming
    • Progressive engagement valving tuned for each vehicle to soften low-speed impacts
    • Loop bushing and sleeve mounts, 9/16 in. sleeve ID x 1-5/8 in. sleeve OAL at both ends
    • Red rubber dust boot included
    • Mounting hardware not included
    • Painted white body finish

      • Improve Your Suspension Performance

      Rancho RS5000X Series Shock Absorbers feature an innovative valving system that improves the shock compression characteristics. Each shock is pressurized to 60 psi and is progressively valved. The double-welded ends and nitro-carburized rod gives you superior durability on and off the road.



    Part TypeShock Absorber
    Product LineRancho RS5000X Shocks
    BrandRANCHO
    Package Height3.2
    Package Width4.3
    Package Length24.3
    Weight7.25 PG
    Extended Bumper StopNo
    Cylinder Outside Diameter2.25 in
    Body ColorWhite
    Bladder(S) IncludedNo
    Includes Bump StopNo
    Maximum Ride Height Lowering Distance0 in
    Hydraulic LockoutNo
    Compressed Bumper StopNo
    Adjustable Ride HeightNo
    Spring IncludedNo
    New Or RemanufacturedNew
    Active Or Passive SuspensionPassive
    Body Diameter57.2 mm
    Extended Length25.59 in
    Self-LevelingNo
    Shock Absorber Body End Measuring PointCenter of Loop
    Dust Shield MaterialRubber
    Boot IncludedYes
    Lower Mount TypeLoop Bushing and Sleeve Mount - 9/16 in. Sleeve ID X 1.5/8 in. Sleeve OAL
    Bearing Plate IncludedNo
    ColorWhite
    Air Ride SuspensionNo
    Strut Mount Insulator(S) IncludedNo
    Internal Construction TypeTwin Tube
    AdjustableNo
    Upper Mount TypeLoop Bushing and Sleeve Mount - 9/16 in. Sleeve ID X 1.5/8 in. Sleeve OAL
    Lower Mount CodeLS47
    Dust Shield ColorRed
    Adjustable ReboundNo
    Adjustable DampingNo
    Adjustable CompressionNo
    Collapsed Length15.65 in (397.51 mm)
    Valving TypeProgressive
    Part CategoryPerformance Parts
    Internal Rebound SpringNo
    Dust Shield Diameter2.99 in
    Gas ChargedYes
    Rod Diameter15.8 mm
    Bladder Heavy Duty Crimping Rings IncludedNo
    Cylinder ColorWhite
    Cylinder FinishPainted
    Spring Isolators IncludedNo
    Shock Absorber Rod End Measuring PointCenter of Loop
    Extended Hydraulic LockoutNo
    Shock Absorber Bore Size1.3779527559055118 in
    Shock Stroke9.9 in
    Shaft MaterialNitrocarburized
    Spring Seat IncludedNo
    Dust Shield IncludedYes
    Air AdjustableNo
    Internal Rebound BumperNo
    FinishPainted
    Bladder Sleeve(S) IncludedNo
    Remote ReservoirNo
    Compressed Length398.5 mm
    Product GradeEconomy
    QuantitySold Individually
    Mounting Hardware IncludedNo
    Coil Over Springs IncludedNo
    TypeTelescopic
    Body MaterialSteel
    Coil Spring Insulator(S) IncludedNo
    Travel Length251.5 mm
    Upper Mount CodeLS47
    Cylinder MaterialSteel
    Part FitmentDirect Fit
    Dust ShieldYes
    Maximum Ride Height Raising Distance0 in
    Grade TypePerformance
    Vendor Part NumberRS55198
    Package Qty1
    Package TypeEA
    Please click here to download the instructions PDF file
    Some parts are not legal for use in California or other states with similar laws / regulations
