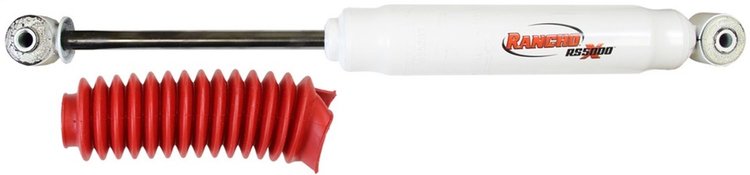

Lowest Price GuaranteeRS5000X Rear Shock Absorber2002-2012 Dodge Nitro, Jeep Liberty Stock Ride Height 13.99 in. Compressed, 22.58 in. Extended Gas Charged Twin-Tube Steel White Sold Individually
These RS5000X shocks mount at the rear of 2002-2012 Dodge Nitro, Jeep Liberty at stock ride height. Each one extends to 22.58 in. and compresses to 13.99 in., with progressive valving tuned to the vehicle and a white painted steel body.
Rancho RS55284 Shock Absorber Features:
- Fits 2007-2011 Dodge Nitro, 2002-2012 Jeep Liberty
- Measures 13.99 in. compressed and 22.58 in. extended with 8.59 in. of travel
- 2.25 in. steel body with a 0.622 in. nitrocarburized piston rod
- 35mm sintered iron piston with nitrogen gas pressurized to 150 PSI to reduce fade and foaming
- Progressive engagement valving tuned for each vehicle to soften low-speed impacts
- Upper loop bushing and sleeve mount, 14mm sleeve ID x 1-3/4 in. sleeve OAL; lower loop bushing and sleeve mount, 12mm sleeve ID x 1-5/8 in. sleeve OAL
- Red rubber dust boot included
- Mounting hardware not included
- Internal polyurethane rebound bumper and rubber bushings absorb ride harshness
- Painted white body finish
Part TypeShock Absorber
BrandRANCHO
Package Height3.1
Package Width3.2
Package Length24.2
Weight5.5 PG
Cylinder Outside Diameter2.25 in
Body ColorWhite
Bladder(S) IncludedNo
Includes Bump StopNo
Maximum Ride Height Lowering Distance0 in
Hydraulic LockoutNo
Adjustable Ride HeightNo
Spring IncludedNo
New Or RemanufacturedNew
Active Or Passive SuspensionPassive
Body Diameter2.25 in
Extended Length22.58 in
Self-LevelingNo
Shock Absorber Body End Measuring PointCenter of Loop
Dust Shield MaterialRubber
Boot IncludedYes
Lower Mount TypeLoop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.5/8 in. Sleeve OAL
Bearing Plate IncludedNo
ColorWhite
Air Ride SuspensionNo
Strut Mount Insulator(S) IncludedNo
Internal Construction TypeTwin Tube
Upper Mount TypeLoop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.3/4 in. Sleeve OAL
Lower Mount CodeLS28
Dust Shield ColorRed
Adjustable ReboundNo
Adjustable DampingNo
Adjustable CompressionNo
Valving TypeProgressive
Part CategoryPerformance Parts
Internal Rebound SpringNo
Dust Shield Diameter2.99 in
Gas ChargedYes
Rod Diameter15.8 mm
Bladder Heavy Duty Crimping Rings IncludedNo
Cylinder ColorWhite
Cylinder FinishPainted
Spring Isolators IncludedNo
Shock Absorber Rod End Measuring PointCenter of Loop
Shock Absorber Bore Size35 mm
Shock Stroke8.59 in
Shaft MaterialNitrocarburized
Spring Seat IncludedNo
Dust Shield IncludedYes
Air AdjustableNo
Internal Rebound BumperYes
FinishPainted
Bladder Sleeve(S) IncludedNo
Remote ReservoirNo
Compressed Length13.99 in
QuantitySold Individually
Mounting Hardware IncludedNo
Coil Over Springs IncludedNo
TypeTelescopic
Body MaterialSteel
Coil Spring Insulator(S) IncludedNo
Travel Length8.59 in
Upper Mount CodeLS91
Cylinder MaterialSteel
Part FitmentDirect Fit
Maximum Ride Height Raising Distance0 in
Grade TypePerformance
Vendor Part NumberRS55284
Package Qty1
Package TypeEA
