RS5000X Front Shock Absorber for 2001-2010 Chevrolet Silverado 2500 HD, GMC Sierra 2500, HD, Hummer H2
InfoVehicle Info Needed
RANCHOPART NUMBER: 801-RS55289

RS5000X Front Shock Absorber for 2001-2010 Chevrolet Silverado 2500 HD, GMC Sierra 2500, HD, Hummer H2

$7408
ShippingShips on Nov 17, 2026
Lowest PriceLowest Price Guarantee

GM

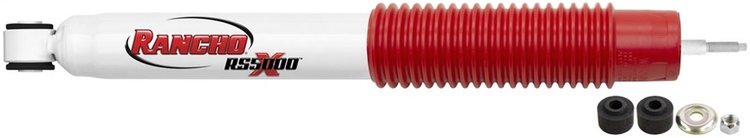

RS5000X Front Shock Absorber
  • 2001-2010 Chevy Silverado, GMC Sierra, Hummer H2
  • 4 in. Lift
  • 13.88 in. Compressed, 21.41 in. Extended
  • Gas Charged Twin-Tube
  • Steel
  • White
  • Sold Individually

    This RS5000X front shock absorber fits 2001-2010 Chevy Silverado, GMC Sierra, Hummer H2 with a 4 in. lift. Its twin-tube steel body is nitrogen charged and measures 13.88 in. compressed and 21.41 in. extended for 7.53 in. of travel.

    Rancho RS55289 Shock Absorber Features:

    • Fits 2007 Chevy Silverado 2500 HD Classic, 2001-2010 Silverado 2500 HD, 2007 GMC Sierra 2500 HD Classic, 2001-2010 Sierra 2500 HD, 2003-2009 Hummer H2
    • Select applications specify a Rancho suspension system installed
    • Measures 13.88 in. compressed and 21.41 in. extended with 7.53 in. of travel
    • 2.25 in. steel body with a 0.622 in. nitrocarburized piston rod
    • 35mm sintered iron piston with nitrogen gas pressurized to 150 PSI to reduce fade and foaming
    • Progressive engagement valving tuned for each vehicle to soften low-speed impacts
    • Upper stem mount, 2-5/8 in. stem length x 1/2-13 thread; lower loop bushing and sleeve mount, 14mm sleeve ID x 1-5/16 in. sleeve OAL
    • Red rubber dust boot included
    • Mounting hardware included (parts pack P01167)
    • Painted white body finish

      • Improve Your Suspension Performance

      Rancho RS5000X Series Shock Absorbers feature an innovative valving system that improves the shock compression characteristics. Each shock is pressurized to 60 psi and is progressively valved. The double-welded ends and nitro-carburized rod gives you superior durability on and off the road.



    Part TypeShock Absorber
    Product LineRancho RS5000X Shocks
    BrandRANCHO
    Package Height3.3
    Package Width3.3
    Package Length24.2
    Weight5.41 PG
    Bushing ColorBlack
    Cylinder Outside Diameter2.25 in
    Body ColorWhite
    Bladder(S) IncludedNo
    Includes Bump StopNo
    Maximum Ride Height Lowering Distance0 in
    Hydraulic LockoutNo
    Adjustable Ride HeightNo
    Spring IncludedNo
    New Or RemanufacturedNew
    Active Or Passive SuspensionPassive
    Body Diameter57.2 mm
    Extended Length543.8 mm
    Self-LevelingNo
    Shock Absorber Body End Measuring PointBase of Stem
    Dust Shield MaterialRubber
    Boot IncludedYes
    Lower Mount TypeLoop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.5/16 in. Sleeve OAL
    PositionFront
    Bearing Plate IncludedNo
    ColorWhite
    Air Ride SuspensionNo
    Strut Mount Insulator(S) IncludedNo
    Internal Construction TypeTwin Tube
    Upper Mount TypeStem Mount - 2.5/8 in. Stem Length X 1/2 in.-13 Thread Pitch
    Lower Mount CodeLS42
    Upper MountEyelet
    Dust Shield ColorRed
    Adjustable ReboundNo
    Adjustable DampingNo
    Adjustable CompressionNo
    Internal DesignTwin-tube
    Valving TypeProgressive
    Part CategoryPerformance Parts
    Internal Rebound SpringNo
    Dust Shield Diameter2.99 in
    Gas ChargedYes
    Rod Diameter15.8 mm
    Bladder Heavy Duty Crimping Rings IncludedNo
    Cylinder ColorWhite
    Cylinder FinishPainted
    Spring Isolators IncludedNo
    Shock Absorber Rod End Measuring PointCenter of Loop
    Shock Absorber Bore Size1.3779527559055118 in
    Shock Stroke191.3 mm
    Shaft MaterialNitrocarburized
    Spring Seat IncludedNo
    Dust Shield IncludedYes
    Air AdjustableNo
    Internal Rebound BumperNo
    FinishPainted
    Bladder Sleeve(S) IncludedNo
    Remote ReservoirNo
    Compressed Length13.88 in
    Parts Pack(S)P01167
    Bushing MaterialRubber
    QuantitySold individually
    Mounting Hardware IncludedYes
    Coil Over Springs IncludedNo
    TypeTelescopic
    Body MaterialSteel
    Coil Spring Insulator(S) IncludedNo
    Travel Length7.53 in
    Upper Mount CodeS5
    Cylinder MaterialSteel
    Part FitmentDirect Fit
    Maximum Ride Height Raising Distance0 in
    Grade TypePerformance
    Vendor Part NumberRS55289
    Package Qty1
    Package TypeEA
