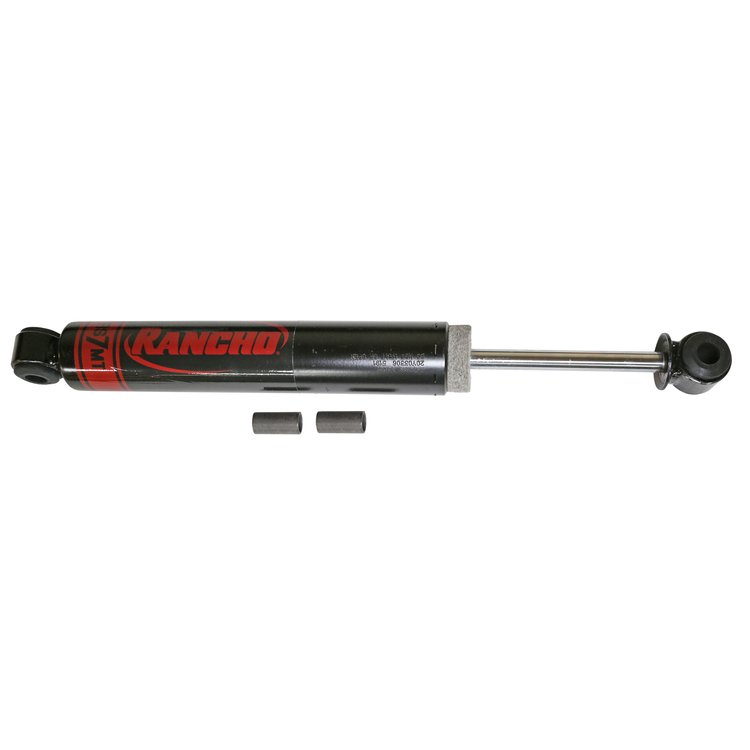

RS7MT Front/Rear Shock Absorber1943-1995 Jeep CJ5, CJ6, Willys, Suzuki Samurai 0-1.5 in. Lift 18.11 in. Extended, 12.52 in. Compressed Monotube, Gas Charged Steel Black Sold Individually
These RS7MT front or rear shocks install on 1943-1995 Jeep CJ5, CJ6, Willys, Suzuki Samurai models at stock height or with up to 1.5 in. of lift. Each black monotube unit compresses to 12.52 in., extends to 18.11 in. and uses an integrated dirt wiper seal to keep debris out.
Rancho RS77119 Shock Absorber Features:
- Fits 1943-1958 Jeep Willys, 1959-1966 CJ3, 1969-1973 Commando, 1959-1965 DJ3, 1965-1974 DJ5, 1969-1971 Jeepster, 1959-1975 CJ5, 1959-1975 CJ6, 1974 Wagoneer, 1966-1968 CJ5A, 1966-1968 CJ6A
- Also fits 1961-1967 Dodge D300 Series, 1961-1967 W300 Series, 1968-1971 D300 Pickup, 1968-1969 W300 Pickup; 1985-1995 Suzuki Samurai; 1973-1974 AM General FJ8; 1964-1983 Toyota Land Cruiser
- Extended length 18.11 in., compressed length 12.52 in. and 5.59 in. of travel
- Upper mount: loop bushing, 5/8 in. bushing ID x 1-5/16 in. bushing length; lower mount: loop bushing, 5/8 in. bushing ID x 1-5/16 in. bushing length
- Designed for stock front ride height and 0-1.5 in. of rear lift
- Some applications limited by build: to serial # 1286462
- Monotube steel body, 1.97 in. (50mm) diameter, filled with all-weather fluid rated for internal temperatures of -40 to 248 degrees F
- Deflective disc valving with progressive tuning for on-road and off-road control
- Mounting hardware included
- 14mm hardened chrome piston rod resists scuffs and corrosion
- Full-floating dividing piston and high-pressure nitrogen gas hold pressure on the oil to reduce aeration and fade
- Internal rebound bumper and shouldered rubber bushings cut noise, vibration and harshness
Rancho RS77119 Installation Notes:
- On some applications the shock bushing ID is smaller than the mounting pin and requires lubrication and extra effort to install
Part TypeShock Absorber
BrandRANCHO
Package Height3.31
Package Width3.31
Package Length24.25
Weight4.76 PG
Cylinder Outside Diameter50 mm
Body ColorBlack
Bladder(S) IncludedNo
Includes Bump StopNo
Maximum Ride Height Lowering Distance0 in
Hydraulic LockoutNo
Adjustable Ride HeightNo
Spring IncludedNo
New Or RemanufacturedNew
Active Or Passive SuspensionPassive
Body Diameter50 mm
Extended Length460 mm
Self-LevelingNo
Shock Absorber Body End Measuring PointCenter of Loop
Boot IncludedNo
Lower Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
Bearing Plate IncludedNo
ColorBlack
Air Ride SuspensionNo
Strut Mount Insulator(S) IncludedNo
Internal Construction TypeSingle Tube
Upper Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
Lower Mount CodeL1
Adjustable ReboundNo
Adjustable DampingNo
Adjustable CompressionNo
Valving TypeProgressive
Part CategoryPerformance Parts
Internal Rebound SpringNo
Gas ChargedYes
Rod Diameter0.5511811023622047 in
Bladder Heavy Duty Crimping Rings IncludedNo
Cylinder ColorBlack
Cylinder FinishPainted
Spring Isolators IncludedNo
Shock Absorber Rod End Measuring PointCenter of Loop
Shock Absorber Bore Size1.8110236220472442 in
Shock Stroke142 mm
Shaft MaterialChromed
Spring Seat IncludedNo
Dust Shield IncludedNo
Air AdjustableNo
Internal Rebound BumperYes
FinishPainted
Bladder Sleeve(S) IncludedNo
Remote ReservoirNo
Compressed Length318 mm
Parts Pack(S)P00916
QuantitySold Individually
Mounting Hardware IncludedYes
Coil Over Springs IncludedNo
TypeTelescopic
Body MaterialSteel
Coil Spring Insulator(S) IncludedNo
Travel Length142 mm
Upper Mount CodeL1
Cylinder MaterialSteel
Part FitmentDirect Fit
Maximum Ride Height Raising Distance0 in
Grade TypePerformance
Vendor Part NumberRS77119
Package Qty1
Package TypeEA
