Vehicle Info NeededRANCHOPART NUMBER: 801-RS999901

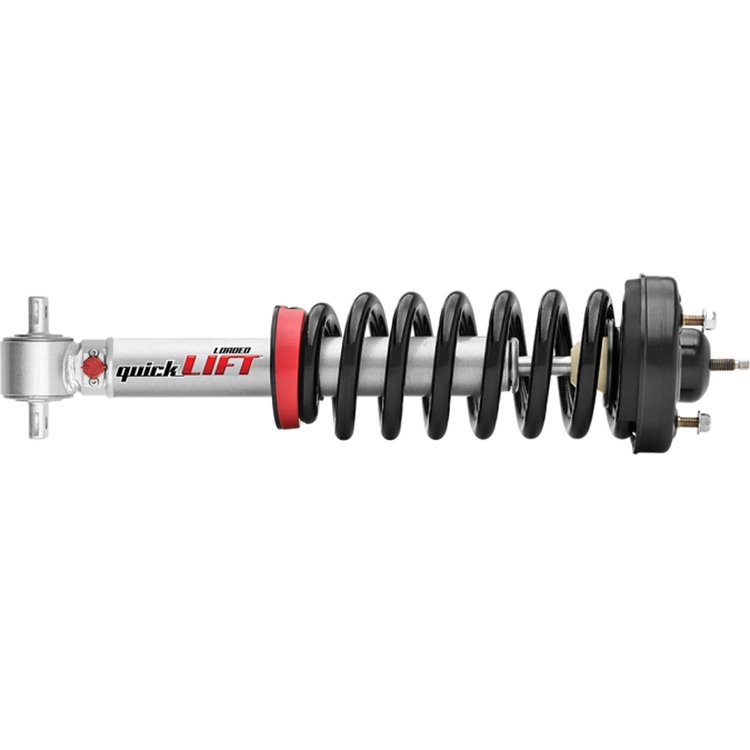

QuickLift Complete Strut Assembly Fits GM 1/2-ton Pickups and SUVs
$19099
Ships on 11/20/2026
Lowest Price GuaranteeGM
QuickLIFT Front Strut and Coil Spring Assembly2007-2020 Chevy Silverado 1500, Tahoe, GMC Sierra 1500 2 in. Lift Fits Up to 275x60x20 Tires 9-Position Adjustable RS9000XL Strut Liquid Metallic Strut Finish Sold Individually
This preassembled QuickLIFT unit for 2007-2020 Chevy Silverado 1500, Tahoe and GMC Sierra 1500 lifts the front 2 in. and accepts tires up to 275x60x20. It pairs an application-specific coil spring and upper mounting plate with an RS9000XL strut that extends to 18.06 in.
Rancho RS999901 Strut Assembly Features:
- Fits 2007-2018 Chevy Silverado 1500, 2015-2020 Suburban, 2019 Silverado 1500 LD, 2007-2013 Avalanche, 2007-2014 Suburban 1500 and 2007-2020 Tahoe (old body style)
- Also fits 2015-2020 GMC Yukon XL, 2019 Sierra 1500 Limited, 2007-2018 Sierra 1500, 2007-2020 Yukon and 2007-2014 Yukon XL 1500
- Adds 2 in. of front lift height
- Not compatible with automatic leveling system, automatic rear air leveling system, electronic adjustable suspension, Magnetic Ride Control, Z55 Autoride suspension or Z71 Off-Road package
- Clears tires up to 275x60x20
- 18.06 in. extended length, 13.81 in. compressed length and 4.25 in. of travel
- 2.13 in. body diameter with loop bushing mounts at both ends (5/8 in. bushing ID x 1-5/16 in. bushing length)
- Complete assembly includes the strut, application-specific coil spring and upper mounting plate
- RS9000XL strut with nine-position knob for adjustable damping firmness
- Nitrogen gas charged to 100 PSI to limit aeration, fade and foaming
- Low-friction, self-lubricating seal retains gas and oil
Rancho RS999901 Installation Notes:
- Must be used with RS70075 coil spring spacer kit to level the rear with the front
Rancho Loaded QuickLift Leveling Systems will level the front end suspension of your SUV or Pickup and remove the uncomfortable factory rake. Rancho Loaded QuickLift Leveling Systems are designed to quickly and easily allow your vehicle to clear up to 35" tires for better off road capabilities. Preassembled coil spring and upper mount simplify installation, and QuickLift has 9-position tuning technology to easily adjust ride quality and enhance performance.
Features:
- Levels your vehicle
- Removes factory rake
Show More
- Clears up to 35" tires
- Preassembled with coil spring and upper mount for simple install
- 9-position tuning technology adjusts ride quality
- Enhances performance
- Long-lasting premium liquid metallic finish
- Limited lifetime warranty
- QuickLift Complete Strut Assemblies are sold individually
Part TypeStrut and Coil Spring Assembly
Product LineRancho Loaded QuickLift Leveling Systems
BrandRANCHO
Package Height7.8
Package Width8.2
Package Length25.2
Weight28.7 PG
Part CategoryPerformance Parts
Extended Bumper StopNo
Gas ChargedYes
Includes Bump StopNo
Extended Hydraulic LockoutNo
Hydraulic LockoutNo
Compressed Bumper StopNo
Body Length338.1 mm
Body Diameter54.1 mm
Extended Length18.06 in
Dust Shield IncludedNo
Internal Rebound BumperNo
Boot IncludedYes
Body TypeSS7
Lower Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
Compressed Length350.8 mm
Parts Pack(S)P01577
Product GradeEconomy
QuantitySold individually
AdjustableYes
Upper Mount TypeLoop Bushing Mount - 5/8 in. Bushing ID X 1.5/16 in. Bushing OAL
Travel Length108 mm
Boot ColorBlack
Part FitmentDirect Fit
Internal DesignTwin-tube
Dust ShieldNo
Grade TypePerformance
Vendor Part NumberRS999901
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
