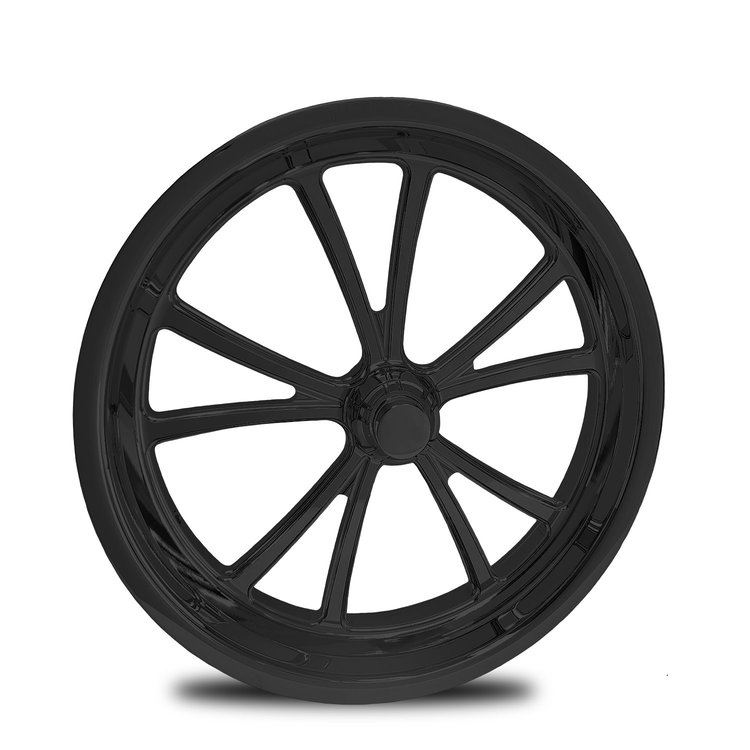

CS72234-01B Torx Black Spindle-Mount Front Wheel [Size: 17" x 2.25"] Solid Black

Vehicle Info Needed

RC COMPONENTSPART NUMBER: 265-CS72234-01B

CS72234-01B Torx Black Spindle-Mount Front Wheel [Size: 17" x 2.25"] Solid Black

Name: CS72234-01B Torx Black Spindle-Mount Front Wheel [Size: 17" x 2.25"] Solid Black
Brand: RC COMPONENTS
SKU: 265-CS72234-01B
Price: 969.00 USD
Availability: InStock

^$969⁰⁰

Ships on 09/23/2026

Lowest Price Guarantee

17" x 2.25"
Spindle-Mount
Front Wheel

Torx Black Spindle-Mount Front Wheel

Size: 17" x 2.25"

Bolt Pattern: Strange Spindle Mount

Backspace: 0"

Hub Bore: 1.96"

Load: 2,000 lbs.

Finish: Solid Black

JEGS How to Measure Wheel Fitment: Click Here

RC Components CS72234-01B Features:

Type of Wheel: Front Wheel
Lug Hole Count: 0
Lug Seat Profile: Spindle mount
Center Cap Included: Yes
Wheel Material: 6061 Aluminum
Wheel/Rear (Wheel Center) Finish: Solid Black
Mounting Type (Front or Rear): Front
Valve Hole: .252"
Beadlock: No
SFI Approved: Yes

Part TypeWheel

BrandRC COMPONENTS

Package Height9.0

Package Width21.0

Package Length21.0

Weight14.0 PG

Part CategoryPerformance Parts

Beadlock Ring FinishN/A

Wheel Size17 x 2.25 in.

Dot ApprovedNo

ColorSolid Black

Wheel LocationFront

Load Rating (Lbs.)2000

Quantity1

Functional BeadlockNo

Backspacing0 In.

Beadlock TypeN/A

Center Bore Diameter1.96 in.

Center Cap IncludedYes

Wheel FinishSolid Black

Back Spacing0 in.

Load Rating2000 lbs.

Wheel Diameter17 in.

Beadlock FunctionalNo

Wheel TypeDrag Race Wheels

Part FitmentUniversal

Wheel Width2.25 in.

Safety RatingSFI 15.2

Wheel Bolt PatternStrange Spindle Mount

Sfi RatingSFI 15.2

Spindle MountStrange Spindle Mount

LocationFront

Vendor Part NumberCS72234-01B

Package Qty1

Package TypeEA
