Made in USA

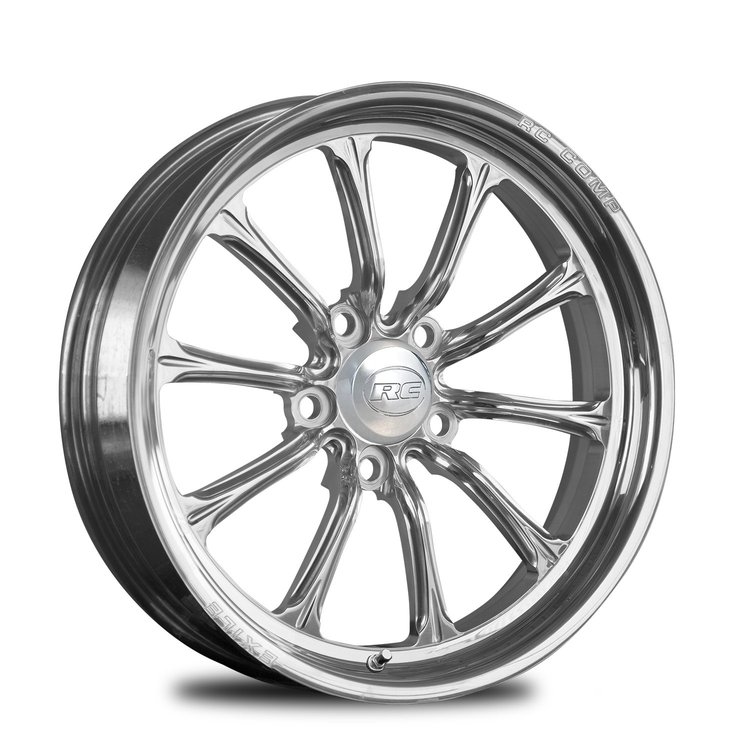

CS74536-05P Exile-S Polished Front Wheel [Size: 17" x 4.50"] Polished
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-CS74536-05P

CS74536-05P Exile-S Polished Front Wheel [Size: 17" x 4.50"] Polished

$99500
ShippingShips on 12/02/2026
Lowest PriceLowest Price Guarantee

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60
Deluxe Tire Pressure Gauge [0-60 psi]

JEGS

Deluxe Tire Pressure Gauge [0-60 psi]

Part Number : 555-65533
$2699$32.99
You Save$6.00

17" x 4.50"
Front Wheel
Exile-S Polished Front Wheel
  • Size: 17" x 4.50"
  • Bolt Pattern: 5 x 5.50"
  • Backspace: 2.25"
  • Hub Bore: 3.18"
  • Load: 2,000 lbs.
  • Finish: Polished

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components CS74536-05P Features:

    • Type of Wheel: Front Wheel
    • Lug Hole Count: 5
    • Lug Seat Profile: Shank
    • Lug Nut Shank Length (in.): 0.55
    • Center Cap Included: Yes
    • Wheel Material: 6061 Aluminum
    • Wheel/Rear (Wheel Center) Finish: Polished
    • Mounting Type (Front or Rear): Front
    • Valve Hole: .467"
    • Beadlock: No
    • SFI Approved: Yes

      • Exile-S Polished Finish Wheels

      RC Components Exile-S Polished Wheels feature the same unique 10-spoke design as the Exile Wheels without the machined accents on the outer rim lip. Exile-S Polished Finish Wheels are available in multiple offsets and bolt patterns.

    Part TypeWheel
    Product LineRC Components Exile-S Polished Wheels
    BrandRC COMPONENTS
    Package Height12.0
    Package Width22.0
    Package Length23.0
    Weight17.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishN/A
    Wheel Size17 x 4.5 in.
    Dot ApprovedNo
    Quantity1
    Wheel LocationFront
    Load Rating (Lbs.)2000
    Wheel FinishPolished
    Functional BeadlockNo
    Beadlock TypeN/A
    Bolt Pattern5 x 5.5 in.
    Backspacing2.25 in.
    Center Bore Diameter3.18 in.
    Back Spacing2.25 in.
    Center Cap IncludedYes
    Load Rating2000 lbs.
    Beadlock FunctionalNo
    Wheel Diameter17 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Wheel Bolt Pattern5 x 5.50 in.
    Wheel Width4.5 in.
    Safety RatingSFI 15.2
    Sfi RatingSFI 15.2
    LocationFront
    Vendor Part NumberCS74536-05P
    Package Qty1
    Package TypeEA
