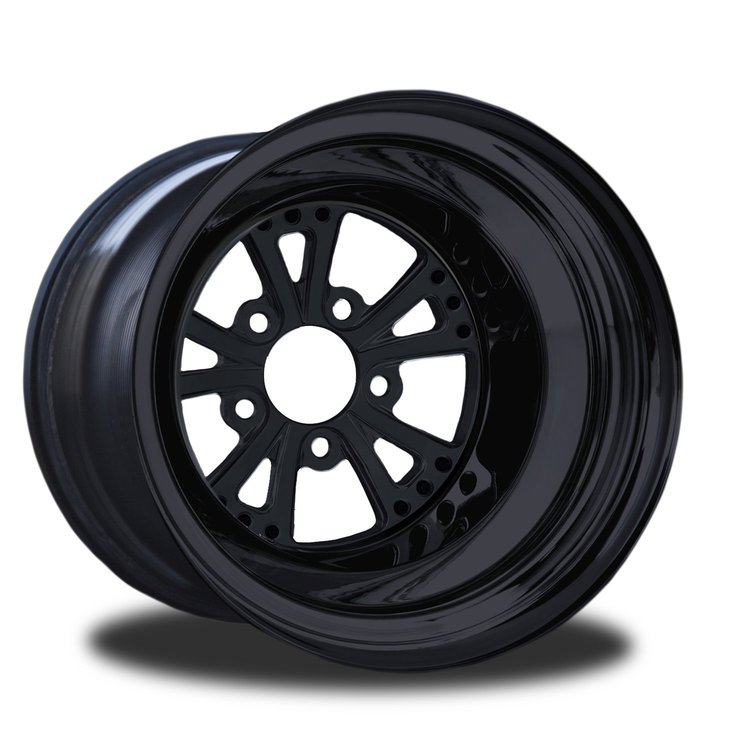

CSB502B-01B Torx Black Non-Beadlock Rear Wheel [Size: 15" x 8.50"] Black Anodized w/ Black Barrel
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-CSB502B-01B

CSB502B-01B Torx Black Non-Beadlock Rear Wheel [Size: 15" x 8.50"] Black Anodized w/ Black Barrel

$95500
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60
Deluxe Tire Pressure Gauge [0-60 psi]

JEGS

Deluxe Tire Pressure Gauge [0-60 psi]

Part Number : 555-65533
$2699$32.99
You Save$6.00

15" x 8.50"
Non-Beadlock
Rear Wheel
Torx Black Non-Beadlock Rear Wheel
  • Size: 15" x 8.50"
  • Bolt Pattern: 5 x 4.75"
  • Backspace: 5"
  • Hub Bore: 3.18"
  • Load: 2,000 lbs.
  • Finish: Black Anodized & Black Barrel

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components CSB502B-01B Features:

    • Type of Wheel: Rear Wheel
    • Lug Hole Count: 5
    • Lug Seat Profile: Shank
    • Lug Nut Shank Length (in.): 0.55
    • Center Cap Included: No
    • Wheel Material: Wheel center (6061 aluminum) / Barrell (5054 aluminum)
    • Wheel/Rear (Wheel Center) Finish: Black Anodized
    • Barrel Finish: Black
    • Mounting Type (Front or Rear): Rear
    • Valve Hole: .467"
    • Beadlock: No
    • SFI Approved: Yes

      • Torx Series Black Finish Wheels

      RC Components Torx Black Wheels is a clean and classy split 10-spoke design. The unique engineering of these wheels offers superior strength while being among the lightest wheels in the industry, giving you the edge over the competition.

    Part TypeWheel
    Product LineRC Components Torx Black Wheels
    BrandRC COMPONENTS
    Package Height19.0
    Package Width20.0
    Package Length21.0
    Weight25.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishN/A
    Wheel Size15 x 8.5 in.
    Dot ApprovedNo
    Quantity1
    Wheel LocationRear
    Load Rating (Lbs.)2000
    Wheel FinishBlack Anodized with Black Barrel
    Functional BeadlockNo
    Beadlock TypeN/A
    Bolt Pattern5 X 4.75 in.
    Backspacing5 in.
    Center Bore Diameter3.18 in.
    Back Spacing5 in.
    Center Cap IncludedNo
    Load Rating2000 lbs.
    Beadlock FunctionalNo
    Wheel Diameter15 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Wheel Bolt Pattern5 x 4.75 in.
    Wheel Width8.5 in.
    Safety RatingSFI 15.1
    Sfi RatingSFI 15.1
    LocationRear
    Vendor Part NumberCSB502B-01B
    Package Qty1
    Package TypeEA
