![CSD401B-02B Exile Black Non-Beadlock Rear Wheel [Size: 15" x 10"] Black Anodized w/ Black Barrel](https://www.jegs.com/images/mini_750/200/265/265-csd401b-02b.jpg)
Vehicle Info NeededRC COMPONENTSPART NUMBER: 265-CSD401B-02B

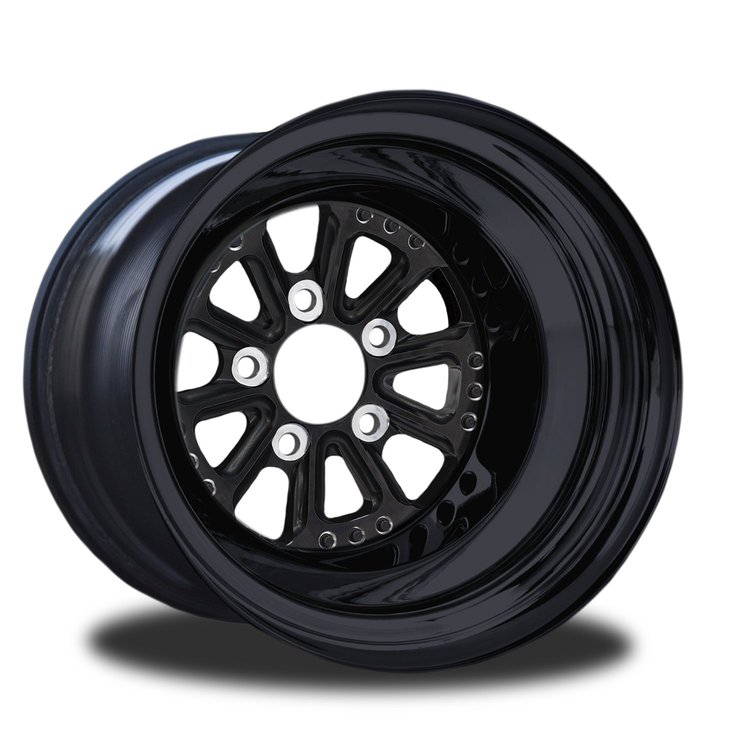

CSD401B-02B Exile Black Non-Beadlock Rear Wheel [Size: 15" x 10"] Black Anodized w/ Black Barrel
$98000
Ships on 09/30/2026
Lowest Price Guarantee15" x 10"
Non-Beadlock
Rear Wheel
Non-Beadlock
Rear Wheel
Exile Black Non-Beadlock Rear WheelSize: 15" x 10" Bolt Pattern: 5 x 4.50" Backspace: 4" Hub Bore: 3.18" Load: 2,000 lbs. Finish: Black Anodized & Black Barrel
JEGS How to Measure Wheel Fitment: Click Here
RC Components CSD401B-02B Features:
- Type of Wheel: Rear Wheel
- Lug Hole Count: 5
- Lug Seat Profile: Shank
- Lug Nut Shank Length (in.): 0.55
- Center Cap Included: No
- Wheel Material: Wheel center (6061 aluminum) / Barrell (5054 aluminum)
- Wheel/Rear (Wheel Center) Finish: Black Anodized
- Barrel Finish: Black
- Mounting Type (Front or Rear): Rear
- Valve Hole: .467"
- Beadlock: No
- SFI Approved: Yes
Exile Lightweight Wheels
RC Components Exile Black Wheels are SFI 15.2 certified and available in multiple widths and offsets. These wheels are forged and machined from 6061 T-6 aluminum for superior strength and durability. They feature sculptured spokes & forged-in gussets and rank among the lightest wheels in the industry.
Part TypeWheel
Product LineRC Components Exile Black Wheels
BrandRC COMPONENTS
Package Height19.0
Package Width20.0
Package Length21.0
Weight25.0 PG
Part CategoryPerformance Parts
Beadlock Ring FinishN/A
Wheel Size15 x 10 in.
Dot ApprovedNo
Quantity1
Wheel LocationRear
Load Rating (Lbs.)2000
Wheel FinishBlack Anodized with Black Barrel
Functional BeadlockNo
Beadlock TypeN/A
Bolt Pattern5 x 4.5 in.
Backspacing4 In.
Center Bore Diameter3.18 in.
Back Spacing4 in.
Center Cap IncludedNo
Load Rating2000 lbs.
Beadlock FunctionalNo
Wheel Diameter15 in.
Wheel TypeDrag Race Wheels
Part FitmentUniversal
Wheel Bolt Pattern5 x 4.50 in.
Wheel Width10 in.
Safety RatingSFI 15.1
Sfi RatingSFI 15.1
LocationRear
Vendor Part NumberCSD401B-02B
Package Qty1
Package TypeEA
