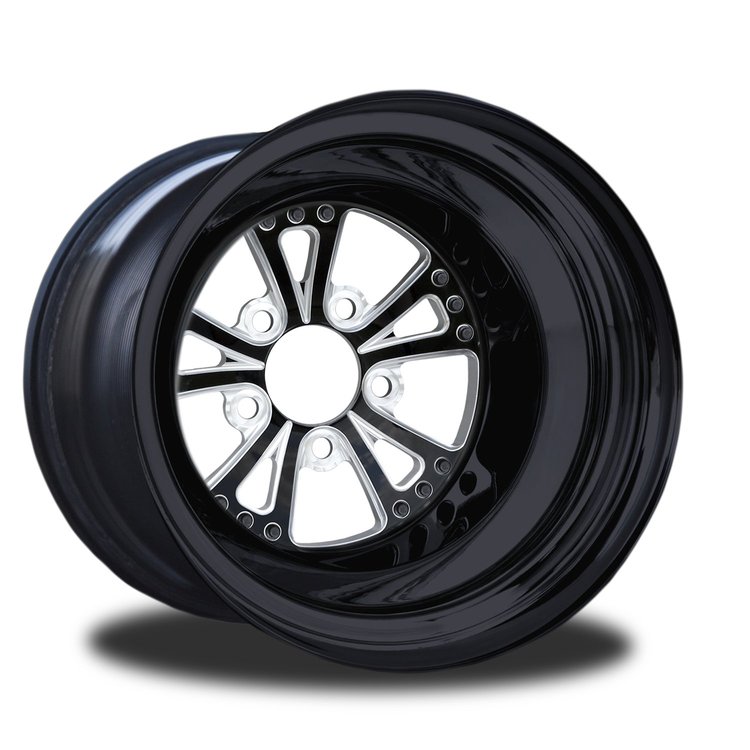

CSF601B-01E Torx Eclipse Non-Beadlock Rear Wheel [Size: 15" x 12"] Black Anodized w/ Machined Accents & Black Barrel
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-CSF601B-01E

CSF601B-01E Torx Eclipse Non-Beadlock Rear Wheel [Size: 15" x 12"] Black Anodized w/ Machined Accents & Black Barrel

$1,02000
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60
Deluxe Tire Pressure Gauge [0-60 psi]

JEGS

Deluxe Tire Pressure Gauge [0-60 psi]

Part Number : 555-65533
$2699$32.99
You Save$6.00

15" x 12"
Non-Beadlock
Rear Wheel
Torx Eclipse Non-Beadlock Rear Wheel
  • Size: 15" x 12"
  • Bolt Pattern: 5 x 4.50"
  • Backspace: 6"
  • Hub Bore: 3.18"
  • Load: 2,000 lbs.
  • Finish: Black Anodized w/ Machined Accents & Black Barrel

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components CSF601B-01E Features:

    • Type of Wheel: Rear Wheel
    • Lug Hole Count: 5
    • Lug Seat Profile: Shank
    • Lug Nut Shank Length (in.): 0.55
    • Center Cap Included: No
    • Wheel Material: Wheel center (6061 aluminum) / Barrell (5054 aluminum)
    • Wheel/Rear (Wheel Center) Finish: Black Anodized w/ Machined Accents
    • Barrel Finish: Black
    • Mounting Type (Front or Rear): Rear
    • Valve Hole: .467"
    • Beadlock: No
    • SFI Approved: Yes

      • Torx Series Eclipse Finish Wheels

      RC Components Torx Eclipse Wheels feature a lightweight & scalloped beadlock design and a uniquely machined inner surface that offers superior grip to prevent tire slippage. Strength, Precision, and Style are what you can expect from RC Components' forged drag race wheels.

    Part TypeWheel
    Product LineRC Components Torx Eclipse Wheels
    BrandRC COMPONENTS
    Package Height19.0
    Package Width20.0
    Package Length21.0
    Weight25.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishN/A
    Wheel Size15 x 12 in.
    Dot ApprovedNo
    Quantity1
    Wheel LocationRear
    Load Rating (Lbs.)2000
    Wheel FinishBlack Anodized with Machined Accents with Black Barrel
    Functional BeadlockNo
    Beadlock TypeN/A
    Bolt Pattern5 x 4.5 in.
    Backspacing6 in.
    Center Bore Diameter3.18 in.
    Back Spacing6 in.
    Center Cap IncludedNo
    Load Rating2000 lbs.
    Beadlock FunctionalNo
    Wheel Diameter15 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Wheel Bolt Pattern5 x 4.50 in.
    Wheel Width12 in.
    Safety RatingSFI 15.1
    Sfi RatingSFI 15.1
    LocationRear
    Vendor Part NumberCSF601B-01E
    Package Qty1
    Package TypeEA
