![CSF855B-14E Impulse Eclipse Non-Beadlock Rear Wheel [Size: 15" x 12"] Black Anodized w/ Machined Accents & Black Barrel](https://www.jegs.com/images/mini_750/200/265/265-csf855b-14e.jpg)
Vehicle Info NeededRC COMPONENTSPART NUMBER: 265-CSF855B-14E

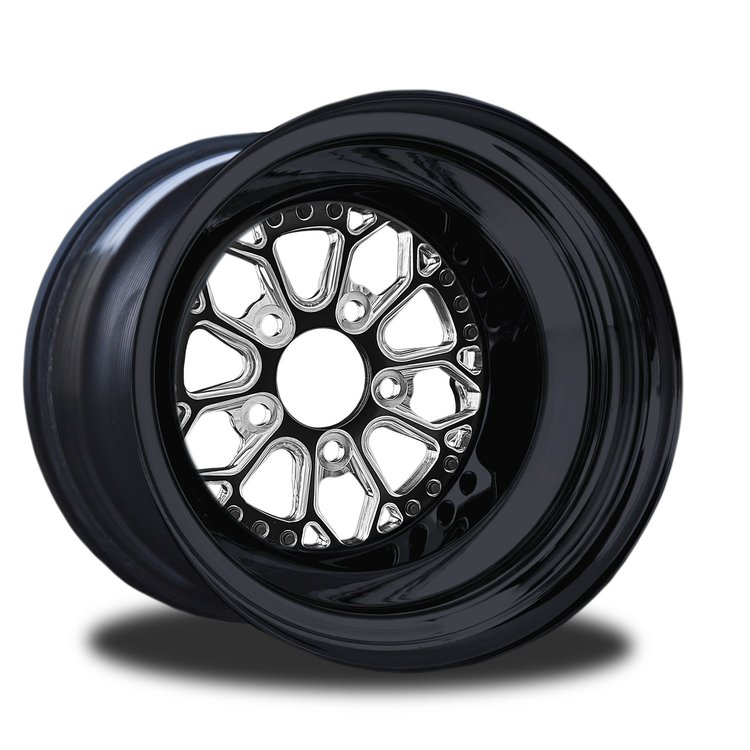

CSF855B-14E Impulse Eclipse Non-Beadlock Rear Wheel [Size: 15" x 12"] Black Anodized w/ Machined Accents & Black Barrel
$1,02000
Ships on 09/30/2026
Lowest Price Guarantee15" x 12"
Non-Beadlock
Rear Wheel
Non-Beadlock
Rear Wheel
Impulse Eclipse Non-Beadlock Rear WheelSize: 15" x 12" Bolt Pattern: 5 x 120 mm Backspace: 8.50" Hub Bore: 3.18 Load: 2,000 lbs. Finish: Black Anodized w/ Machined Accents & Black Barrel
JEGS How to Measure Wheel Fitment: Click Here
RC Components CSF855B-14E Features:
- Type of Wheel: Rear Wheel
- Lug Hole Count: 5
- Lug Seat Profile: Shank
- Lug Nut Shank Length (in.): 0.55
- Center Cap Included: No
- Wheel Material: Wheel center (6061 aluminum) / Barrell (5054 aluminum)
- Wheel/Rear (Wheel Center) Finish: Black Anodized w/ Machined Accents
- Barrel Finish: Black
- Mounting Type (Front or Rear): Rear
- Valve Hole: .467"
- Beadlock: No
- SFI Approved: Yes
Part TypeWheel
BrandRC COMPONENTS
Package Height19.0
Package Width20.0
Package Length21.0
Weight25.0 PG
Part CategoryPerformance Parts
Beadlock Ring FinishN/A
Wheel Size15 x 12 in.
Dot ApprovedNo
Quantity1
Wheel LocationRear
Load Rating (Lbs.)2000
Wheel FinishBlack Anodized with Machined Accents with Black Barrel
Functional BeadlockNo
Beadlock TypeN/A
Bolt Pattern5 x 120 mm
Backspacing8.5 in.
Center Bore Diameter3.18 in.
Back Spacing8.50 in.
Center Cap IncludedNo
Load Rating2000 lbs.
Beadlock FunctionalNo
Wheel Diameter15 in.
Wheel TypeDrag Race Wheels
Part FitmentUniversal
Wheel Bolt Pattern5 x 120 mm
Wheel Width12 in.
Safety RatingSFI 15.1
Sfi RatingSFI 15.1
LocationRear
Vendor Part NumberCSF855B-14E
Package Qty1
Package TypeEA
