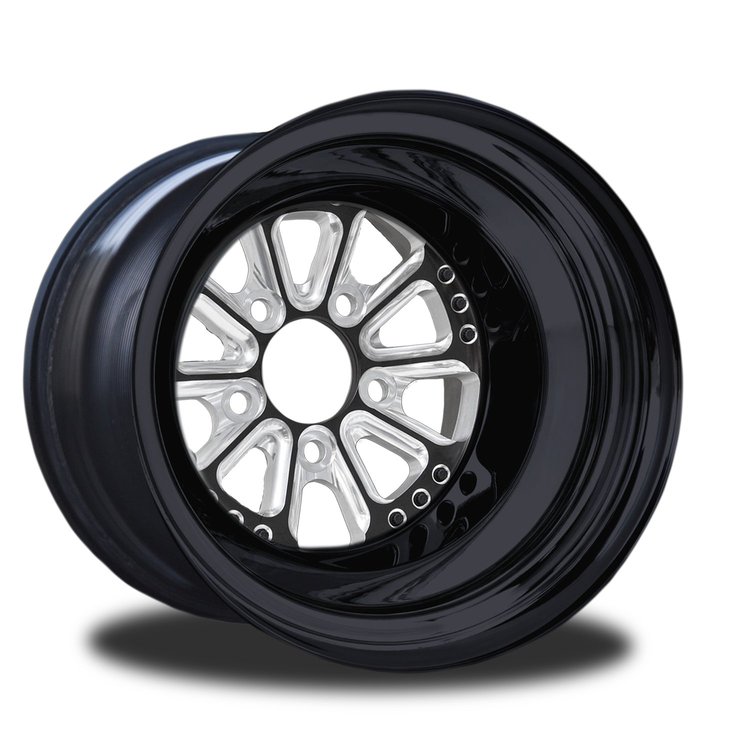

CSG855B-03E Hammer Eclipse Non-Beadlock Rear Wheel [Size: 15" x 13"] Black Anodized w/ Machined Accents & Black Barrel
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-CSG855B-03E

CSG855B-03E Hammer Eclipse Non-Beadlock Rear Wheel [Size: 15" x 13"] Black Anodized w/ Machined Accents & Black Barrel

$1,03500
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60
Deluxe Tire Pressure Gauge [0-60 psi]

JEGS

Deluxe Tire Pressure Gauge [0-60 psi]

Part Number : 555-65533
$2699$32.99
You Save$6.00

15" x 13"
Non-Beadlock
Rear Wheel
Hammer Eclipse Non-Beadlock Rear Wheel
  • Size: 15" x 13"
  • Bolt Pattern: 5 x 120 mm
  • Backspace: 8.50"
  • Hub Bore: 3.18"
  • Load: 2,000 lbs.
  • Finish: Black Anodized w/ Machined Accents & Black Barrel

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components CSG855B-03E Features:

    • Type of Wheel: Rear Wheel
    • Lug Hole Count: 5
    • Lug Seat Profile: Shank
    • Lug Nut Shank Length (in.): 0.55
    • Center Cap Included: No
    • Wheel Material: Wheel center (6061 aluminum) / Barrell (5054 aluminum)
    • Wheel/Rear (Wheel Center) Finish: Black Anodized w/ Machined Accents
    • Barrel Finish: Black
    • Mounting Type (Front or Rear): Rear
    • Valve Hole: .467"
    • Beadlock: No
    • SFI Approved: Yes

      • Hammer Series Eclipse Finish Wheels

      RC Components Hammer Eclipse Wheels feature engineering and design unlike anything on the market today, offering great looks, superior strength, and un-sprung weight that will give you an edge over the competition. The lightweight & scalloped beadlocks feature a uniquely machined inner surface that offers exceptional grip to prevent tire slippage.
    Part TypeWheel
    Product LineRC Components Hammer Eclipse Wheels
    BrandRC COMPONENTS
    Package Height19.0
    Package Width20.0
    Package Length21.0
    Weight25.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishN/A
    Wheel Size15 x 13 in.
    Dot ApprovedNo
    Quantity1
    Wheel LocationRear
    Load Rating (Lbs.)2000
    Wheel FinishBlack Anodized with Machined Accents with Black Barrel
    Functional BeadlockNo
    Beadlock TypeN/A
    Bolt Pattern5 x 120 mm
    Backspacing8.5 in.
    Center Bore Diameter3.18 in.
    Back Spacing8.50 in.
    Center Cap IncludedNo
    Load Rating2000 lbs.
    Beadlock FunctionalNo
    Wheel Diameter15 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Wheel Bolt Pattern5 x 120 mm
    Wheel Width13 in.
    Safety RatingSFI 15.1
    Sfi RatingSFI 15.1
    LocationRear
    Vendor Part NumberCSG855B-03E
    Package Qty1
    Package TypeEA
