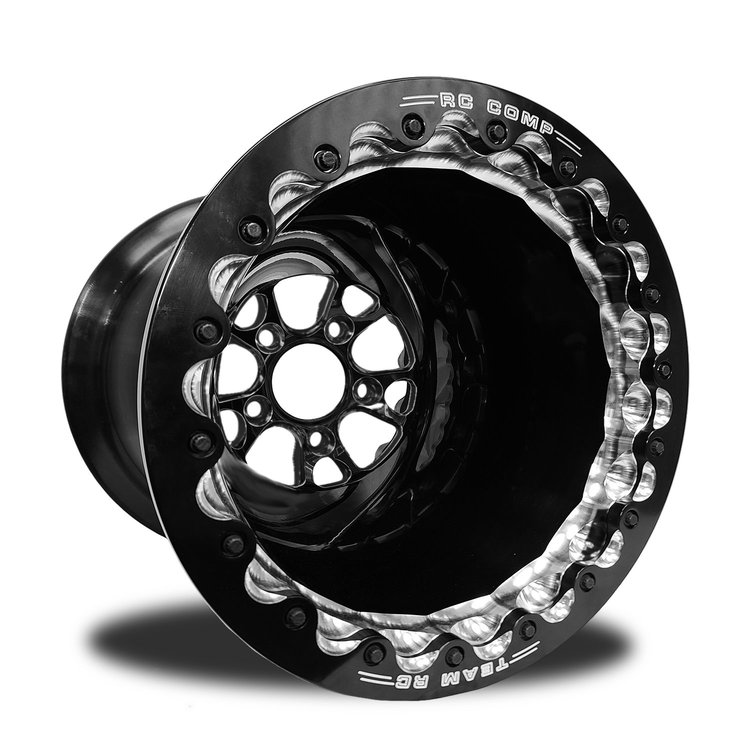

CSM50212B-E F-5 1-Piece Forged Double-Beadlock Rear Wheel [Size: 16" x 16"] Solid Black Anodized w/ Black Barrel
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-CSM50212B-E

CSM50212B-E F-5 1-Piece Forged Double-Beadlock Rear Wheel [Size: 16" x 16"] Solid Black Anodized w/ Black Barrel

$2,38933
ShippingShips on 10/01/2026
Lowest PriceLowest Price Guarantee

16" x 16"
1-Piece Forged Double-Beadlock
Rear Wheel
Solid Black Anodized w/ Black Barrel
F-5 1-Piece Forged Double-Beadlock Rear Wheel
  • Size: 16" x 16"
  • Bolt Pattern: 5 x 4.75"
  • Backspace: 5"
  • Hub Bore: 3.51"
  • Load: 2,000 lbs.
  • Finish: Solid Black Anodized & Black Barrel

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components CSM50212B-E Features:

    • Type of Wheel: Rear Wheel
    • Lug Hole Count: 5
    • Lug Seat Profile: Shank
    • Lug Nut Shank Length (in.):
    • Center Cap Included: No
    • Wheel Material: 6061 Aluminum
    • Wheel/Rear (Wheel Center) Finish: Solid Black Anodized
    • Barrel Finish: Black
    • Beadlock Ring Finish: Eclipse (Black and machined accents)
    • Mounting Type (Front or Rear): Rear
    • Valve Hole: .467"
    • Beadlock: Yes
    • Beadlock Type: Double
    • SFI Approved: Yes

      • F-5 One Piece Forged Beadlock Wheels

      RC Components F-5 Wheels are the latest game-changer from RC Comp. These wheels feature superior strength and top-of-the-line quality, & they carry an SFI 15.1 & 15.3 rating. They are the strongest, stiffest beadlock wheels, giving you that competitive edge. Available in polished or Eclipse finish.

    Part TypeWheel
    Product LineRC Components F-5 1-Piece Forged Double-Beadlock Wheels
    BrandRC COMPONENTS
    Package Height18.0
    Package Width20.0
    Package Length20.0
    Weight30.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishBlack with Machined Accents
    Wheel Size16 x 16 in.
    Dot ApprovedNo
    Wheel LocationRear
    Beadlock TypeDouble
    Load Rating (Lbs.)2000
    Quantity1
    Wheel FinishSolid Black Anodized with Black Barrel
    Functional BeadlockYes
    Bolt Pattern5 X 4.75 in.
    Back Spacing5 in.
    Backspacing5 in.
    Center Bore Diameter3.51 in.
    Beadlock FunctionalYes
    Center Cap IncludedNo
    Load Rating2000 lbs.
    Wheel Diameter16 in.
    Wheel Bolt Pattern5 x 4.75 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Sfi RatingSFI 15.1
    Wheel Width16 in.
    Safety RatingSFI 15.1
    LocationRear
    Vendor Part NumberCSM50212B-E
    Package Qty1
    Package TypeEA
