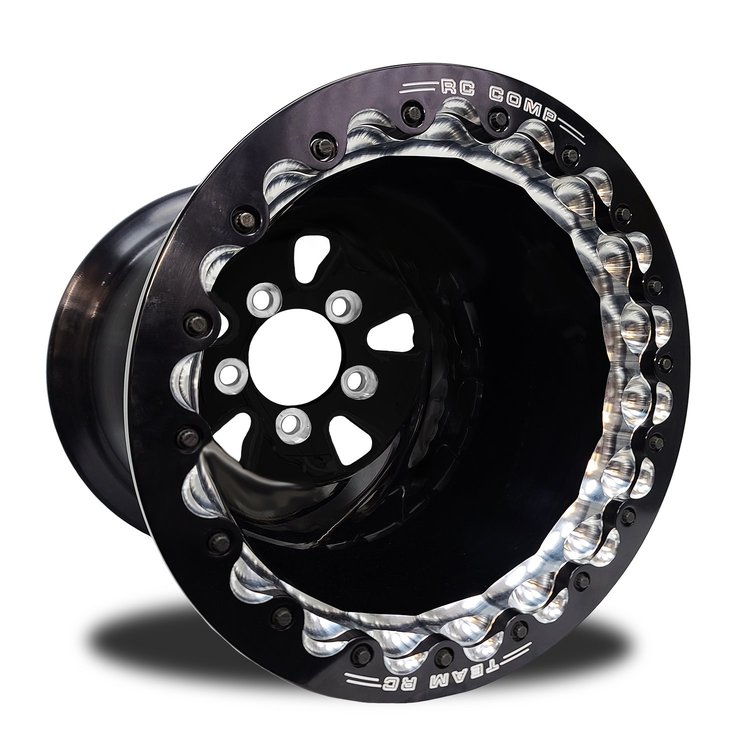

CSM50213B-E F-5 1-Piece Forged Double-Beadlock Rear Wheel [Size: 16" x 16"] Solid Black Anodized w/ Black Barrel
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-CSM50213B-E

CSM50213B-E F-5 1-Piece Forged Double-Beadlock Rear Wheel [Size: 16" x 16"] Solid Black Anodized w/ Black Barrel

$2,38933
ShippingShips on 12/15/2026
Lowest PriceLowest Price Guarantee

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60
Deluxe Tire Pressure Gauge [0-60 psi]

JEGS

Deluxe Tire Pressure Gauge [0-60 psi]

Part Number : 555-65533
$2699$32.99
You Save$6.00

16" x 16"
1-Piece Forged Double-Beadlock
Rear Wheel
Solid Black Anodized w/ Black Barrel
F-5 1-Piece Forged Double-Beadlock Rear Wheel
  • Size: 16" x 16"
  • Bolt Pattern: 5 x 4.75"
  • Backspace: 5"
  • Hub Bore: 3.51"
  • Load: 2,000 lbs.
  • Finish: Solid Black Anodized & Black Barrel

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components CSM50213B-E Features:

    • Type of Wheel: Rear Wheel
    • Lug Hole Count: 5
    • Lug Seat Profile: Shank
    • Lug Nut Shank Length (in.):
    • Center Cap Included: No
    • Wheel Material: 6061 Aluminum
    • Wheel/Rear (Wheel Center) Finish: Solid Black Anodized
    • Barrel Finish: Black
    • Beadlock Ring Finish: Eclipse (Black and machined accents)
    • Mounting Type (Front or Rear): Rear
    • Valve Hole: .467"
    • Beadlock: Yes
    • Beadlock Type: Double
    • SFI Approved: Yes
    • F-5 One Piece Forged Beadlock Wheels

      RC Components F-5 Wheels are the latest game-changer from RC Comp. These wheels feature superior strength and top-of-the-line quality, & they carry an SFI 15.1 & 15.3 rating. They are the strongest, stiffest beadlock wheels, giving you that competitive edge. Available in polished or Eclipse finish.

    Part TypeWheel
    Product LineRC Components F-5 1-Piece Forged Double-Beadlock Wheels
    BrandRC COMPONENTS
    Package Height18.0
    Package Width20.0
    Package Length20.0
    Weight32.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishBlack with Machined Accents
    Wheel Size16 x 16 in.
    Dot ApprovedNo
    Wheel LocationRear
    Beadlock TypeDouble
    Load Rating (Lbs.)2000
    Quantity1
    Wheel FinishSolid Black Anodized with Black Barrel
    Functional BeadlockYes
    Bolt Pattern5 X 4.75 in.
    Back Spacing5 in.
    Backspacing5 in.
    Center Bore Diameter3.51 in.
    Beadlock FunctionalYes
    Center Cap IncludedNo
    Load Rating2000 lbs.
    Wheel Diameter16 in.
    Wheel Bolt Pattern5 x 4.75 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Sfi RatingSFI 15.3
    Wheel Width16 in.
    Safety RatingSFI 15.3
    LocationRear
    Vendor Part NumberCSM50213B-E
    Package Qty1
    Package TypeEA
