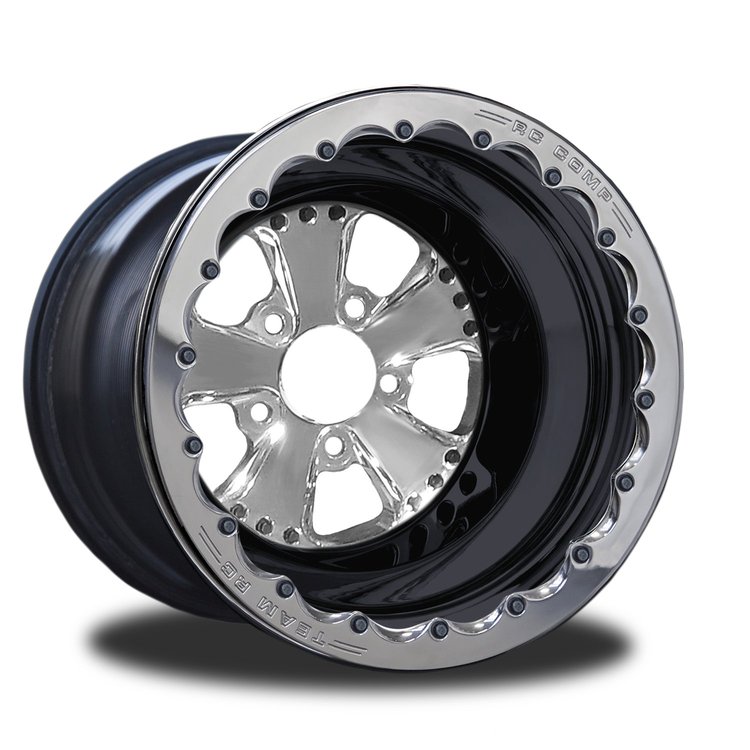

CSE506B1P-10P Retro Polished Single-Beadlock Rear Wheel [Size: 15" x 11"] Polished w/ Black Barrel
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-J017485

CSE506B1P-10P Retro Polished Single-Beadlock Rear Wheel [Size: 15" x 11"] Polished w/ Black Barrel

$1,54500
ShippingShips on 12/03/2026
Lowest PriceLowest Price Guarantee

Items You Need

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

JEGS

Wheel Lug Nut Impact Socket Set, 1/2 in. Drive [SAE/Metric 5-Piece]

Part Number : 555-W32902
$4199$46.99
You Save$5.00
Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

JEGS

Torque Limiting Extensions, 1/2 in. Drive [5-Piece]

Part Number : 555-W32903
$5699$62.99
You Save$6.00
1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

JEGS

1/2 in. Drive Torque Wrench [10 to 150 ft. lbs.]

Part Number : 555-M200DB
$5239$56.99
You Save$4.60
Deluxe Tire Pressure Gauge [0-60 psi]

JEGS

Deluxe Tire Pressure Gauge [0-60 psi]

Part Number : 555-65533
$2699$32.99
You Save$6.00

15" x 11"
Single-Beadlock
Rear Wheel
Retro Polished Single-Beadlock Rear Wheel
  • Size: 15" x 11"
  • Bolt Pattern: 5 x 5.50"
  • Backspace: 5"
  • Hub Bore: 3.18"
  • Load: 2,000 lbs.
  • Finish: Polished & Black Barrel

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components CSE506B1P-10P Features:

    • Type of Wheel: Rear Wheel
    • Lug Hole Count: 5
    • Lug Seat Profile: Shank
    • Lug Nut Shank Length (in.): 0.55
    • Center Cap Included: No
    • Wheel Material: Wheel center (6061 aluminum) / Barrell (5054 aluminum)
    • Wheel/Rear (Wheel Center) Finish: Polished
    • Barrel Finish: Black
    • Beadlock Ring Finish: Polished
    • Mounting Type (Front or Rear): Rear
    • Valve Hole: .467"
    • Beadlock: Yes
    • Beadlock Type: Single
    • SFI Approved: Yes

      • Retro Series Polished Finish Wheels

      RC Components Retro Polished Wheels are a tribute to that clean, simple, nostalgic 5-spoke design that helped define a generation of racing. The unique engineering of these wheels offers superior strength while being among the lightest wheels in the industry, giving you the edge over the competition.
    Part TypeWheel
    Product LineRC Components Retro Polished Wheels
    BrandRC COMPONENTS
    Package Height19.0
    Package Width20.0
    Package Length21.0
    Weight26.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishPolished
    Wheel Size15 x 11 in.
    Dot ApprovedNo
    Wheel LocationRear
    Beadlock TypeSingle
    Load Rating (Lbs.)2000
    Quantity1
    Wheel FinishPolished with Black Barrel
    Functional BeadlockYes
    Bolt Pattern5 x 5.5 in.
    Back Spacing5 in.
    Backspacing5 in.
    Center Bore Diameter3.18 in.
    Beadlock FunctionalYes
    Center Cap IncludedNo
    Load Rating2000 lbs.
    Wheel Diameter15 in.
    Wheel Bolt Pattern5 x 5.50 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Sfi RatingSFI 15.1
    Wheel Width11 in.
    Safety RatingSFI 15.1
    LocationRear
    Vendor Part NumberCSE506B1P-10P
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
