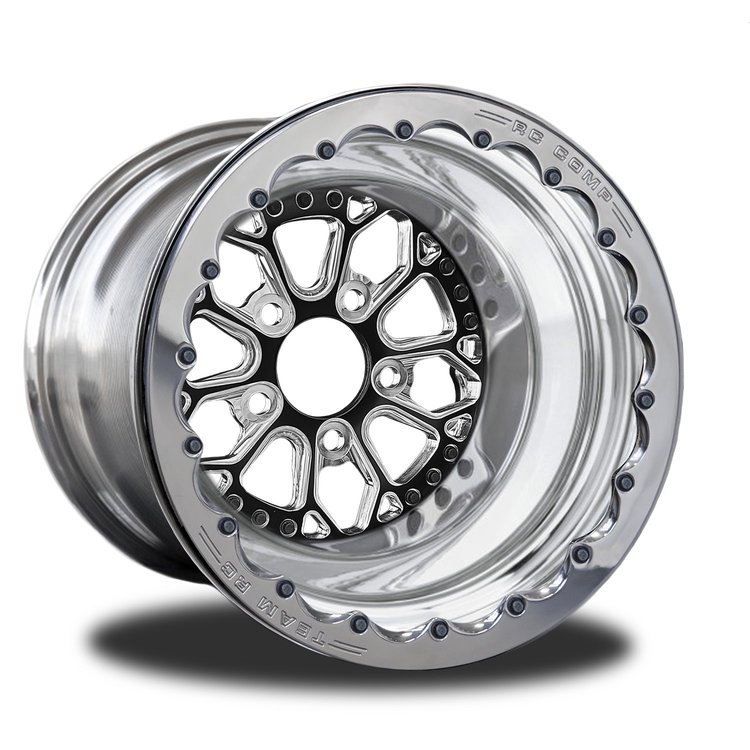

CSC403P2P-14EP Impulse Eclipse Prism Double-Beadlock Rear Wheel [Size: 15" x 9"] Black Anodized w/ Polish/Mach Accents & Barrel
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-J020081

CSC403P2P-14EP Impulse Eclipse Prism Double-Beadlock Rear Wheel [Size: 15" x 9"] Black Anodized w/ Polish/Mach Accents & Barrel

$1,84500
ShippingShips on 09/30/2026
Lowest PriceLowest Price Guarantee

15" x 9"
Double-Beadlock
Rear Wheel
Impulse Eclipse Prism Double-Beadlock Rear Wheel
  • Size: 15" x 9"
  • Bolt Pattern: 5 x 5"
  • Backspace: 4"
  • Hub Bore: 3.18"
  • Load: 2000 lbs.
  • Finish: Black Anodized w/ Polish/Mach Accents & Polished Barrel

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components CSC403P2P-14EP Features:

    • Type of Wheel: Rear Wheel
    • Lug Hole Count: 5
    • Lug Seat Profile: Shank
    • Lug Nut Shank Length (in.): 0.55
    • Center Cap Included: No
    • Wheel Material: Wheel center (6061 aluminum) / Barrell (5054 aluminum)
    • Wheel/Rear (Wheel Center) Finish: Black Anodized w/ Polished/Machined Accents
    • Barrel Finish: Polished
    • Beadlock Ring Finish: Polished
    • Mounting Type (Front or Rear): Rear
    • Valve Hole: .467"
    • Beadlock: Yes
    • Beadlock Type: Double
    • SFI Approved: Yes

      • Impulse Series Eclipse Prism Finish Wheels

      RC Components Impulse Eclipse Prism Wheels feature engineering and design unlike anything on the market today, offering great looks, superior strength, and un-sprung weight that will give you an edge over the competition. Strength, Precision, and Style are what you can expect from RC Components' forged race wheels.
    Part TypeWheel
    Product LineRC Components Impulse Eclipse Prism Wheels
    BrandRC COMPONENTS
    Package Height19.0
    Package Width20.0
    Package Length21.0
    Weight27.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishPolished
    Wheel Size15 x 9 in.
    Dot ApprovedNo
    Wheel LocationRear
    Beadlock TypeDouble
    Load Rating (Lbs.)2000
    Quantity1
    Wheel FinishBlack Anodized with Polished, Machined Accents with Polished Barrel
    Functional BeadlockYes
    Bolt Pattern5 x 5 in.
    Back Spacing4 in.
    Backspacing4 In.
    Center Bore Diameter3.18 in.
    Beadlock FunctionalYes
    Center Cap IncludedNo
    Load Rating2000 lbs.
    Wheel Diameter15 in.
    Wheel Bolt Pattern5 x 5 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Sfi RatingSFI 15.1
    Wheel Width9 in.
    Safety RatingSFI 15.1
    LocationRear
    Vendor Part NumberCSC403P2P-14EP
    Package Qty1
    Package TypeEA
