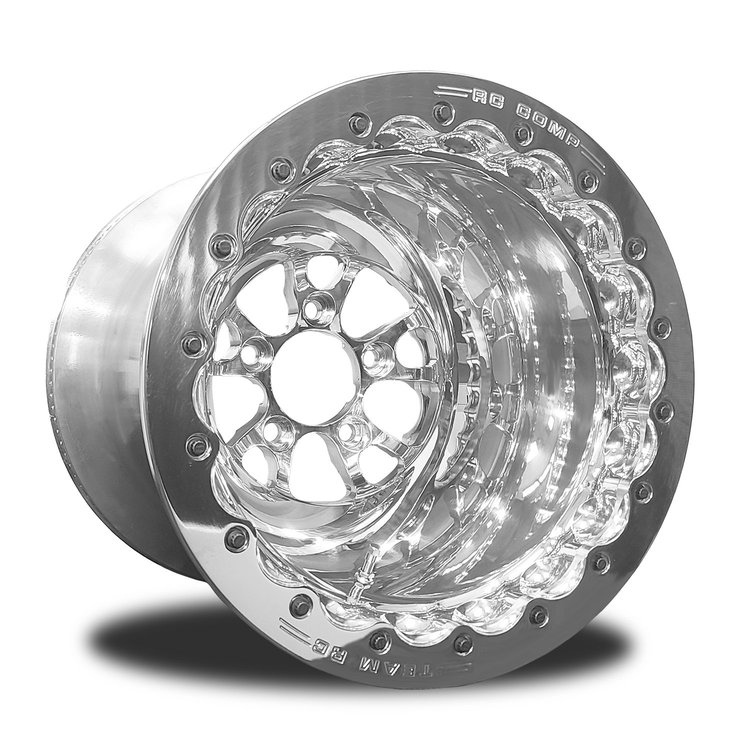

ZCS-O402-12P F-5 1-Piece Forged Double Beadlock Wheel [Size: 16"x18"] Polished Aluminum Finish
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-ZCS-O402-12P

ZCS-O402-12P F-5 1-Piece Forged Double Beadlock Wheel [Size: 16"x18"] Polished Aluminum Finish

$2,96000
ShippingShips on 09/30/2026
Lowest PriceLowest Price Guarantee

16" x 18"
1-Piece Forged Double-Beadlock
Rear Wheel
Polished Aluminum
F-5 1-Piece Forged Double Beadlock Wheel
  • Size: 16"x18"
  • Bolt Pattern: 5 x 4.75"
  • Backspace: 4"
  • Hub Bore: 3.51"
  • Finish: Polished Aluminum

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components ZCS-O402-12P Features:

    The F-5 one piece forged beadlock wheel is the latest game changer from RC Comp. They showcase superior strength, top of the line quality, and the carry an SFI 15.1 & 15.3 rating. They are the strongest, stiffest beadlock wheel offered from RC Comp, and are exactly what you need to get that competitive edge.

    • Wheel Diameter: 16 in.
    • Wheel Width: 18 in.
    • Wheel Material: 60-61 Aluminum
    • Center Cap Included: No
    • Beadlock Ring Finish: Polished
    • Mounting Type: Rear
    • Valve Hole: 0.357 in.
    • SFI Approved: Yes

      • F-5 One Piece Forged Beadlock Wheels

      RC Components F-5 Wheels are the latest game-changer from RC Comp. These wheels feature superior strength and top-of-the-line quality, & they carry an SFI 15.1 & 15.3 rating. They are the strongest, stiffest beadlock wheels, giving you that competitive edge. Available in polished or Eclipse finish.

    Part TypeWheel
    Product LineRC Components F-5 1-Piece Forged Double-Beadlock Wheels
    BrandRC COMPONENTS
    Package Height20.0
    Package Width20.0
    Package Length21.0
    Weight25.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishPolished
    Wheel Size16 x 18 in.
    Dot ApprovedNo
    Beadlock TypeDouble
    Quantity1
    Wheel MaterialPolished Aluminum
    Functional BeadlockYes
    Wheel FinishPolished Aluminum
    Back Spacing4 in.
    Bolt Pattern5 X 4.75 in.
    Backspacing4 In.
    Beadlock FunctionalYes
    Center Bore Diameter3.51 in.
    Center Cap IncludedNo
    Wheel Diameter16 in.
    Wheel Bolt Pattern5 x 4.75 in.
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Sfi Rating15.1
    Wheel Width18 in.
    Safety RatingSFI 15.1
    Vendor Part NumberZCS-O402-12P
    Package Qty1
    Package TypeEA
