Made in USA

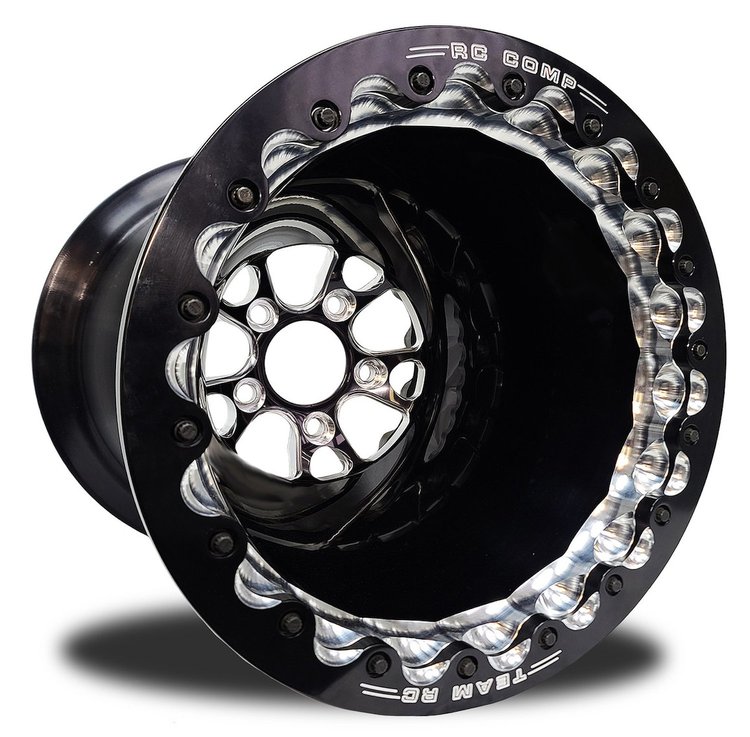

ZCS-O506-12E F-5 1-Piece Forged Double Beadlock Wheel [Size: 16"x18"] Anodized Black w/ Machined Accents Finish
InfoVehicle Info Needed
RC COMPONENTSPART NUMBER: 265-ZCS-O506-12E

ZCS-O506-12E F-5 1-Piece Forged Double Beadlock Wheel [Size: 16"x18"] Anodized Black w/ Machined Accents Finish

$3,08000
ShippingShips on 09/30/2026
Lowest PriceLowest Price Guarantee

16" x 18"
1-Piece Forged Double-Beadlock
Rear Wheel
Anodized Black w/ Machined Accents
F-5 1-Piece Forged Double Beadlock Wheel
  • Size: 16"x18"
  • Bolt Pattern: 5 x 5.5"
  • Backspace: 5"
  • Hub Bore: 3.51"
  • Finish: Anodized Black w/ Machined Accents

    JEGS How to Measure Wheel Fitment: Click Here

    RC Components ZCS-O506-12E Features:

    The F-5 one piece forged beadlock wheel is the latest game changer from RC Comp. They showcase superior strength, top of the line quality, and the carry an SFI 15.1 & 15.3 rating. They are the strongest, stiffest beadlock wheel offered from RC Comp, and are exactly what you need to get that competitive edge.

    • Wheel Diameter: 16 in.
    • Wheel Width: 18 in.
    • Wheel Material: 60-61 Aluminum
    • Center Cap Included: No
    • Beadlock Ring Finish: Anodized Black w/ Machined Accents
    • Mounting Type: Rear
    • Valve Hole: 0.357 in.
    • SFI Approved: Yes

      • F-5 One Piece Forged Beadlock Wheels

      RC Components F-5 Wheels are the latest game-changer from RC Comp. These wheels feature superior strength and top-of-the-line quality, & they carry an SFI 15.1 & 15.3 rating. They are the strongest, stiffest beadlock wheels, giving you that competitive edge. Available in polished or Eclipse finish.

    Part TypeWheel
    Product LineRC Components F-5 1-Piece Forged Double-Beadlock Wheels
    BrandRC COMPONENTS
    Package Height20.0
    Package Width20.0
    Package Length21.0
    Weight25.0 PG
    Part CategoryPerformance Parts
    Beadlock Ring FinishBlack Anodized with Machined Accents
    Wheel Size16 x 18 in.
    Dot ApprovedNo
    Beadlock TypeDouble
    Quantity1
    Wheel Material6061 Aluminum
    Wheel FinishBlack Anodized with Machined Accents
    Back Spacing5 in.
    Functional BeadlockYes
    Bolt Pattern5 x 5.5 in.
    Backspacing5 in.
    Beadlock FunctionalYes
    Center Bore Diameter3.51 in.
    Center Cap IncludedNo
    Wheel Bolt Pattern5 x 5.5 in.
    Wheel Diameter16 in.
    Sfi Rating15.1
    Wheel TypeDrag Race Wheels
    Part FitmentUniversal
    Wheel Width18 in.
    Safety RatingSFI 15.1
    Vendor Part NumberZCS-O506-12E
    Package Qty1
    Package TypeEA
