Product Discontinued

RICHMOND GEARPART NUMBER: 836-49-0001-1

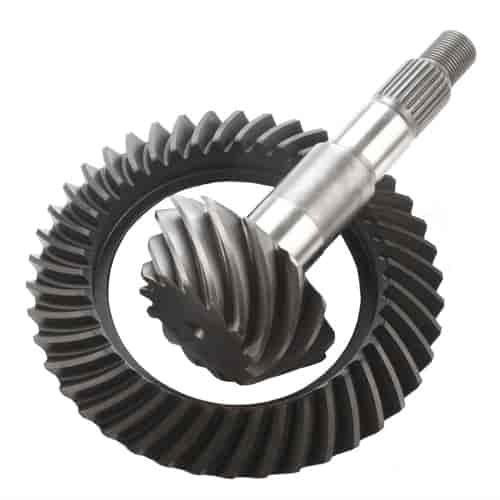

GM Ring & Pinion Gear Set Ratio: 3.08

Name: GM Ring & Pinion Gear Set Ratio: 3.08
Brand: RICHMOND GEAR
SKU: 836-49-0001-1
Price: 332.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM 7.5"/7.625"

2 Series Fits 3.08 Lower Carrier, 3 Series Fits 3.23 Higher Carrier

Pinion Diameter: 1.438"

27 Spline

Ratio: 3.08
Teeth: 40-13
Series: 2
Does not fit Monza
For 1977-81 applications, use Installation Kit #836-83-1016
For 1982-98 applications, use Installation Kit #836-83-1044

Part TypeRing and Pinion

BrandRICHMOND GEAR

Package Height5.3

Package Width11.2

Package Length15.0

Weight12.78 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth13

Ring Gear Tooth Quantity40

Carrier Series2

QuantitySold as a set

Differential Carrier Break3.08 and Lower

Cover Bolt Quantity10

Pinion Spline Count27

Ring Gear Material8620 Steel

Ring Gear Diameter7.5 in (190.5 mm)

Ring And Pinion Ratio3.08:1

Pinion Shaft Diameter1.438 in (36.5 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity13

Axle TypeGM 7.5 in.

Ring Gear Bolts10

Cover Bolts10

Ring Gear Teeth40

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part Number49-0001-1

Package Qty1

Package TypeEA
