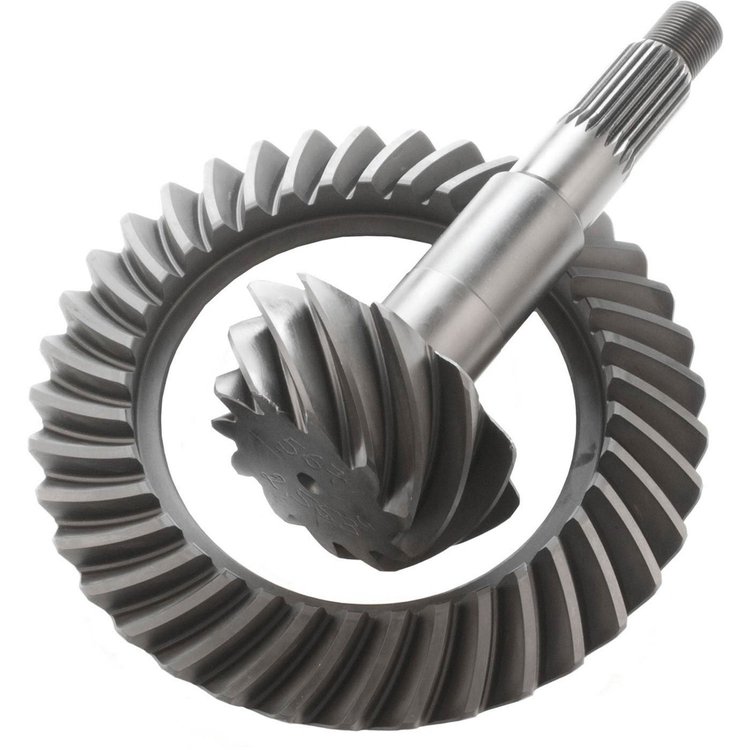

GM Ring & Pinion Gear Set Ratio: 3.08
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-49-0011-1

GM Ring & Pinion Gear Set Ratio: 3.08

$47129
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM 8.2"
  • Fits 3.08 and Higher Carrier
  • Pinion Diameter: 1.438"
  • 25 Spline
    • GM Ring & Pinion Gear Set
    • Ratio: 3.08
    • Teeth: 37-12

    • 1964-70 Chevy II, 1964-72 Chevelle/El Camino, 1965-70 Bel Air/Caprice/Impala, 1967-70 Camaro, 1970-72 Nova
    • Fits 3.08+ carrier
    • Use Installation Kit #836-83-1022
    • Use crush sleeve from GM 7.5" 10-Bolt or Pontiac 8.2" 10-Bolt

      Richmond Gear is the leading manufacturer of professional quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. 10 bolt street gears are designed to withstand the rigors of everyday driving, as well as a weekend at the track. Gears available for nearly all popular domestic applications.

      Choose The Gear Ratio That Is Best For Your Vehicle
    Part TypeRing and Pinion
    Product LineRichmond Gear GM 10-Bolt Ring & Pinion Sets
    BrandRICHMOND GEAR
    Package Height5.3
    Package Width11.1
    Package Length15.0
    Weight12.67 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth12
    Ring Gear Tooth Quantity37
    Carrier Series3
    QuantitySold as a set
    Differential Carrier Break3.08 and Higher
    Cover Bolt Quantity10
    Pinion Spline Count25
    Ring Gear Material8620 Steel
    Ring Gear Diameter8.2 in (208.3 mm)
    Ring And Pinion Ratio3.08:1
    Pinion Shaft Diameter1.438 in (36.5 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity12
    Axle TypeGM 8.2 in.
    Ring Gear Bolts10
    Cover Bolts10
    Ring Gear Teeth37
    Ring Gear Bolt Quantity10
    Part FitmentSemi Universal
    Vendor Part Number49-0011-1
    Package Qty1
    Package TypeEA
