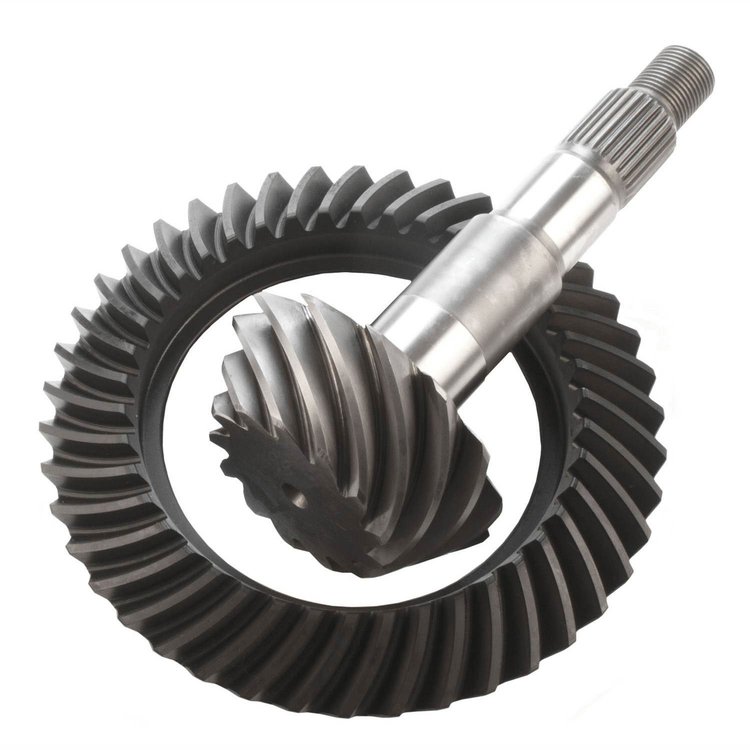

GM Ring & Pinion Gear Set Ratio: 3.23
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-49-0044-1

GM Ring & Pinion Gear Set Ratio: 3.23

$41667
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM 7.5"/7.625"
  • 2 Series Fits 3.08 Lower Carrier, 3 Series Fits 3.23 Higher Carrier
  • Pinion Diameter: 1.438"
  • 27 Spline
      • GM Ring & Pinion Gear Set
    • Ratio: 3.23
    • Teeth: 42-13
    • Series: 3

    • Does not fit Monza
    • For 1977-81 applications, use Installation Kit #836-83-1016
    • For 1982-98 applications, use Installation Kit #836-83-1044
    Part TypeRing and Pinion
    BrandRICHMOND GEAR
    Package Height5.2
    Package Width11.1
    Package Length15.0
    Weight11.79 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth13
    Ring Gear Tooth Quantity42
    Carrier Series3
    QuantitySold as a set
    Differential Carrier Break3.23 and Higher
    Cover Bolt Quantity10
    Pinion Spline Count27
    Ring Gear Material8620 Steel
    Ring Gear Diameter7.5 in (190.5 mm)
    Ring And Pinion Ratio3.23:1
    Pinion Shaft Diameter1.438 in (36.5 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity13
    Axle TypeGM 7.5 in.
    Ring Gear Bolts10
    Cover Bolts10
    Ring Gear Teeth42
    Ring Gear Bolt Quantity10
    Part FitmentSemi Universal
    Vendor Part Number49-0044-1
    Package Qty1
    Package TypeEA
