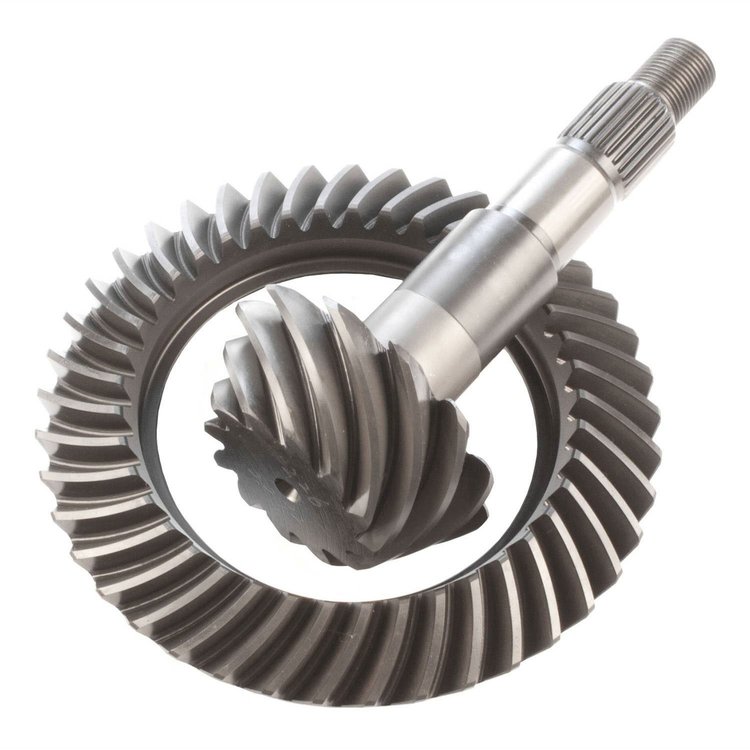

GM Ring & Pinion Gear Set Ratio: 2.73
Product Discontinued
RICHMOND GEARPART NUMBER: 836-49-0048-1

GM Ring & Pinion Gear Set Ratio: 2.73

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM 7.5"/7.625"
  • 2 Series Fits 3.08 Lower Carrier, 3 Series Fits 3.23 Higher Carrier
  • Pinion Diameter: 1.438"
  • 27 Spline
    • GM Ring & Pinion Gear Set
    • Ratio: 2.73
    • Teeth: 41-15
    • Series: 2

    • 1977-87 El Camino, 1977-2002 All GM, 1982-2002 Camaro/Firebird, 1983-2002 S10/S15 Rear, 1985-2002 Astro/Safari
    • Does not fit Monza
    • For 1977-81 applications, use Installation Kit #836-83-1016
    • For 1982-98 applications, use Installation Kit #836-83-1044

      Richmond Gear is the leading manufacturer of professional quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. 10 bolt street gears are designed to withstand the rigors of everyday driving, as well as a weekend at the track. Gears available for nearly all popular domestic applications.

      Choose The Gear Ratio That Is Best For Your Vehicle
    Part TypeRing and Pinion
    Product LineRichmond Gear GM 10-Bolt Ring & Pinion Sets
    BrandRICHMOND GEAR
    Package Height5.2
    Package Width11.1
    Package Length15.0
    Weight13.35 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth15
    Ring Gear Tooth Quantity41
    Carrier Series2
    QuantitySold as a set
    Differential Carrier Break3.08 and Lower
    Cover Bolt Quantity10
    Pinion Spline Count27
    Ring Gear Material8620 Steel
    Ring Gear Diameter7.5 in (190.5 mm)
    Ring And Pinion Ratio2.73:1
    Pinion Shaft Diameter1.438 in (36.5 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity15
    Axle TypeGM 7.5 in.
    Ring Gear Bolts10
    Cover Bolts10
    Ring Gear Teeth41
    Ring Gear Bolt Quantity10
    Part FitmentSemi Universal
    Vendor Part Number49-0048-1
    Package Qty1
    Package TypeEA
