Vehicle Info Needed

RICHMOND GEARPART NUMBER: 836-49-0050-1

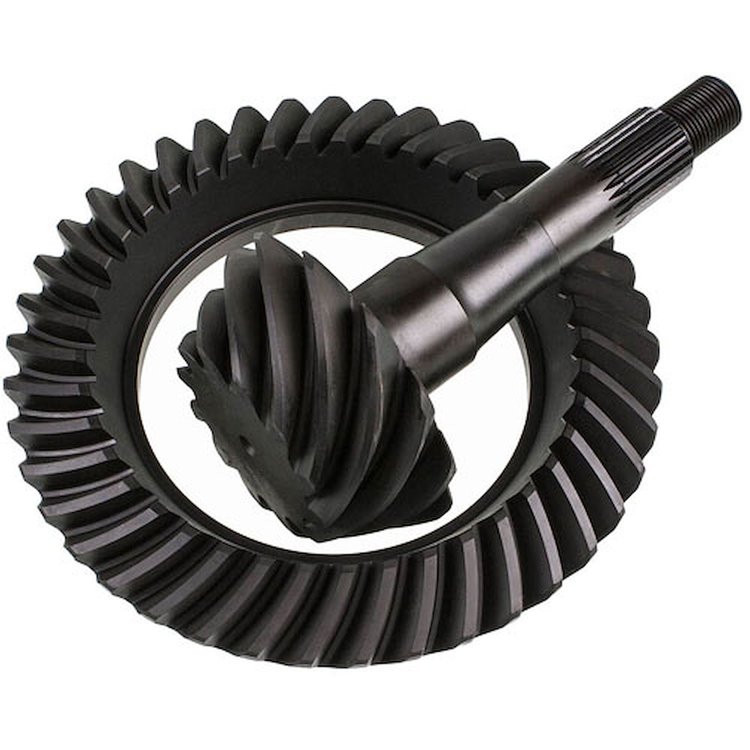

GM Ring & Pinion Gear Set Ratio: 3.90

Name: GM Ring & Pinion Gear Set Ratio: 3.90
Brand: RICHMOND GEAR
SKU: 836-49-0050-1
Price: 526.00 USD
Availability: InStock

^$526⁰⁰

Ships Tomorrow

Lowest Price Guarantee

GM 8.5" (O Axle Only)

Fits 2.93-3.23 Carrier

Pinion Diameter: 1.626"

27 Spline

Ratio: 3.90
Teeth: 39-10

Irregular cover with 12 holes, 10 bolts

Part TypeRing and Pinion

BrandRICHMOND GEAR

Package Height5.2

Package Width11.2

Package Length15.1

Weight16.09 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth10

Ring Gear Tooth Quantity39

Carrier Series3

QuantitySold as a set

Differential Carrier Break2.93 to 3.23

Cover Bolt Quantity10

Pinion Spline Count27

Ring Gear Material8620 Steel

Ring Gear Diameter8.5 in (215.9 mm)

Ring And Pinion Ratio3.90:1

Pinion Shaft Diameter1.626 in (41.3 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity10

Axle TypeGM 10 Bolt

Ring Gear Bolts10

Cover Bolts12

Ring Gear Teeth39

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part Number49-0050-1

Package Qty1

Package TypeEA
