RICHMOND GEARPART NUMBER: 836-49-0082-1

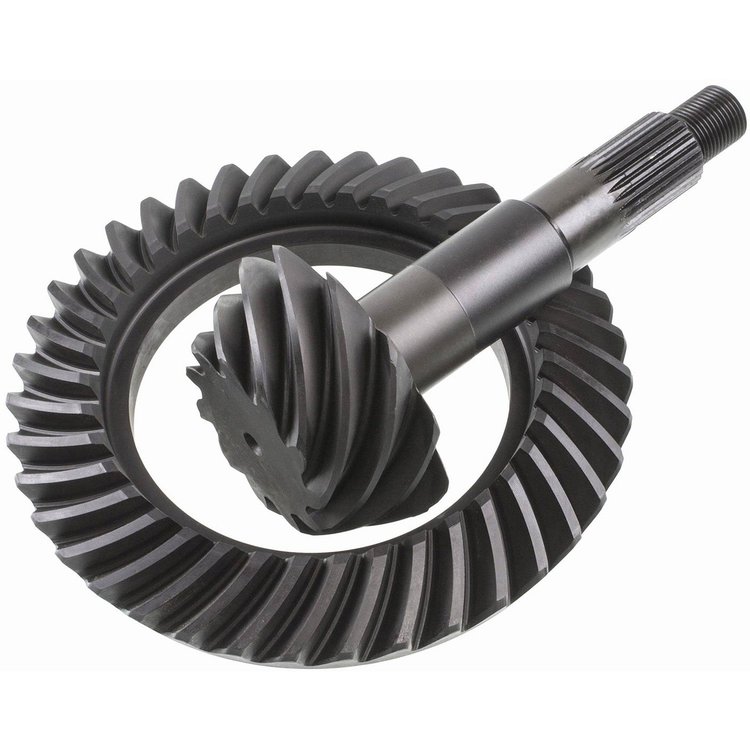

GM Ring & Pinion Gear Set Ratio: 3.55

Name: GM Ring & Pinion Gear Set Ratio: 3.55
Brand: RICHMOND GEAR
SKU: 836-49-0082-1
Price: 430.51 USD
Availability: InStock

^$430⁵¹

1 left in stock

Ships Today

Lowest Price Guarantee

GM 8.2" (B or P Axle Only)

Fits 3.36 and Higher Carrier

Pinion Diameter: 1.438"

27 Spline

Ratio: 3.55
Teeth: 39-11
Use Installation Kit #836-83-1040-1
Use 3.36+ carrier, 3/8" holes (does not fit 2.56 through 3.23 carrier)

Part TypeRing and Pinion

BrandRICHMOND GEAR

Package Height5.3

Package Width11.0

Package Length15.1

Weight12.9 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth11

Ring Gear Tooth Quantity39

Carrier Series3

QuantitySold as a set

Differential Carrier Break3.08 and Higher

Cover Bolt Quantity10

Pinion Spline Count27

Ring Gear Material8620 Steel

Ring Gear Diameter8.2 in (208.3 mm)

Ring And Pinion Ratio3.55:1

Pinion Shaft Diameter1.438 in (36.5 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity11

Axle TypeGM 10 Bolt

Ring Gear Bolts10

Cover Bolts10

Ring Gear Teeth39

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part Number49-0082-1

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
