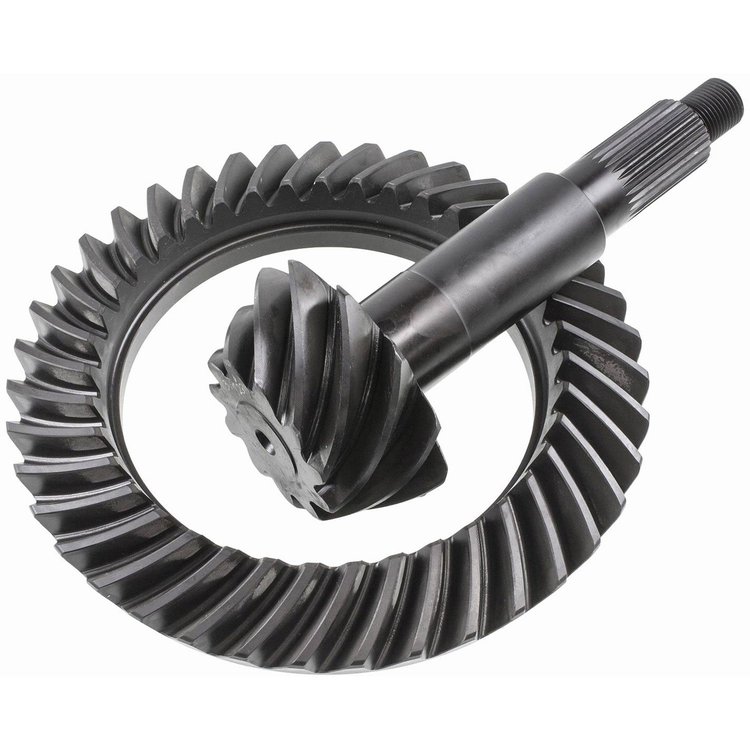

Dana 60 Ring & Pinion Gear Set Ratio: 3.54

Vehicle Info Needed

RICHMOND GEARPART NUMBER: 836-49-0129-1

Dana 60 Ring & Pinion Gear Set Ratio: 3.54

Name: Dana 60 Ring & Pinion Gear Set Ratio: 3.54
Brand: RICHMOND GEAR
SKU: 836-49-0129-1
Price: 407.85 USD
Availability: InStock

^$407⁸⁵

3 left in stock

Ships Today

Lowest Price Guarantee

Dana 60

2 Series Fits 3.07-4.10 Carriers. 3 Series Fits 4.56 and Numerically Higher Carriers.

Ring Gear Diameter: 9.75"

Pinion Diameter: 1.626"

12 Bolt, 29 Spline

Ratio: 3.54
Teeth: 39-11
Series: 2
Use Installation Kit #836-83-1034-1
Applications
1966-73 Dodge/Plymouth with Hemi Engine
1966-84 Jeep J10
1967-76 Ford F-250 (front)
1968-86 Ford F-250/F-350 & E-250/E-350 (rear)
1969-2002 Chrysler W200/W2500, D200/D2500, D300/D3500 (rear)
1975-2002 Chrysler W200/W2500 & W300/W3500 (front)
1977-2002 Ford F-250/F-350 (front)
1977-2002 Chevy K30/K3500 (front)

Part TypeRing and Pinion

BrandRICHMOND GEAR

Package Height5.3

Package Width11.2

Package Length15.2

Weight17.41 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth11

Ring Gear Tooth Quantity39

Carrier Series2

QuantitySold as a set

Differential Carrier Break3.07 to 4.10

Cover Bolt Quantity10

Pinion Spline Count29

Ring Gear Material8620 Steel

Ring Gear Diameter9.75 in (247.7 mm)

Ring And Pinion Ratio3.54:1

Pinion Shaft Diameter1.626 in (41.3 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity11

Axle TypeDana 60

Ring Gear Bolts12

Cover Bolts10

Ring Gear Teeth39

Ring Gear Bolt Quantity12

Part FitmentSemi Universal

Vendor Part Number49-0129-1

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
