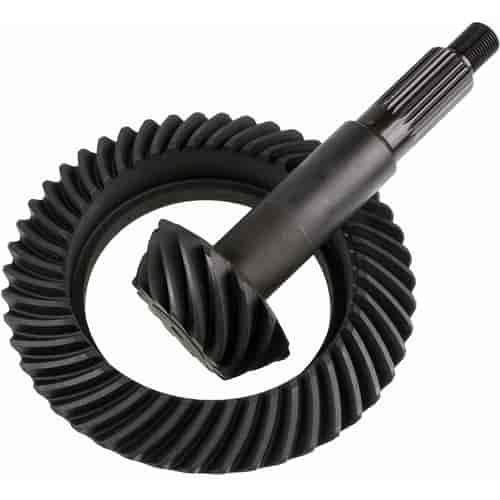

Dana 36 Ring & Pinion Gear Set Ratio: 3.54
Product Discontinued
RICHMOND GEARPART NUMBER: 836-49-0143-1

Dana 36 Ring & Pinion Gear Set Ratio: 3.54

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Dana 36
  • Fits Carriers 2.73 and Numerically Lower
  • Pinion Diameter: 1.376"
  • 26-Spline
      • Dana 36 Ring & Pinion Gear Set
    • Ratio: 3.54
    • Teeth: 46-13

    • Fits 1984 to 1996-1/2 Corvette
      Richmond Gear is the leading manufacturer of professional quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. Dana Street Gears are designed to withstand the rigors of everyday driving, and a weekend at the trails. Gears available for nearly all popular domestic applications.

      Choose The Gear Ratio That Is Best For Your Vehicle      .
    Part TypeRing and Pinion
    Product LineRichmond Gear Dana Ring & Pinion Sets
    BrandRICHMOND GEAR
    Package Height5.25
    Package Width11.0
    Package Length15.12
    Weight13.35 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth13
    Ring Gear Tooth Quantity46
    Carrier Series2
    QuantitySold as a set
    Differential Carrier Break2.73 and Lower
    Cover Bolt Quantity10
    Pinion Spline Count26
    Ring Gear Material8620 Steel
    Ring Gear Diameter7.725 in (196.2 mm)
    Ring And Pinion Ratio3.54:1
    Pinion Shaft Diameter1.376 in (35 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity13
    Axle TypeDana 36
    Ring Gear Bolts10
    Cover Bolts10
    Ring Gear Teeth46
    Ring Gear Bolt Quantity10
    Vendor Part Number49-0143-1
    Package Qty1
    Package TypeEA
