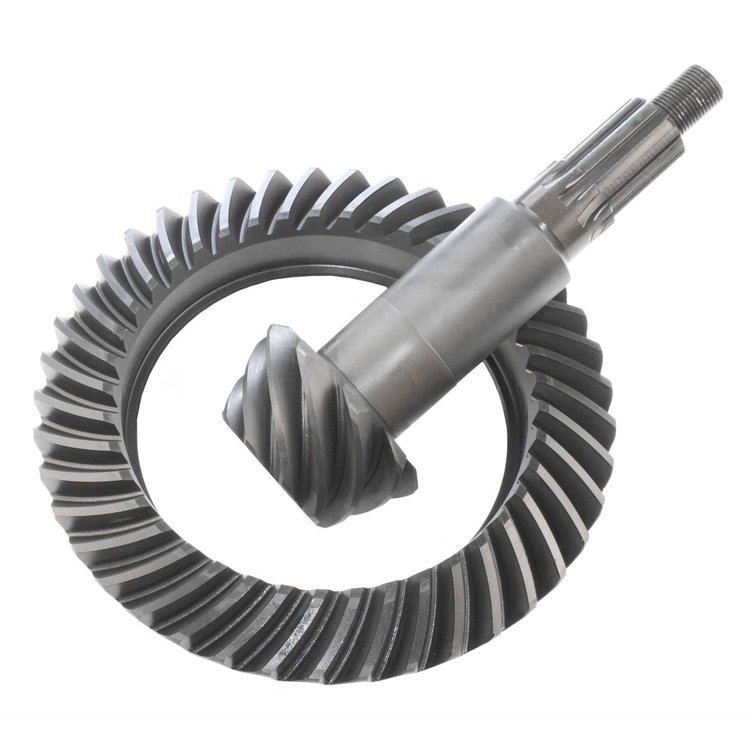

Chrysler Ring & Pinion Gear Set Ratio: 4.56
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-69-0047-1

Chrysler Ring & Pinion Gear Set Ratio: 4.56

$47899
1 left in stock
Lowest PriceLowest Price Guarantee

Chrysler 8.75" (742 Casting)
  • Pinion Diameter: 1.750"
  • 10 Spline
      • Chrysler Ring & Pinion Gear Set
    • Ratio: 4.56
    • Teeth: 41-9

      Use Installation Kit #836-83-1037-1
      Richmond Gear is the leading manufacturer of professional quality, high performance ring and pinion sets. The superior quality of these gear sets is the result of years of racing development, outstanding design, and state-of-the-art manufacturing methods. Chrysler Street Gears are designed to withstand the rigors of everyday driving, and a weekend at the track. Gears available for nearly all popular domestic applications.

      Choose The Gear Ratio That Is Best For Your Vehicle      .
    Part TypeRing and Pinion
    Product LineRichmond Gear Chrysler Ring & Pinion Sets
    BrandRICHMOND GEAR
    Package Height5.3
    Package Width11.2
    Package Length15.2
    Weight16.84 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth9
    Ring Gear Tooth Quantity41
    QuantitySold as a set
    Cover Bolt Quantity10
    Pinion Spline Count10
    Ring Gear Material8620 Steel
    Ring Gear Diameter8.75 in (222.3 mm)
    Ring And Pinion Ratio4.56:1
    Pinion Shaft Diameter1.75 in (44.5 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity9
    Axle TypeChrysler 8.75 in.
    Ring Gear Bolts12
    Cover Bolts10
    Ring Gear Teeth41
    Ring Gear Bolt Quantity12
    Part FitmentSemi Universal
    Vendor Part Number69-0047-1
    Package Qty1
    Package TypeEA
