Vehicle Info NeededRICHMOND GEARPART NUMBER: 836-69-0067-1

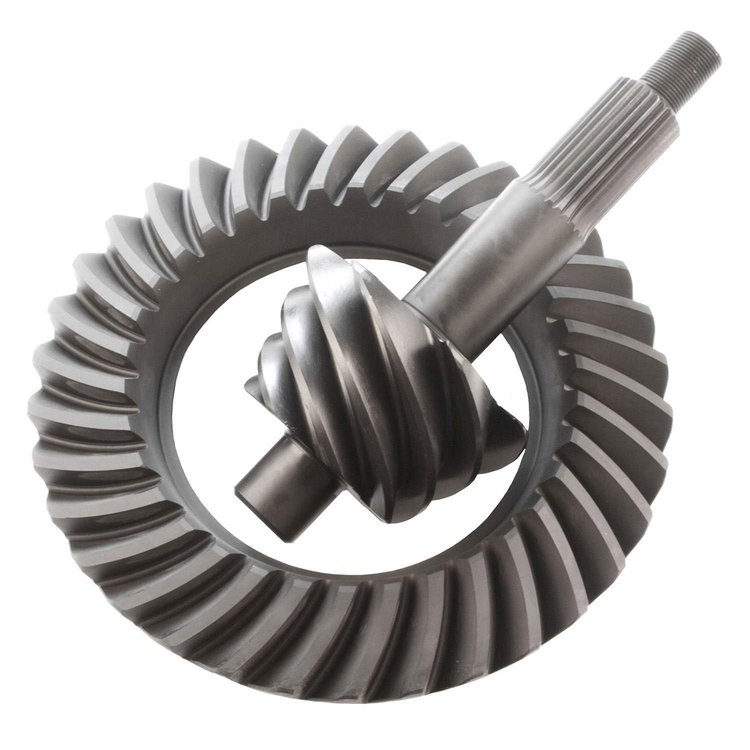

Ford Ring & Pinion Gear Set Ratio: 4.86
$37997
Ships Tomorrow
Lowest Price Guarantee
Ford 9"Pinion Diameter 1.313" 28 Spline
- Ford Ring & Pinion Gear Set
- Ratio: 4.86
- Teeth: 34-7
Use Installation Kit #836-83-1011-1 with 2.891" carrier bearing
Use Installation Kit #836-83-1009-1 with 2.891" carrier bearing & 28-spline Trac Loc
Use Installation Kit #836-83-1013-1 with 3.062" carrier bearing
Use Installation Kit #836-83-1007-1 with 3.062" carrier bearing & 31-spline Trac Loc
Use Installation Kit #836-83-1003-1 with 3.062" Daytona-style carrier bearing
Use Installation Kit #836-83-1005-1 with 3.250" Daytona-style carrier bearing
Performance Ring Gear Sets
Richmond Gear is the leading manufacturer of high-performance ring and pinion sets. The superior quality and durability are results from years of racing development, outstanding design, and state-of-the-art manufacturing methods. They are designed to withstand the rigors of everyday driving and a weekend at the track and are available for nearly all popular Ford differential applications.
Choose The Gear Ratio That Is Best For Your Vehicle.
Part TypeRing and Pinion
Product LineRichmond Gear Ford Ring & Pinion Sets
BrandRICHMOND GEAR
Package Height5.3
Package Width11.1
Package Length15.1
Weight19.43 PG
Part CategoryPerformance Parts
Ring Gear RotationStandard
Pinion Gear Teeth7
Ring Gear Tooth Quantity34
QuantitySold as a set
Cover Bolt QuantityDropout
Pinion Spline Count28
Ring Gear Material8620 Steel
Ring Gear Diameter9 in (228.6 mm)
Ring And Pinion Ratio4.86:1
Pinion Shaft Diameter1.313 in (33.4 mm)
Installation Kit IncludedNo
Pinion Gear Tooth Quantity7
Axle TypeFord 9 in. 28 Spline
Ring Gear Bolts10
Ring Gear Teeth34
Ring Gear Bolt Quantity10
Part FitmentSemi Universal
Vendor Part Number69-0067-1
Package Qty1
Package TypeEA
