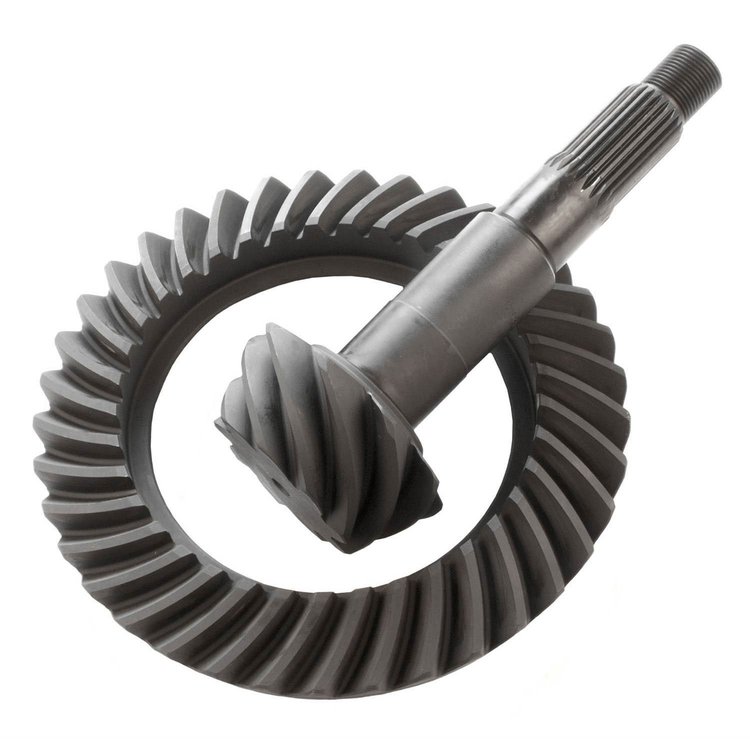

GM Ring & Pinion Gear Set Ratio: 4.11
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-69-0159-1

GM Ring & Pinion Gear Set Ratio: 4.11

$45293
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

GM 8.2"
  • Fits 3.08 and Higher Carrier
  • Pinion Diameter: 1.438"
  • 25 Spline
      • GM Ring & Pinion Gear Set
    • Ratio: 4.11
    • Teeth: 37-9

    • Fits 3.08+ carrier
    • Use Installation Kit #836-83-1022
    • Use crush sleeve from GM 7.5" 10-Bolt or Pontiac 8.2" 10-Bolt
    Part TypeRing and Pinion
    BrandRICHMOND GEAR
    Package Height5.2
    Package Width11.2
    Package Length15.0
    Weight13.4 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth9
    Ring Gear Tooth Quantity37
    QuantitySold as a set
    Differential Carrier Break3.08 and Higher
    Cover Bolt Quantity10
    Pinion Spline Count25
    Ring Gear Material8620 Steel
    Ring Gear Diameter8.2 in (208.3 mm)
    Ring And Pinion Ratio4.11:1
    Pinion Shaft Diameter1.438 in (36.5 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity9
    Axle TypeGM 8.2 in.
    Ring Gear Bolts10
    Cover Bolts10
    Ring Gear Teeth37
    Ring Gear Bolt Quantity10
    Part FitmentSemi Universal
    Vendor Part Number69-0159-1
    Package Qty1
    Package TypeEA
