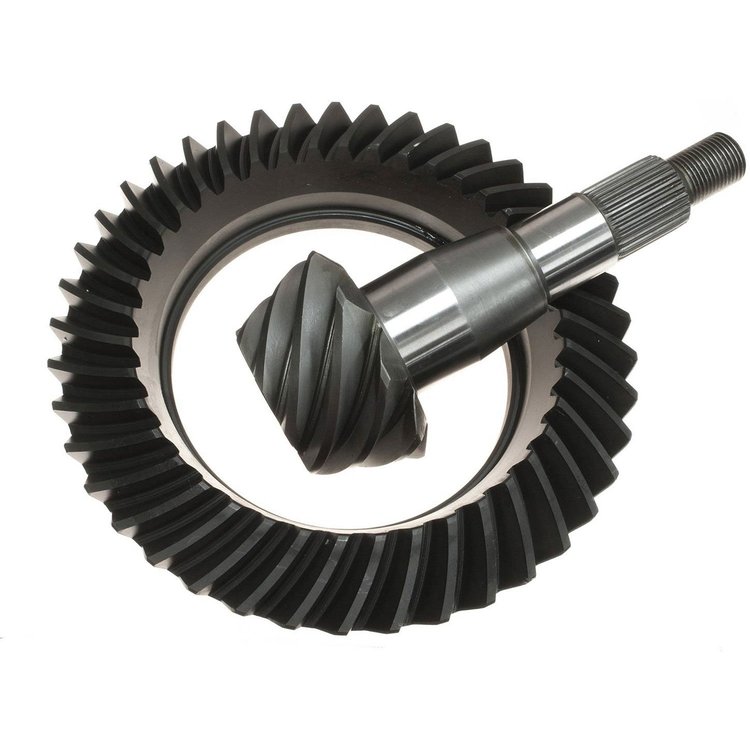

Chrysler Ring & Pinion Gear Set Ratio: 4.10
InfoVehicle Info Needed
RICHMOND GEARPART NUMBER: 836-69-0220-1

Chrysler Ring & Pinion Gear Set Ratio: 4.10

$35938
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Chrysler 9.25"
  • Pinion Diameter: 1.877" (Tapered)
  • 29 Spline
      • Chrysler Ring & Pinion Gear Set
    • Ratio: 4.10
    • Teeth: 41-10

      Use Installation Kit #836-83-1041-1
    Part TypeRing and Pinion
    BrandRICHMOND GEAR
    Package Height5.5
    Package Width11.2
    Package Length15.0
    Weight20.11 PG
    Part CategoryPerformance Parts
    Ring Gear RotationStandard
    Pinion Gear Teeth10
    Ring Gear Tooth Quantity41
    QuantitySold as a set
    Cover Bolt Quantity12
    Pinion Spline Count29
    Ring Gear Material8620 Steel
    Ring Gear Diameter9.25 in (235 mm)
    Ring And Pinion Ratio4.10:1
    Pinion Shaft Diameter1.876 in (47.7 mm)
    Installation Kit IncludedNo
    Pinion Gear Tooth Quantity10
    Axle TypeChrysler 9.25 in.
    Ring Gear Bolts12
    Cover Bolts12
    Ring Gear Teeth41
    Ring Gear Bolt Quantity12
    Part FitmentSemi Universal
    Vendor Part Number69-0220-1
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
    Please click here to download the instructions PDF file
