RICHMOND GEARPART NUMBER: 836-69-0376-1

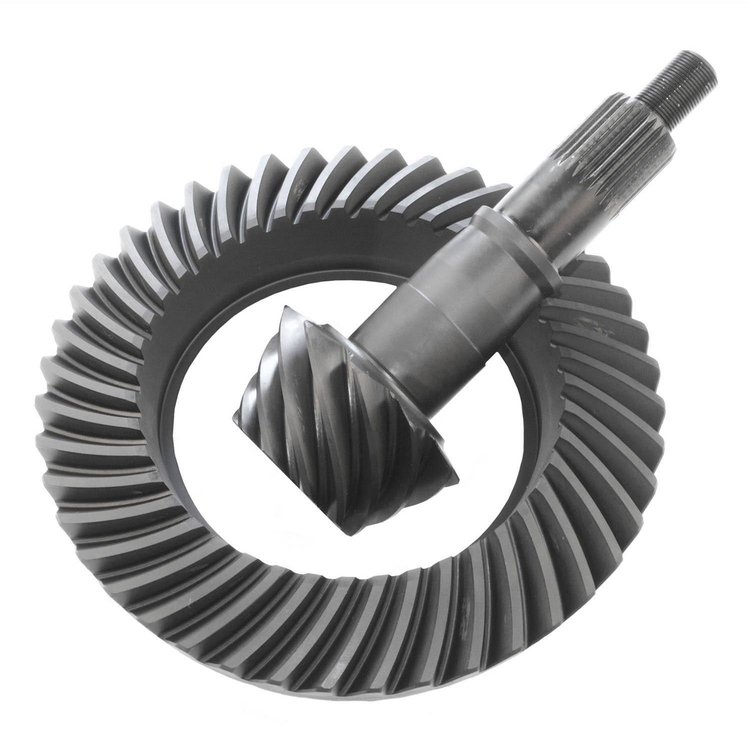

Ford Ring & Pinion Gear Set Ratio: 4.33

Name: Ford Ring & Pinion Gear Set Ratio: 4.33
Brand: RICHMOND GEAR
SKU: 836-69-0376-1
Price: 383.75 USD
Availability: InStock

^$383⁷⁵

Ships on 09/15/2026

Lowest Price Guarantee

Ford 8.8"

Pinion Diameter: 1.626"

30 Spline

Ratio: 4.33
Teeth: 39-9

Use Installation Kit #836-83-1043-1
1981-94 Bronco, 1981-2002 F-100/F-150 except 5.4L, 1983-84 F-250, 1985-2002 Mustang, 1990-98 Ranger 4.0L, 1990-2002 Explorer, 1997-2002 Expedition except 5.4L

Part TypeRing and Pinion

BrandRICHMOND GEAR

Package Height5.2

Package Width11.1

Package Length14.9

Weight18.33 PG

Part CategoryPerformance Parts

Ring Gear RotationStandard

Pinion Gear Teeth9

Ring Gear Tooth Quantity39

QuantitySold as a set

Cover Bolt Quantity10

Pinion Spline Count30

Ring Gear Material8620 Steel

Ring Gear Diameter8.8 in (223.5 mm)

Ring And Pinion Ratio4.33:1

Pinion Shaft Diameter1.626 in (41.3 mm)

Installation Kit IncludedNo

Pinion Gear Tooth Quantity9

Axle TypeFord 8.8 in.

Ring Gear Bolts10

Cover Bolts10

Ring Gear Teeth39

Ring Gear Bolt Quantity10

Part FitmentSemi Universal

Vendor Part Number69-0376-1

Package Qty1

Package TypeEA
