![Complete Front and Rear Differential Ring & Pinion Kit 2007-2018 Jeep Wrangler JK Rubicon [Dana 44 JK, 5.38 Ratio]](https://www.jegs.com/images/mini_750/800/836/836-xlk-5008.jpg)
Product Discontinued
RICHMOND GEARPART NUMBER: 836-XLK-5008

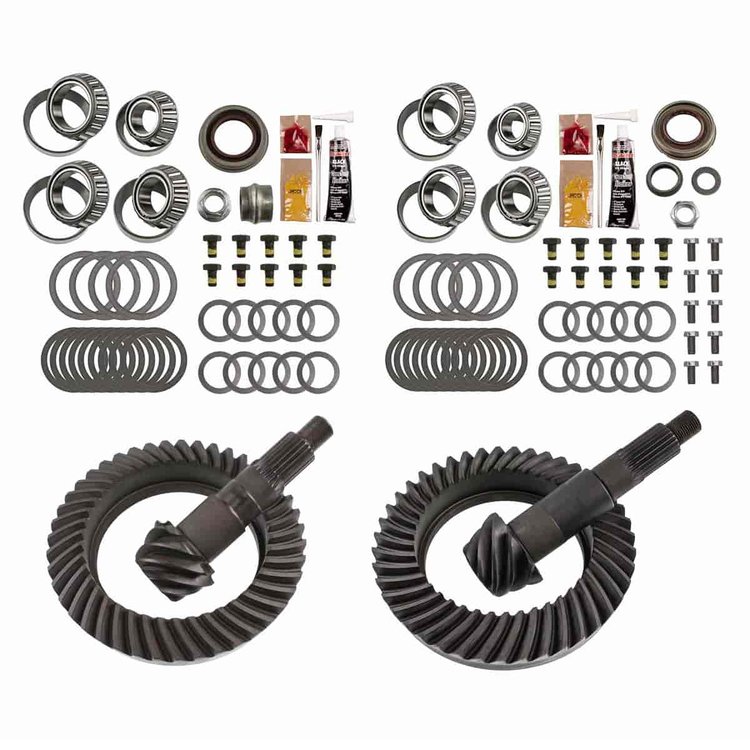

Complete Front and Rear Differential Ring & Pinion Kit 2007-2018 Jeep Wrangler JK Rubicon [Dana 44 JK, 5.38 Ratio]
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Jeep Wrangler JK
Complete Front and Rear Differential Ring & Pinion Kit2007-2018 Jeep Wrangler JK Rubicon Dana 44 JK Front & Rear Ratio: 5.38 Teeth: 43-8
The XLK-5008 front and rear ring and pinion kits by Richmond Gear are designed specifically for the Dana 44 JK axles and include premium Timken bearings.
Features:
- Cover: 10-Bolt
- Differential Case: Dana 44
- Pinion Shaft Diameter: 1.376 in.
- Pinion Spline Count: 24-Spline
- Ring Gear: 10-Bolt
- Ring Gear Material: 8620 Steel
Note:
- Not compatible with other Dana 44 axles
Time to Re-Gear Your 4x4
Richmond Gear now offers complete ring and pinion kits for 4x4 vehicles that include everything for both axles. High-quality Timken bearings and signature EXCel ring and pinion gears will have your axles operating at their full potential. Kits are available in several gear ratios to meet your exact requirements.
Choose The Gear Ratio That Is Best For Your Vehicle.
Part TypeRing and Pinion Installation Kit
Product LineRichmond Gear Jeep Complete Front and Rear Differential Ring & Pinion Kits
BrandRICHMOND GEAR
Package Height12.5
Package Width16.0
Package Length16.0
Weight39.35 PG
Part CategoryPerformance Parts
Ring Gear Tooth Quantity43
Carrier Bearings IncludedYes
Axle Seals IncludedNo
Carrier Shims IncludedYes
PositionFront and Rear
Cover Gasket IncludedYes
Ring Gear Bolts IncludedYes
Crush Sleeve IncludedYes
QuantitySold as a kit
Pinion Spline Count24
Pinion Shims IncludedYes
Ring Gear Material8620 Steel
Pinion Nut IncludedYes
Pinion Shaft Diameter1.376 in (35 mm)
Installation Kit IncludedYes
Pinion Gear Tooth Quantity8
Axle Bearings IncludedNo
Ring Gear Bolts10
Gear Ratio5.38
Cover Bolts10
Part FitmentSemi Universal
Pinion Seal IncludedYes
Vendor Part NumberXLK-5008
Package Qty1
Package TypeEA
