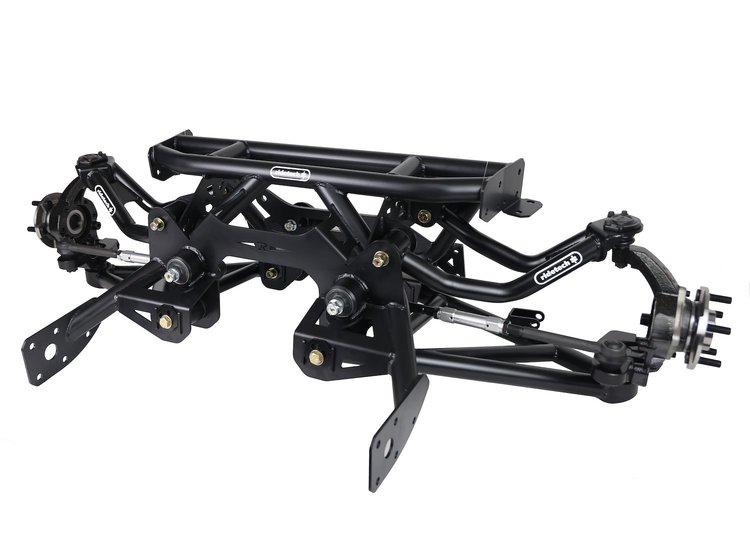

Independent rear suspensions (IRS) are superior in almost every way over a straight rear axle. This bolt-on Ridetech 12127099 IRS Conversion is an easy bolt-on system for the 1979-1993 Fox Body Mustang. It provides maximum performance, high strength, and OEM reliability utilizing SN95/S550 Mustang driveline & brake components for an unstoppable combination.

Ridetech 12127099 Independent Rear Suspension Features:

• 100% Bolt-in design requires minimal modifications
• Lowered stance of approximately 2 in. reduces the center of gravity without adversely affecting suspension geometry
• Reduced unsprung weight improves ride quality
• Low 5 in. roll center and 1 degree of camber gain with zero bump steer provide improved cornering and suspension geometry over the original suspension design
• 50% anti-squat provides excellent traction
• Delrin control arm bushings eliminate wheel hop with no noise and no bushing lube required unlike urethane
• Retains factory track width
• Compatible with mini-tubs (cradle attaches to the inside of the frame rails)
• Modular design
• Spindles include Moog S550 Mustang rear hubs for maximum strength, consistent braking & reduced maintenance
• Durable powder coat finish corrosion resistance

Ridetech 12127099 Independent Rear Suspension Notes:

• Uses S550 Mustang differential such as M-400188355B or equivalent (sold separately), used takeout units are also available
• Requires Ridetech 4 in. shorter than stock axles 12129599 (sold separately) withstanding up to 500 flywheel horsepower
• Ridetech 12129510 Caliper Brackets (sold separately) allows direct bolt-on of both stock or aftermarket brakes from a 1999-2004 SN95 Mustang Cobra
• Ridetech 12129511 Caliper Brackets (sold separately) allows direct bolt-on of both stock or aftermarket brakes from an S550 Mustang
• Compatible with 1999-2004 Mustang Cobra cat-back exhaust systems
• Requires driveshaft to be shortened
• Requires pinion flange to U-joint adapter such as Sonnax T35-ALFY-09 or equivalent (sold separately)
• Works with Ridetech 12126410 or 12126411 Coilovers or 21130101 Shockwaves (each sold separately)
• Optional Ridetech 12129102 adjustable rate rear sway bar is available for additional fine-tuning (sold separately)
