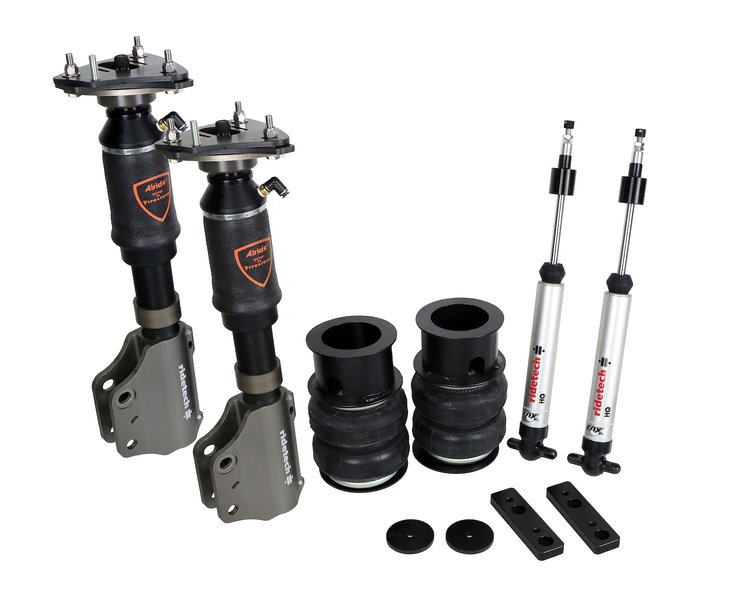

12270297 HQ Series Air Suspension System for S550, S650 Ford Mustangs

Name: 12270297 HQ Series Air Suspension System for S550, S650 Ford Mustangs
Brand: RIDETECH
SKU: 029-12270297
Price: 3020.00 USD
Availability: InStock

^$3,020⁰⁰

Ships on 09/22/2026

Lowest Price Guarantee

Complete Kits

HQ Series Air Suspension

S550, S650 Ford Mustangs

ShockWave Fronts w/CoolRide Rears

1 1/2- 2 1/2 in. Ride Height Drop

Additional 2-3 in. Drop Deflated

24-Position Rebound Adjustable

Improved Alignment Angle Range

Bolt-On

Breakdown of Included Items

Ridetech 12270297 HQ Series Air Suspension System Includes:

HQ Series Front ShockWaves 12272501:
- Fox Factory shock internals and valving improve handling but retain factory ride
- Lightweight forged-aluminum monotube shock bodies provide excellent strength
- 24-position rebound adjustable
- Increased caster/camber adjustment and range
  - Caster Range: + 7.5 to + 8.5 degrees
  - Camber Range: - 2.5 to + .25 degrees
  - Camber Range Extreme w/slug flipped: - 1.0 to - 4.25 degrees
- Capable of 1.5-2.5 in. of drop from OEM for improved center of gravity
- Fully deflated will net an additional 2-3 in. of drop

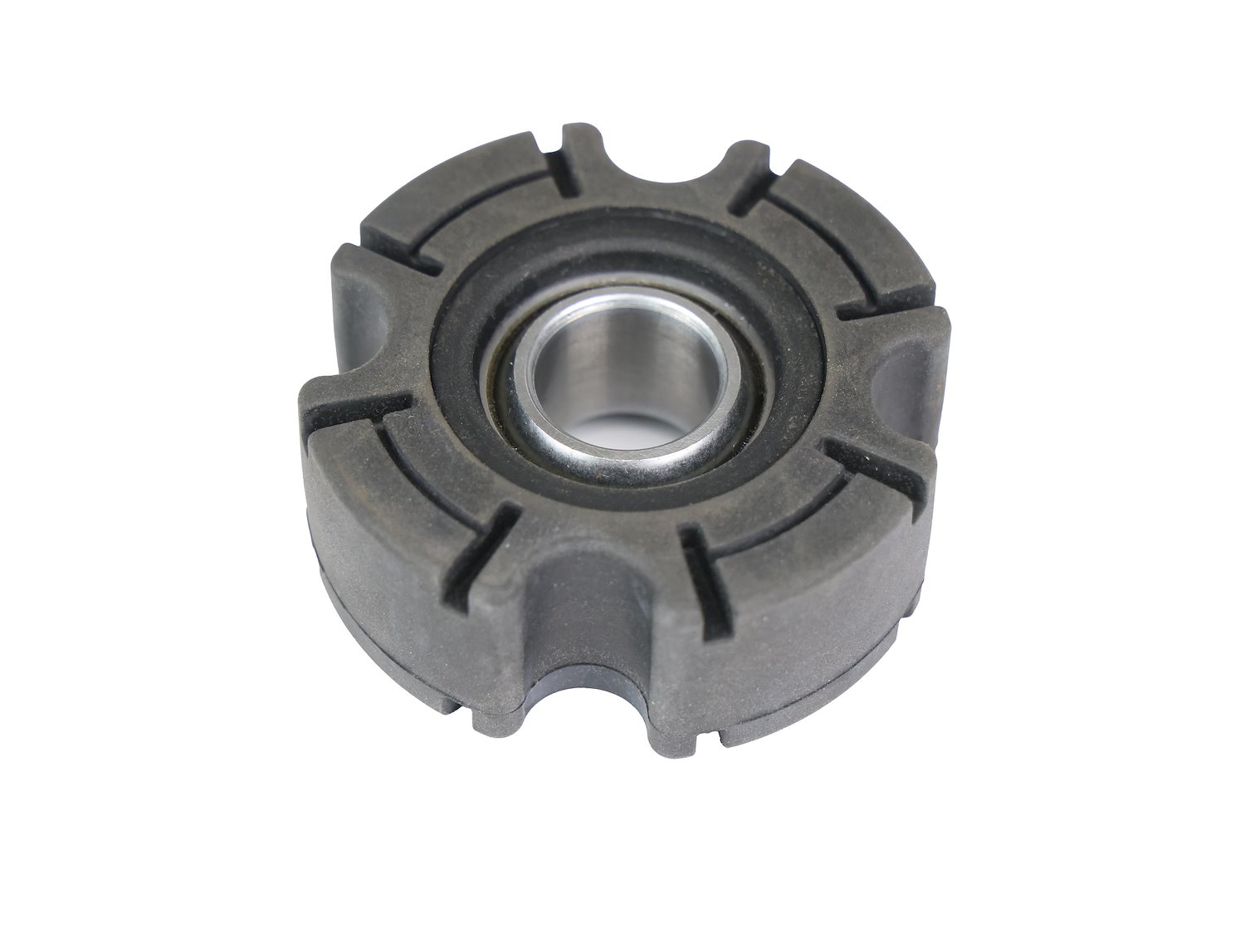

- Rubber isolated spherical bearings to minimize road noise
- Anodized gunmetal black and gray finish
HQ Series Rear CoolRide Air Spring and Shock Kit 12274010:
- Fox Factory shock internals and valving improve handling but retain factory ride
- Lightweight forged-aluminum monotube shock bodies provide excellent strength
- 24-position rebound adjustable
- Hyperco coil springs provide consistent spring rates
- Capable of 1.5-2.5 in. of drop from OEM for improved center of gravity
- Fully deflated will net an additional 2-3 in. of drop
- Rubber isolated spherical bearings to minimize road noise
- Anodized gunmetal black and gray finish

Ridetech 12270297 HQ Series Air Suspension System Notes:

Cars equipped with factory electronic shock systems require an ‘Electronic Shock Simulator’ kit
Does not fit 2024-up cars with electronic shocks
Negative camber settings of more than -1 degree will require a Ridetech front sway bar

Extended Mustang Performance

Ridetech HQ Series Air Suspension for S550 and S650 Ford Mustangs is fully adjustable and allows for an aggressive, functional stance with improved handling performance. It does not sacrifice ride quality or comfort.

Part TypeAir Suspension Helper Spring Kit

Product LineRidetech HQ Series Air Suspension for S550, S650 Ford Mustangs

BrandRIDETECH

Package Width61.0

Weight61.0 PG

Part CategoryPerformance Parts

Air Spring Suspension Kit TypeShockWave/CoolRide

Front Sway Bar IncludedNo

PositionFront and Rear

Rear Sway Bar IncludedNo

QuantitySold as a Kit

Air Springs IncludedYes
