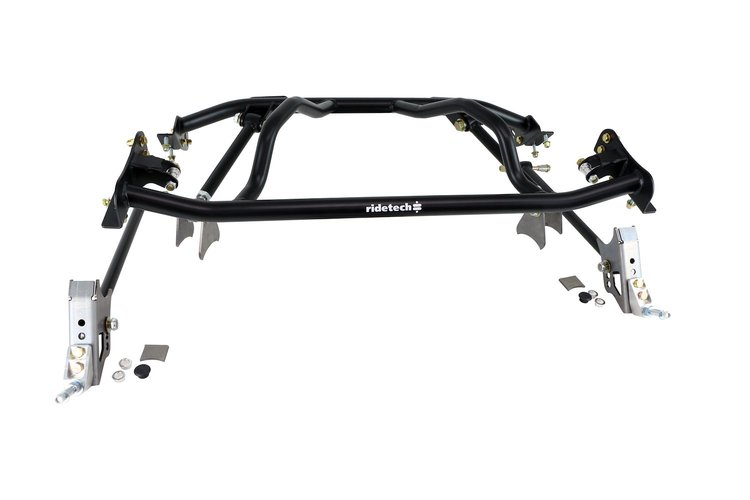

RideTech 12287199

Breakdown of Included Items

Features:

• The triangulated 4-link eliminates the need for a pan hard bar and keeps the rear end movement vertical
• Shock spacers fit multiple factory leaf spring mounts (2 in. and 2.500 in.)
• Accepts Ridetech coil-overs or Ridetech Shockwave air suspension systems
• (3) Lower control arm at axle mounting holes:
  • 1 - Top Hole: Anti-Squat 74.4% - Instant Center 72.800 in., Roll Center 12.950 in.
  • 2 - Middle Hole: Anti-Squat 108.1% - Instant Center 58.350 in., Roll Center 11.670 in.
  • 3 - Bottom Hole: Anti-Squat 135.5% - Instant Center 50.250 in., Roll Center 10.350 in.

Notes:

• Welding required for upper control arm axle mounts
• The rear will accept up to a 225/40-R18 tire with a recommended backspace of 5.500-6 in. - provides a ride height of 18.750 in. ground to the fender lip
