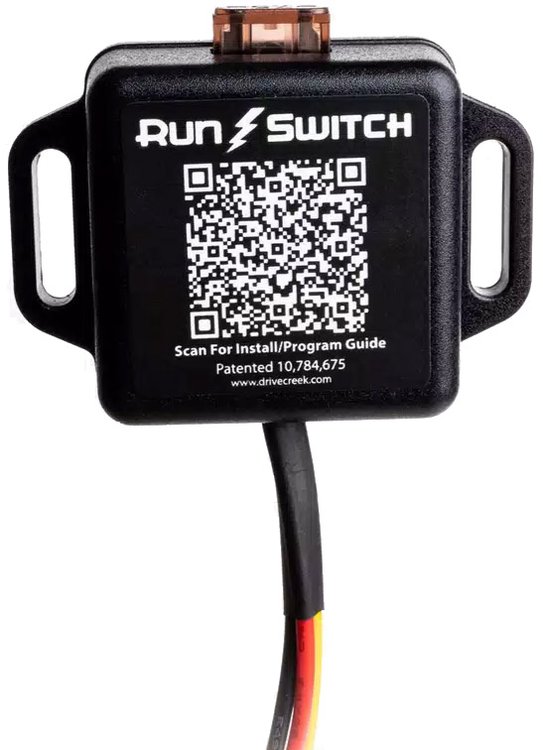

RUNSWITCH Features:

• Provides a switched 12 V output for running vehicle accessories
• Eliminates splicing into OEM wiring
• Engine on/off auto-detect
• Internal fuse LED's illuminate for quick and easy setup, functional circuit confirmation, and diagnostics
• Compact sizing allows for various mounting options
• Reverse bias protection - fuse will open if Vin and GND are reversed

Technical Specifications:

• Engine Running Detection: Battery voltage increases/alternator charging
• Engine Off Detection: Battery voltage decreases/alternator not charging
• Sleep Detection: Engine off/Module off, no power output
• Wire Size: 20 AWG Stranded 105C
• Input Voltage: 12-16 V DC (Standard Automotive Battery)
• Input Current Fuse: 7.5 Max Amperage
• Output Voltage: 3.6 V typical (standard automotive battery power with the engine running)
• Output Current: 100 W / 7.5 Amp max current with engine running (fuse-protected)
• Sleep Current: 0 V output, 180 uA quiescent current (Vin < 12.8 V / Key = Off, Engine Off)
• IP54 Rated
• Operating Temperature: -40-degree F to 185-degree F (-40 C to +85 C, USCAR Interior / Below IP)
• Storage: -40-degree F to 257-degree F (-40 C to +125 C)

Note:

• When more than 7.5 amps are needed, the Run Switch can trigger multiple relays
