SCHUMACHER CHARGERSPART NUMBER: 758-DSR124

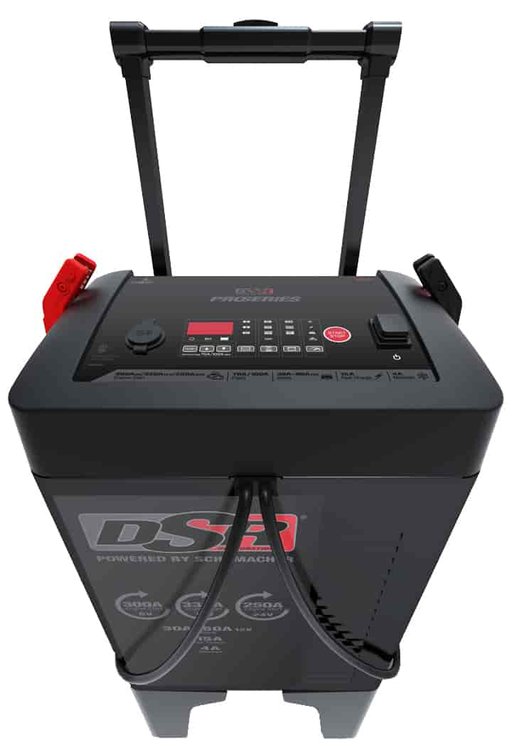

330 Amp Pro-Series Battery Charger with Engine Start
$67999
330 Amp Chargers
330 Amp Pro-Series Battery Charger with Engine Start6 V/12 V/24 V Output Voltage 120 V AC Input Voltage 70 Amp Flash Reprogram Mode Digital Display with LED Indicators Push-Button Start/Stop Interface Sold Individually
Features:
- Includes (1) memory saver cable, (4) cable clamp cleats with (4) mounting screws
- For use with standard, AGM (absorbed glass mat), Gel, and deep-cycle batteries
- Powerful starting for SUVs, trucks, and large engines
- 30-80 amps Boost Mode brings extremely discharged batteries back to life
- Memory Saver Mode prevents the vehicle settings lose while changing the battery
- Multi-stage charging levels
- Optimum battery charge is automatically maintained through float-mode monitoring
- Reverse hook-up protection
- 17 ft. output cables with color-coded attachment clamps
- Retractable handle for convenient maneuverability
- Meets the highest industry standards for energy efficiency
- Department of Energy (DOE) compliant
- Input Current: 14.6 amps continuous; 66.5 amps intermittent
- Output Current: 6 V/12 V - 4/15 amps continuous, 80/300 amps intermittent; 24 V - 30 amp continuous, 250 amp intermittent
- Dimensions: 16.250 in. W x 20.500 in. L x 33.630 in. H
- Weight: 70 lbs.
Part TypeBattery Charger
BrandSCHUMACHER CHARGERS
Package Height14.51
Package Width17.51
Package Length31.27
Weight70.0 PG
Part CategoryAccessories
Charge Status IndicatorYes
Number Of Batteries Simultaneously Charged1
QuantitySold individually
Part FitmentUniversal
Vendor Part NumberDSR124
Package Qty1
Package TypeEA
