Made in USA
Connecting Rod Bearing Chevy GM Small Journal -.030
InfoVehicle Info Needed
SEALED POWERPART NUMBER: 844-2020CP30

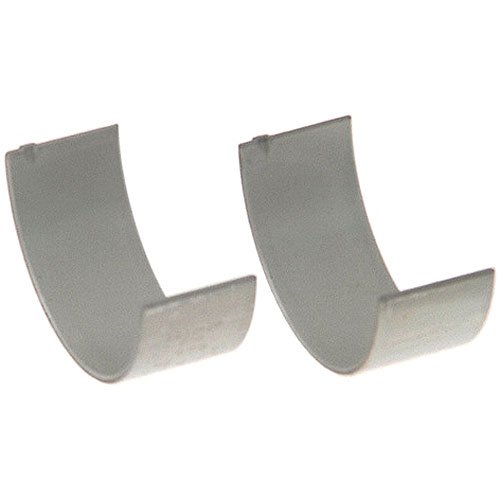

Connecting Rod Bearing Chevy GM Small Journal -.030

$1178
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Small Block Chevy
    Connecting Rod Bearing
  • Chevy/GM 122-140-153 L4
    194-230-250 L6
    265-283-327 V8
  • 2.000" Crankshaft "Small" Journal Applications
  • -.030" Journal Size
  • Individual, 1/pkg.

    This package contains two bearing halves to service one connecting rod.

    Features:
  • Steel Backed Overplated Bronze Alloy
  • Popular for Fatigue Resistance & Strength
  • Provides Conformability Required for Older Applications
  • Offers Less Resistance to Wear & Corrosion Than other Materials
  • Utilizes ISO & QS Certified Manufacturing

    Standard Size Specs:
  • Housing Bore: 2.1252" (max); 2.1247" (min)
  • Oil Clearance: 0.0032" (max); 0.0005" (min)
  • Overall Length: 0.8420" (max)
  • Standard Shaft: 2.0000" (max); 1.9990" (min)
  • Wall Thickness: 0.0621" (max)

    High-Strength Replacement Bearings

    Sealed Power A-Series engine bearings have a small percentage of silicon mixed in with the aluminum and tin that make up the bearing-surface alloy. The silicon resists wear while polishing the journals of a crank surface during operation. A bored Micro-groove design helps to minimize debris embedding, which can score the crank's surface.

Part TypeConnecting Rod Bearing
Product LineSealed Power Engine Bearings
BrandSEALED POWER
Package Height1.1
Package Width2.4
Package Length3.2
Weight0.1 PG
Part CategoryReplacement Parts
Vendor Part Number2020CP30
Package Qty1
Package TypeEA
