Connecting Rod Bearing Chevy GM Large Journal -.002

Name: Connecting Rod Bearing Chevy GM Large Journal -.002
Brand: SEALED POWER
SKU: 844-2555CP2
Price: 4.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy

Chevy/GM 292 L6
294-302-305-307-325-327-350-364-376-400 V8
4.8L-5.3L-6.0L-6.2L LS
2.100" Crankshaft "Large" Journal Applications
-.002" Journal Size
Individual, 1/pkg.

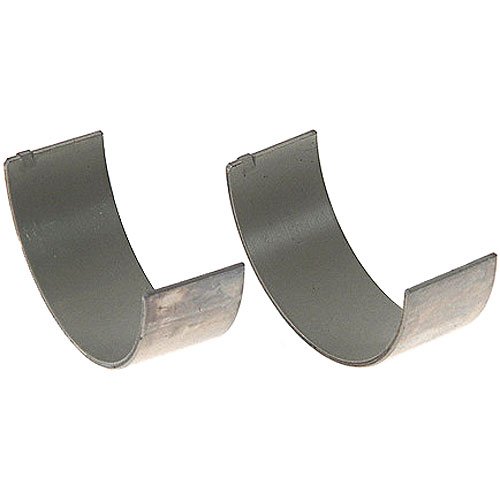

This package contains two bearing halves to service one connecting rod.
Features:
Steel Backed Overplated Bronze Alloy
Popular for Fatigue Resistance & Strength
Provides Conformability Required for Older Applications
Offers Less Resistance to Wear & Corrosion Than other Materials
Utilizes ISO & QS Certified Manufacturing

Standard Size Specs:
Housing Bore: 2.2252" (max); 2.2247" (min)
Oil Clearance: 0.0028" (max); 0.0005" (min)
Overall Length: 0.8420" (max)
Standard Shaft: 2.1000" (max); 2.0990" (min)
Wall Thickness: 0.0622" (max)

High-Strength Replacement Bearings

Sealed Power A-Series engine bearings have a small percentage of silicon mixed in with the aluminum and tin that make up the bearing-surface alloy. The silicon resists wear while polishing the journals of a crank surface during operation. A bored Micro-groove design helps to minimize debris embedding, which can score the crank's surface.

Part TypeConnecting Rod Bearing

Product LineSealed Power Engine Bearings

BrandSEALED POWER

Package Width0.11

Weight0.11 PG

Part CategoryReplacement Parts

Package Qty1

Package TypeEA
