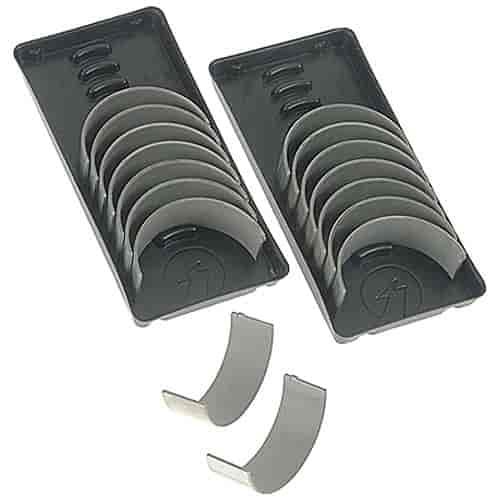

Connecting Rod Bearings Chevy GM Small Journal -.030

Name: Connecting Rod Bearings Chevy GM Small Journal -.030
Brand: SEALED POWER
SKU: 844-8-2020CP-30
Price: 35.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Small Block Chevy

Chevy/GM 122-140-153 L4
194-230-250 L6
265-283-327 V8
2.000" Crankshaft "Small" Journal Applications
-.030" Journal Size
8-Cylinder Full Set, 8/pkg.

This package contains twelve bearing halves to service six connecting rods.
Features:
Steel Backed Overplated Bronze Alloy
Popular for Fatigue Resistance & Strength
Provides Conformability Required for Older Applications
Offers Less Resistance to Wear & Corrosion Than other Materials
Utilizes ISO & QS Certified Manufacturing

Standard Size Specs:
Housing Bore: 2.1252" (max); 2.1247" (min)
Oil Clearance: 0.0032" (max); 0.0005" (min)
Overall Length: 0.8420" (max)
Standard Shaft: 2.0000" (max); 1.9990" (min)
Wall Thickness: 0.0621" (max)

High-Strength Replacement Bearings

Sealed Power A-Series engine bearings have a small percentage of silicon mixed in with the aluminum and tin that make up the bearing-surface alloy. The silicon resists wear while polishing the journals of a crank surface during operation. A bored Micro-groove design helps to minimize debris embedding, which can score the crank's surface.

Part TypeConnecting Rod Bearing Set

Product LineSealed Power Engine Bearings

BrandSEALED POWER

Package Height2.8

Package Width3.3

Package Length6.1

Weight1.05 PG

Part CategoryReplacement Parts

Vendor Part Number8-2020CP 30

Package Qty1

Package TypeEA
