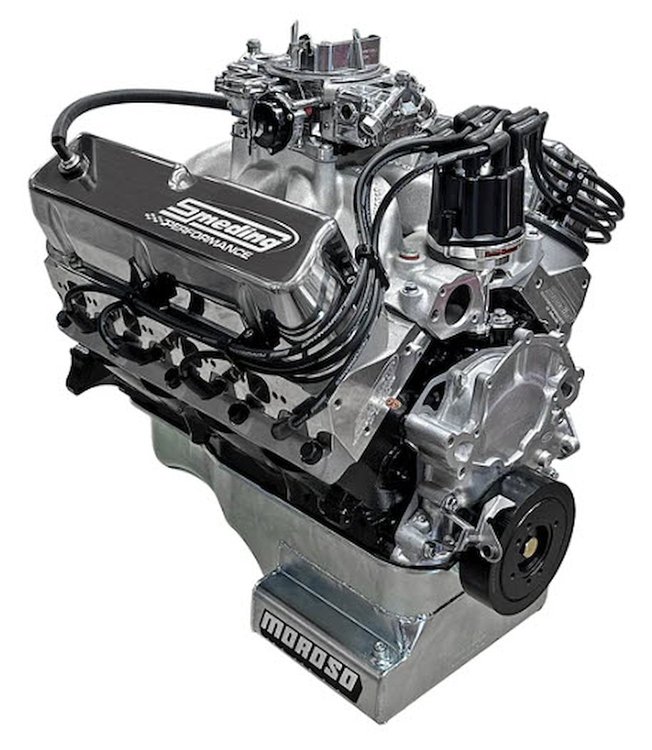

Smeding Performance SBF427COB770SC Small Block Ford 427 ci. Cobra 580 HP Carbureted Crate Engine Specs:

• Engine Block: 9.5 in. Deck Height, 4.125 in. Bore, 4 Bolt Billet Steel Mains with ARP Fasteners
• Crankshaft: 4340 Forged Steel, 4.000 in. Stroke, Internally Balanced - 0oz
• Connecting Rods: 4340 Forged Steel H-Beam, Floating Wrist Pins, 12pt 7/16 in. SP8740 Fasteners
• Pistons: 2618 Forged Aluminum, Coated Skirts, 27.5cc Dish
• Piston Rings: Stainless Top, Napier 2nd, Low Tension Oil - 1.2, 1.2, 3.0mm
• Camshaft: Hydraulic Roller, 238/248 Duration at .050 in., .544 in./.573 in. Lift, 110 LSA
• Lifters: Hydraulic Roller, Link-Bar Design
• Timing Set: Double Roller Timing Set
• Timing Cover: Cast Aluminum Timing Cover
• Oil Pump: Melling M83 Standard Volume Oil Pump
• Oil Pan: Moroso Black 7qt Steel Oil Pan
• Harmonic Balancer: Harmonic Balancer
• Cylinder Heads: CNC Ported 205cc, 2.08 in./1.60 in. Valves, Hyd Roller Dual Valve Springs & Ti Retainers
• Pushrods: 7.800 in. Length, 5/16 in. Diameter
• Rocker Arms: 1.6 Ratio, Aluminum Body, Full Roller
• Rocker Arm Studs: 7/16 in. Rocker Arm Studs
• Guide Plates: Hardened Guide Plates
• Intake Manifold: Edelbrock Victor Jr Single Plane Intake Manifold
• Valve Covers: Polished Cast Aluminum Valve Covers
• Carburetor: Holley Brawler 770cfm, Electric Choke
• Distributor: Pertronix Electronic Small Cap Distributor
• Spark Plug Wires: 8mm High Energy Spark Plug Wires with Looms
• Bearings: King Tri-Metal
• Cam Bearings: Dura-Bond - Installed
• Freeze Plugs: Brass - Installed
• Oil Plugs: Installed
• Dowel Pins: Installed

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
