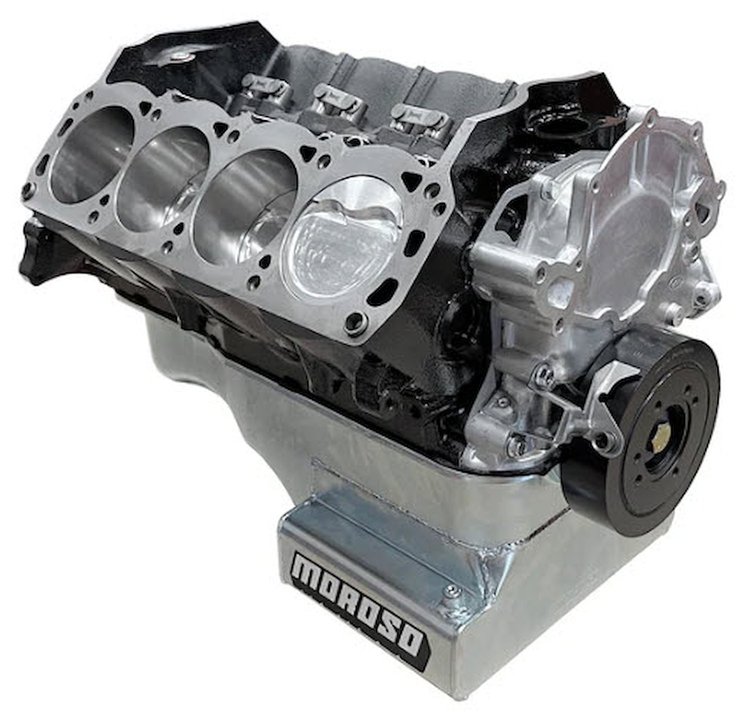

SBF427SBSUB Small Block Ford 427 ci. Short Block w/560 HP Cobra Roller Cam [Sealed Up]
InfoVehicle Info Needed
SMEDING PERFORMANCEPART NUMBER: 039-427SBSUB

SBF427SBSUB Small Block Ford 427 ci. Short Block w/560 HP Cobra Roller Cam [Sealed Up]

$7,25000
Truck Freight
ShippingShips on 04/01/2027
Lowest PriceLowest Price Guarantee

Items You Need

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

JEGS

1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]

Part Number : 555-81044K
$23698
Performance Serpentine Drive Kit Ford 289-302 with Power Steering

MARCH PERFORMANCE

Performance Serpentine Drive Kit Ford 289-302 with Power Steering

Part Number : 655-30130
$58500
Air Cleaner with Logo 14 in. x 3 in. [Chrome-Plated]

JEGS

Air Cleaner with Logo 14 in. x 3 in. [Chrome-Plated]

Part Number : 555-50022
$5299$58.99
You Save$6.00
Premium High-Flow Aluminum Water Pump for 1970-1978 Small Block Ford 302 [Natural]

JEGS

Premium High-Flow Aluminum Water Pump for 1970-1978 Small Block Ford 302 [Natural]

Part Number : 555-51041
$12099$126.99
You Save$6.00

Short Blocks
Small Block Ford 427 ci. Short Block
  • Block: 4-Bolt Main w/4.125 in. Bore
  • Crankshaft: 4340 Forged Steel 4 in. Stroke
  • Connecting Rods: 4340 Forged Steel H-Beam
  • Pistons: Forged Aluminum
  • Rings: Stainless
  • Camshaft: Hydraulic Roller

    Smeding Performance SBF427SBSUB Small Block Ford 427 ci. Short Block Specs:

    • Engine Block: 9.5 in. Deck Height, 4.125 in. Bore, 4 Bolt Billet Steel Mains with ARP Fasteners
    • Crankshaft: 4340 Forged Steel, 4.000 in. Stroke, Internally Balanced - 0oz
    • Connecting Rods: 4340 Forged Steel H-Beam, Floating Wrist Pins, 12pt 7/16 in. SP8740 Fasteners
    • Pistons: 2618 Forged Aluminum, Coated Skirts, 27.5cc Dish
    • Piston Rings: Stainless Top, Napier 2nd, Low Tension Oil - 1.2, 1.2, 3.0mm
    • Camshaft: Hydraulic Roller, 238/248 Duration at .050 in., .544 in./.573 in. Lift, 110 LSA
    • Lifters: Hydraulic Roller, Link-Bar Design
    • Timing Set: Double Roller Timing Set
    • Timing Cover: Cast Aluminum Timing Cover
    • Oil Pump: Melling M83 Standard Volume Oil Pump
    • Oil Pan: Moroso Black 7qt Steel Oil Pan
    • Harmonic Balancer: Harmonic Balancer
    • Bearings: King Tri-Metal
    • Cam Bearings: Dura-Bond - Installed
    • Freeze Plugs: Brass - Installed
    • Oil Plugs: Installed
    • Dowel Pins: Installed

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    • Big Cubic Inches in a Lightweight Package

      Smeding Performance Small Block Ford 427 ci. Crate Engines provide the same 427 cubic inches in a lightweight, smaller package than the original big blocks.

    Part TypeEngine Short Block
    Product LineSmeding Performance Small Block Ford 427 ci. Crate Engines
    BrandSMEDING PERFORMANCE
    Package Height25.4
    Package Width27.0
    Package Length31.7
    Weight175.0 PG
    Part CategoryPerformance Parts
    Engine TypeHigh-Performance Crate Engine
    Engine Block MaterialCast Iron
    Engine Assembly StyleShort Block
    Part FitmentSemi Universal
    Engine Displacement427 ci.
    Engine Make/SizeFord Small Block
    Camshaft StyleHydraulic Roller
    Vendor Part NumberSBF427SB238248SUB
    Package Qty1
    Package TypeEA
