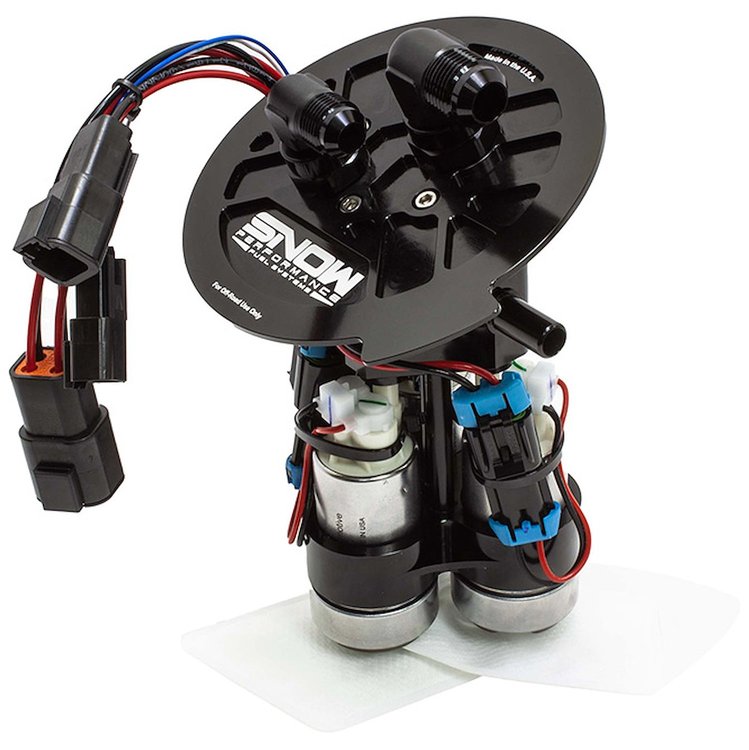

The Snow Performance SNF-52601R Billet Triple Pump Race Fuel Hat is a direct OEM fuel hat replacement for 2011-2025 Ford Mustang GT models, engineered to support 1600+ rear-wheel horsepower on E85 and 2100+ on gasoline using three 470 LPH TI Automotive (Walbro) fuel pumps. The CNC-machined 6061 billet aluminum body features Viton chemical-resistant O-rings for a guaranteed leak-free fit, a female 10AN ORB feed port, and an 8AN ORB return port. This fuel hat replaces the factory fuel hat and bucket entirely while retaining the OE fuel level sending unit, EVAP system, filler neck, and saddle-style fuel transfer pump functionality where equipped. Designed for return-style fuel systems only — not compatible with returnless applications. Compatible with 100% gasoline, E85, and all gasoline/ethanol blends; not compatible with methanol.

Snow Performance SNF-52601R Billet Triple Pump Race Fuel Hat Features:

• Fits 2011-2025 Ford Mustang GT; Return-Style Fuel Systems Only; Not Compatible with Returnless Applications
• Supports 1600+ RWHP on E85 and 2100+ RWHP on Gasoline; Compatible with E10, E85, E98, and 100% Gasoline or Ethanol; Not Compatible with Methanol
• Includes Three 470 LPH TI Automotive (Walbro) Fuel Pumps; CNC-Machined Bodies with Viton Chemical-Resistant O-Rings for Leak-Free Fit
• Female 10AN ORB Feed Port; 8AN ORB Return Port; Retains OE Sending Unit, EVAP System, and Filler Neck
• Billet 6061 Aluminum Construction; Black Anodized Finish; CNC Machined and Built in the USA; Sold as a Kit

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
