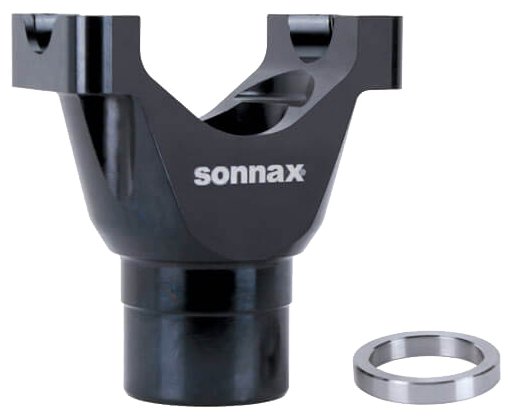

Pinion Yoke Ford 9 in., For 1330-Series U-Joints [28-Spline]

Name: Pinion Yoke Ford 9 in., For 1330-Series U-Joints [28-Spline]
Brand: SONNAX
SKU: 852-T9-28-1330FD
Price: 161.89 USD
Availability: InStock

^$161⁸⁹

Ships on 09/16/2026

Lowest Price Guarantee

Ford 9 in.

Pinion Yoke

Ford 9 in.

For 1330-Series U-Joints

Counter Bore

28-Spline

4.100 in. Height

Billet Chromoly

Includes:

(1) Carrier Bearing Spacer

T9-28-1330FD Features:
- Compatible with factory and aftermarket differentials
- Fits both standard (small bearing) and Daytona (large bearing) carriers
- Compatible with aftermarket speed pickup reluctors
- The complete half-moon U-joint ears are billet material for added strength
- Perfectly cradles the U-joint to eliminate stress and potentially premature failure
Notes:
- The included spacer is used only in standard (small) bearing carriers - If you have a big bearing OE or a Daytona carrier, do NOT use the spacer
- When using the spacer, always install it behind the pinion nut (like a washer) - It is NOT intended to be installed between the yoke and bearing

High-Strength Reliable Pinion Yokes

Sonnax Pinion Yokes are the perfect upgrade over a factory-style driveshaft-to-differential pinion yoke, providing superior strength and durability to resist stress typically found on high-torque applications. These pinion yokes are suitable for the street to drag strip, on-road, off-road, and everything in between.

Part TypeDrive Shaft Pinion Yoke

Product LineSonnax Pinion Yokes

BrandSONNAX

Package Height3.0

Package Width4.6

Package Length5.3

Weight2.73 PG

Part CategoryReplacement Parts

Bearing Caps IncludedNo

Differential Case Design TypeFord 9

Yoke MaterialBillet Chromoly

Universal Joint Style1330
